994159 - Gravely Z-Stance 48" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Lift - 48" and 52" Parts Diagram

Z-Stance 48" Stand-On Mower, Kawasaki FS

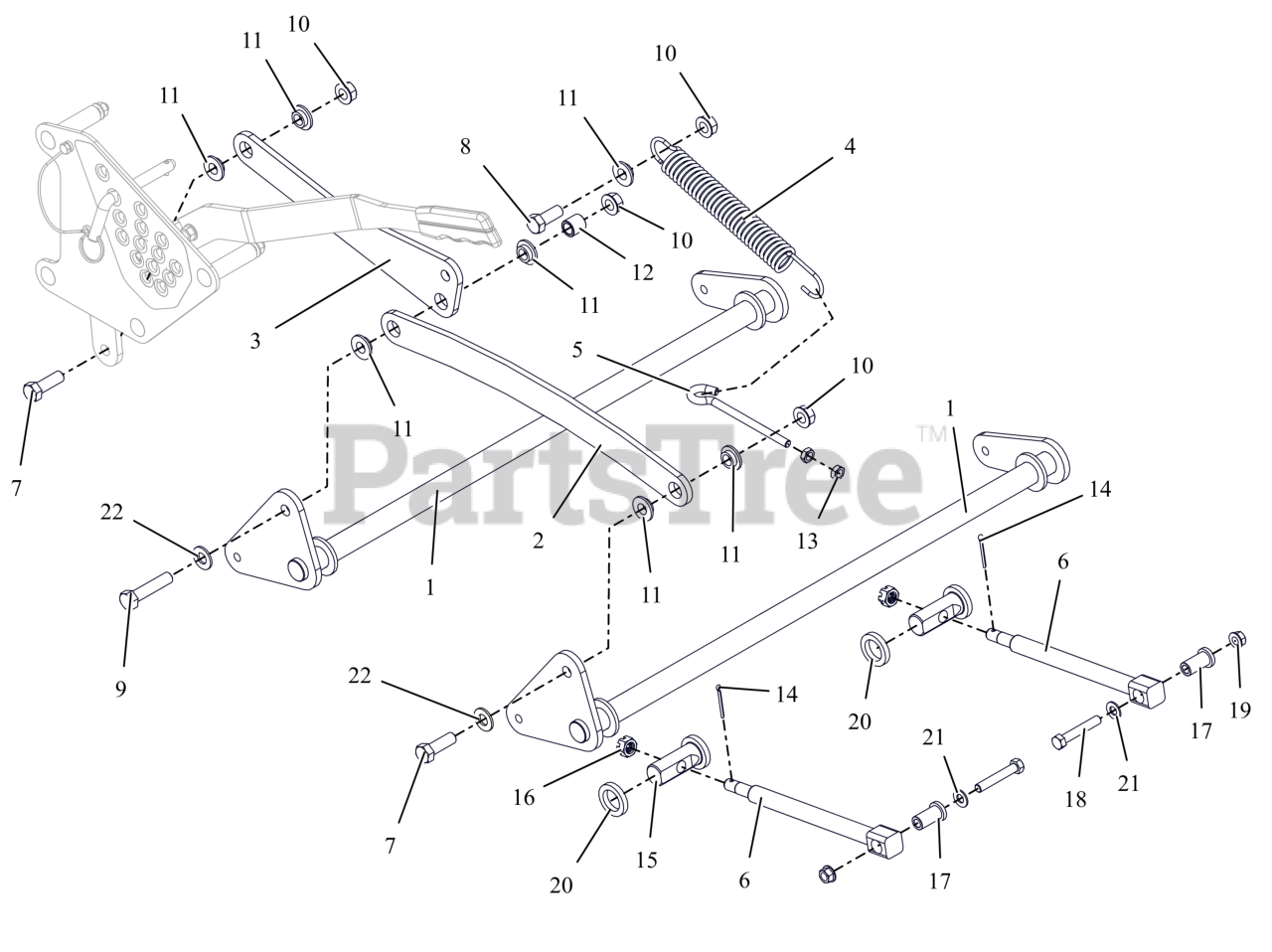

Deck Lift - 48" and 52" Parts Diagram

  • Title

1

Gravely 09499251

WLDMT-48-52"DECK LFT SHFT(BLK)

$

$

Not available

2

Gravely 09679251

LINK-48-52"DCK LFT CNCTNG(BLK)

$

$

Not available

3

Gravely 09499351

PLT-DECK HEIGHT MECHANISM(BLK)

$

$

Not available

4

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 20+

0

5

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

In Stock, only 1 left!

0

6

Gravely 05126700

DRAG,LINK-HD

$17.99

$

In Stock, only 1 left!

0

7

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

8

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.49

$

In Stock, Qty 9

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

11

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

12

Gravely 05501104

BSHG, SLV .510 X .751 X .750

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, only 4 left!

0

14

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 10

0

15

Gravely 05264200

PIN, DECK LIFT

$10.99

$

In Stock, only 3 left!

0

16

Gravely 06505000

NUT-SL .50-13

$3.99

$

In Stock, only 1 left!

0

17

Gravely 09158400

SPCR, DRAG LINK

$11.99

$

Usually ships in 4-12 days

0

18

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06425600

WSHR-FL-STL 1.0X1.50X.25

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06401010

WSHR-FL-STL 0.406X0.812X0.065 UNPLATED

$

$

Currently unavailable

22

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0
