994160 - Gravely Z-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Rear Tires and Transaxles - 32" Parts Diagram

Z-Stance 32" Stand-On Mower, Kawasaki FS

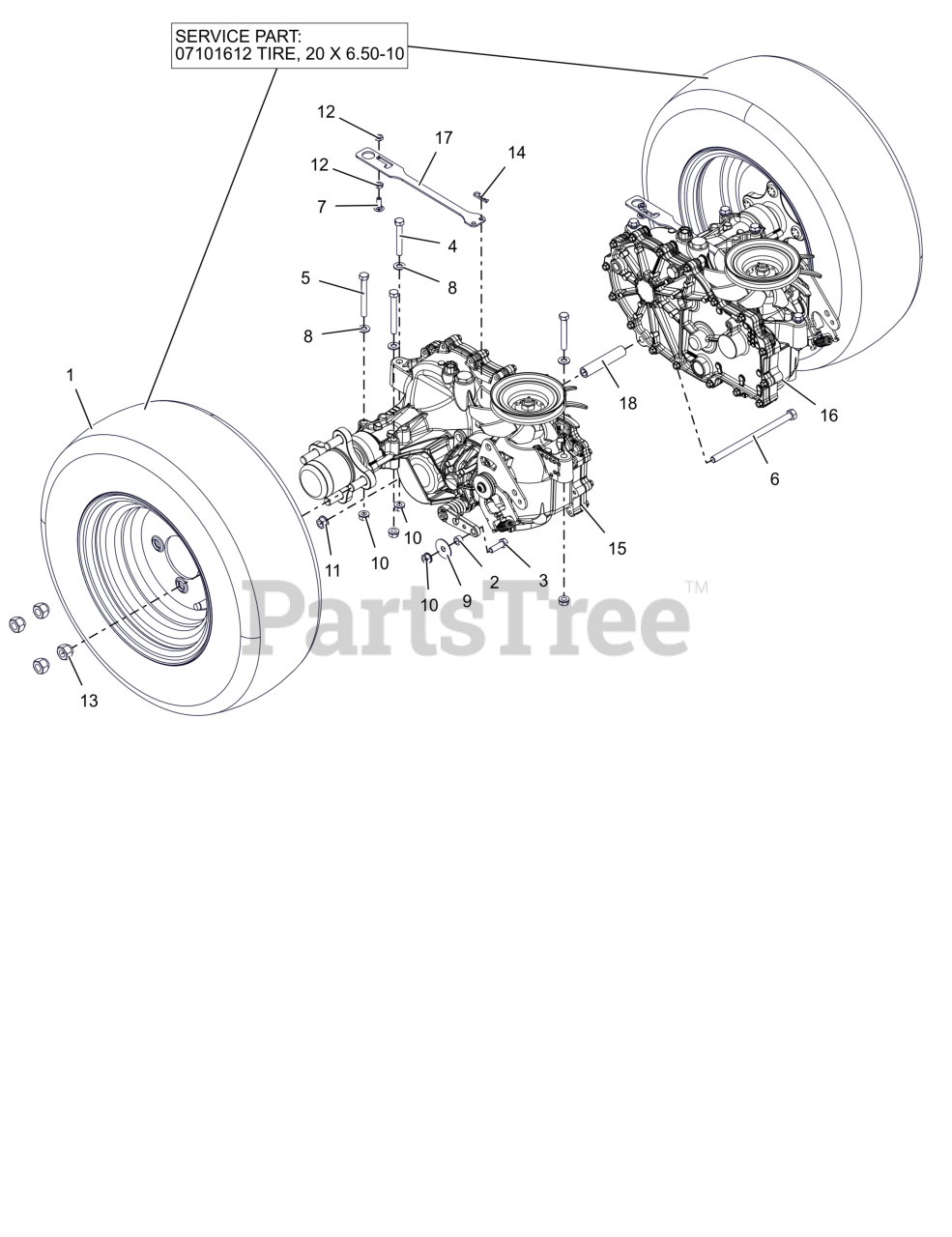

Rear Tires and Transaxles - 32" Parts Diagram

  • Title

1

Gravely 07101513

ASM- WHL/TIRE 20X6.50-

$

$

Not available

1

Gravely 07101612

TIRE, 20 X 6.50-10

Note: Service Part Component

$137.99

$

Usually ships in 4-12 days

0

2

Gravely 05501408

SPCR- SLV .344 X .500 X .283

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

4

Gravely 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.99

$

In Stock, Qty 6

0

6

Gravely 05902029

BLT, HEX .38-16X6.50 G5 ZCC

$7.99

$

Usually ships in 4-12 days

0

7

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06401105

WSHR, FLT .347X1.254X.048 ZCC

$2.99

$

In Stock, Qty 7

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500912

NUT-LK-CTR-JAM .250-20 GB ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 17

0

14

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09653900

TRANSAXLE- HG 32" RH

$1187.99

$

Usually ships in 4-12 days

0

16

Gravely 09654000

TRANSAXLE- HG 32" LH

$1228.99

$

Usually ships in 4-12 days

0

17

Gravely 09654151

LEVER-TRANSAXLE DMP VALVE(BLK)

$7.49

$

Usually ships in 4-12 days

0

18

Gravely 09654200

SPCR- 32" TRANS

$12.99

$

Usually ships in 4-12 days

0
