994160 - Gravely Z-Stance 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Tower and Dash Parts Diagram

Z-Stance 32" Stand-On Mower, Kawasaki FS

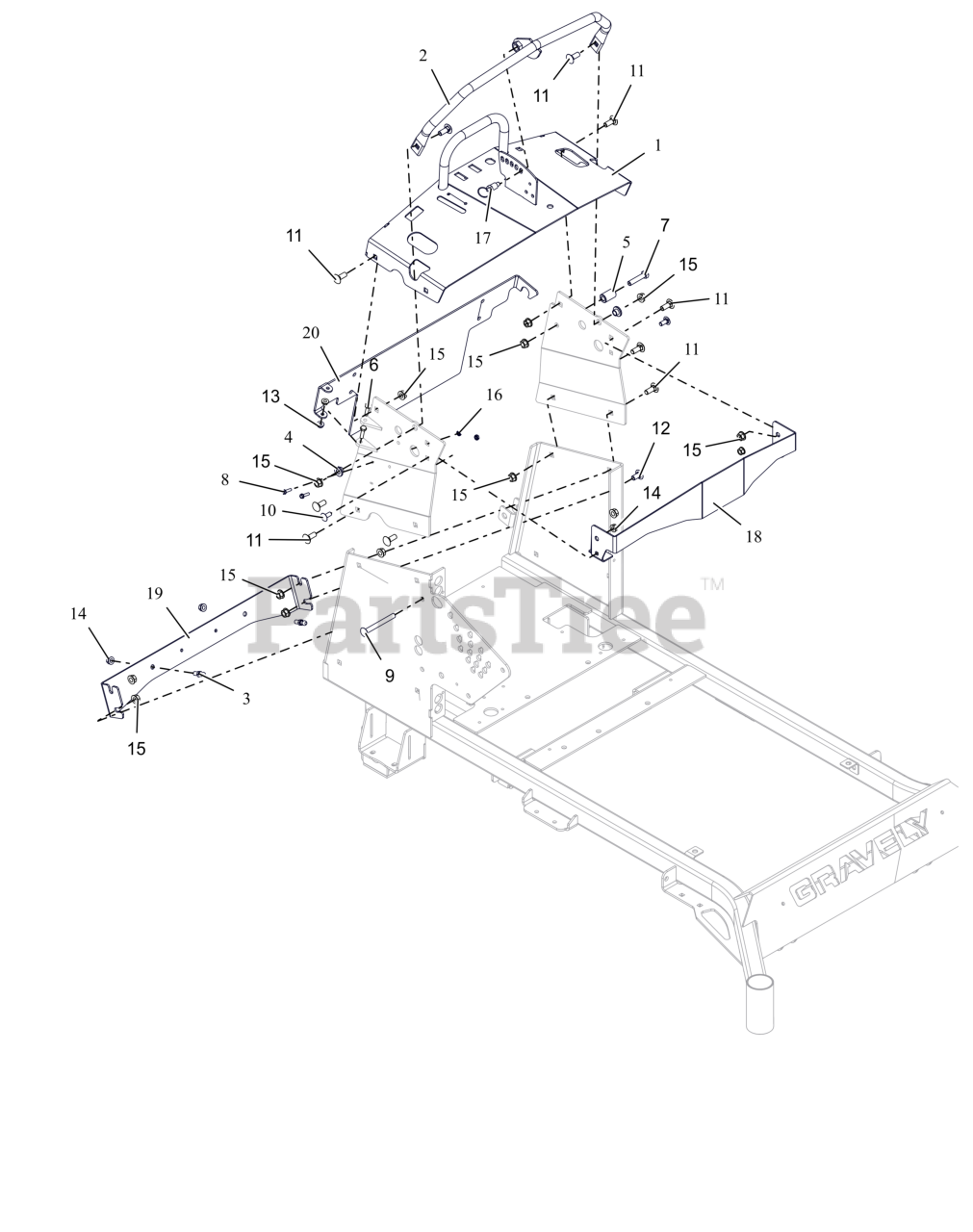

Tower and Dash Parts Diagram

  • Title

1

Gravely 59406800

CONSOLE WLDMT W/SAFETY DECALS

$369.99

$

Usually ships in 4-12 days

0

2

Gravely 09488551

WLDMT- SPEED CONTROL BAR (BLK)

$87.99

$

Usually ships in 4-12 days

0

3

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

4

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$5.49

$

In Stock, Qty 6

0

6

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.99

$

In Stock, Qty 8

0

7

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.99

$

In Stock, only 3 left!

0

8

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, only 4 left!

0

9

Gravely 06200238

BLT,RHSSN .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, only 3 left!

0

12

Gravely 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500934

NUT-KEPS 10-24

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 8

0

18

Gravely 09655251

PLATE- DASH ACCENT (BLACK)

$40.99

$

Usually ships in 4-12 days

0

19

Gravely 09655451

BRKT- DAMPER MOUNT (BLACK)

$64.99

$

Usually ships in 4-12 days

0

20

Gravely 59406900

OPERATOR PAD MTG BRKT W/SAFETY

$83.99

$

Usually ships in 4-12 days

0
