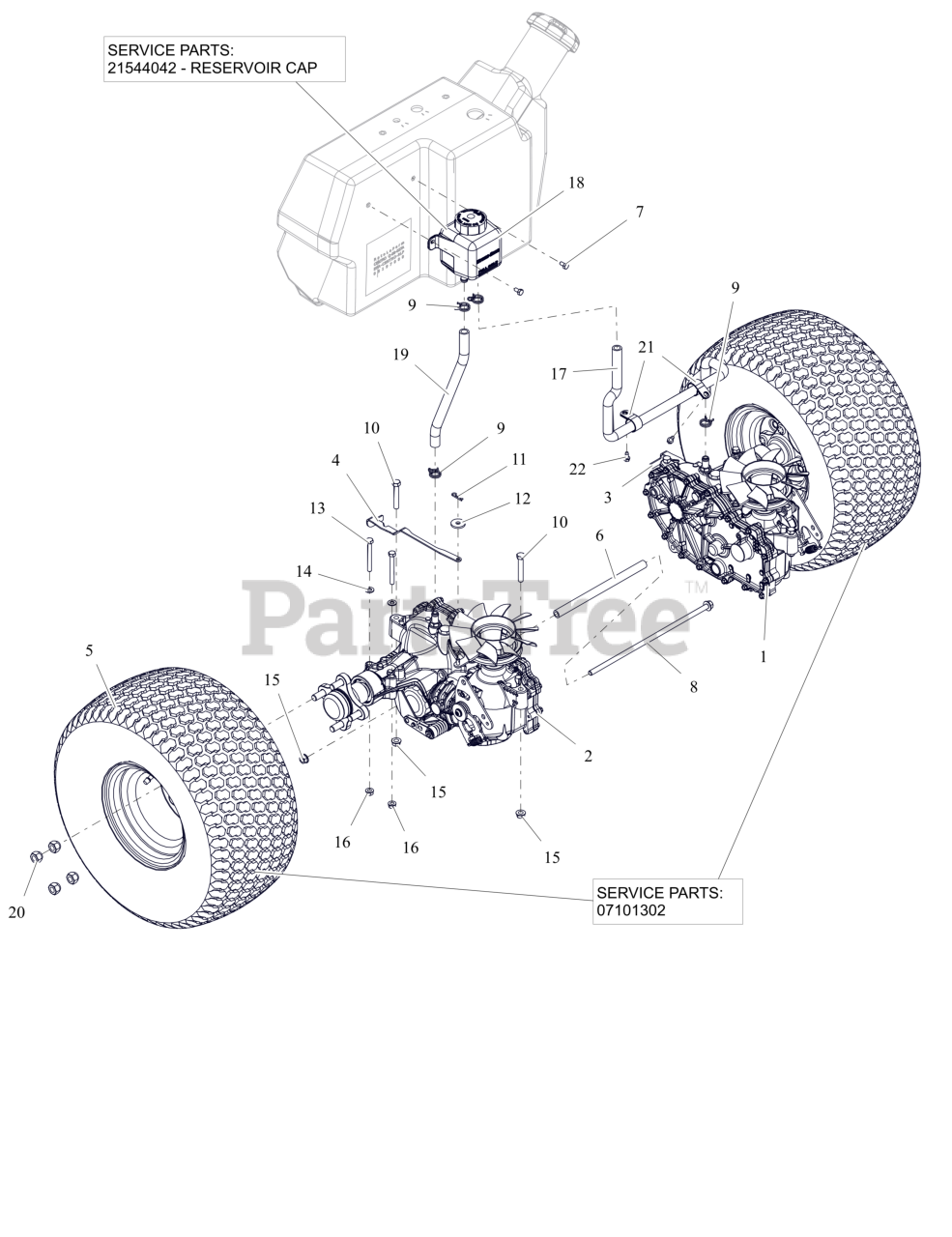

994161 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 002000 & Above) Rear Tires and Transaxles Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

Rear Tires and Transaxles Parts Diagram

  • Title

1

Gravely 09159500

TRANSAXLE- ZT3400 - LH

$1246.99

$

Usually ships in 4-12 days

0

2

Gravely 09159600

TRANSAXLE- ZT3400 - RH

$1187.99

$

Usually ships in 4-12 days

0

3

Gravely 05192951

BRKT, HYDRO DUMP - LEFT

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 05193051

BRKT, HYDRO DUMP - RIGHT

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 07101321

ASSM TIRE/WHEEL 20 X 10.50 - 8

$227.99

$

Usually ships in 4-12 days

0

5

Gravely 07101302

TIRE, 20 X 10.5-8 4 PLY RADIAL

Note: Component Service Part

$217.99

$

Usually ships in 4-12 days

0

6

Gravely 05198600

SPCR,TRANSAXLE

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, only 3 left!

0

8

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$14.99

$

In Stock, only 3 left!

0

9

Gravely 06900634

3/4 WIRE HOSE CLMP ZC

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

11

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, Qty 15

0

13

Gravely 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

14

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05193700

HOSE, PROSTANCE-OVERFLOW LEFT

$35.99

$

Usually ships in 4-12 days

0

18

Gravely 04894600

TANK, HYDRO OVERFLOW 700 ML

$35.99

$

In Stock, only 2 left!

0

18

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: Component Service Part

$24.99

$

Usually ships in 4-12 days

0

19

Gravely 05193800

HOSE, PROSTANCE-OVERFLOW RIGHT

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
