994164 - Gravely Pro-Stance 60" Stand-On Mower, Kawasaki FX (SN: 002000 & Above) Drive Belt and Clutch Parts Diagram

Pro-Stance 60" Stand-On Mower, Kawasaki FX

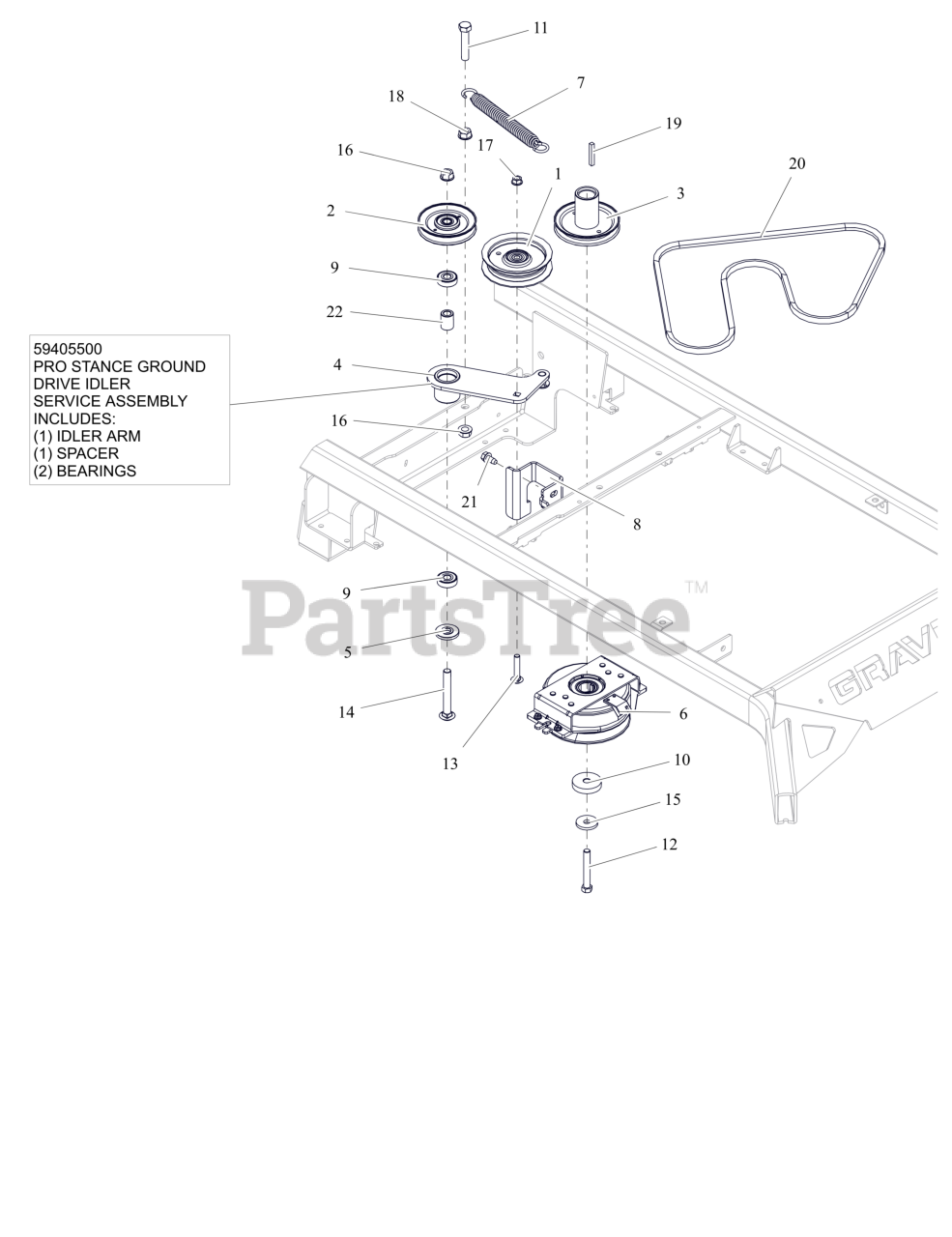

Drive Belt and Clutch Parts Diagram

  • Title

1

Gravely 07350100

IDLER, FLAT - 4.06" X .75"

$50.99

$

In Stock, Qty 20+

0

2

Gravely 07344400

SHV, .50"ID X 4.00"OD V-IDLER

$36.99

$

In Stock, only 1 left!

0

3

Gravely 07352551

SHEAVE- ENGINE 4.50 X 1.127 ID

$

$

Not available

4

Gravely 05195100

WELDMT, IDLER ARM

$

$

Not available

4

Gravely 59405500

GROUND DRIVE IDLER ASSEMBLY

Note: Component Service Assembly

$128.99

$

Usually ships in 4-12 days

0

5

Gravely 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 15

0

6

Gravely 05143700

CLUTCH, OGURA GT2.75-BBO1

$329.99

$

In Stock, only 1 left!

0

7

Gravely 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

8

Gravely 05254351

BRKT, CLUTCH STOP (BLACK)

$46.99

$

In Stock, only 2 left!

0

9

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

10

Gravely 05501222

SPACER, .450X2.00X.396

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 05901712

BLT, HEX .50-13X2.50 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

12

Gravely 05901819

BLT, HEX 0.4375-20X3 G8 ZCC NT

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 06200314

BLT, RHSN .38-16X2.00 G5 ZCC

$3.99

$

In Stock, Qty 9

0

14

Gravely 06200332

BTL,RHSN .500-13 X 3.75 G5 ZCC

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

16

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06500928

NUT, SPNLK-FLG .50-13 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07200727

V-BELT

$59.99

$

In Stock, only 3 left!

0

21

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

22

Gravely 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
