994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Dash and Switches - 32" Parts Diagram

Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

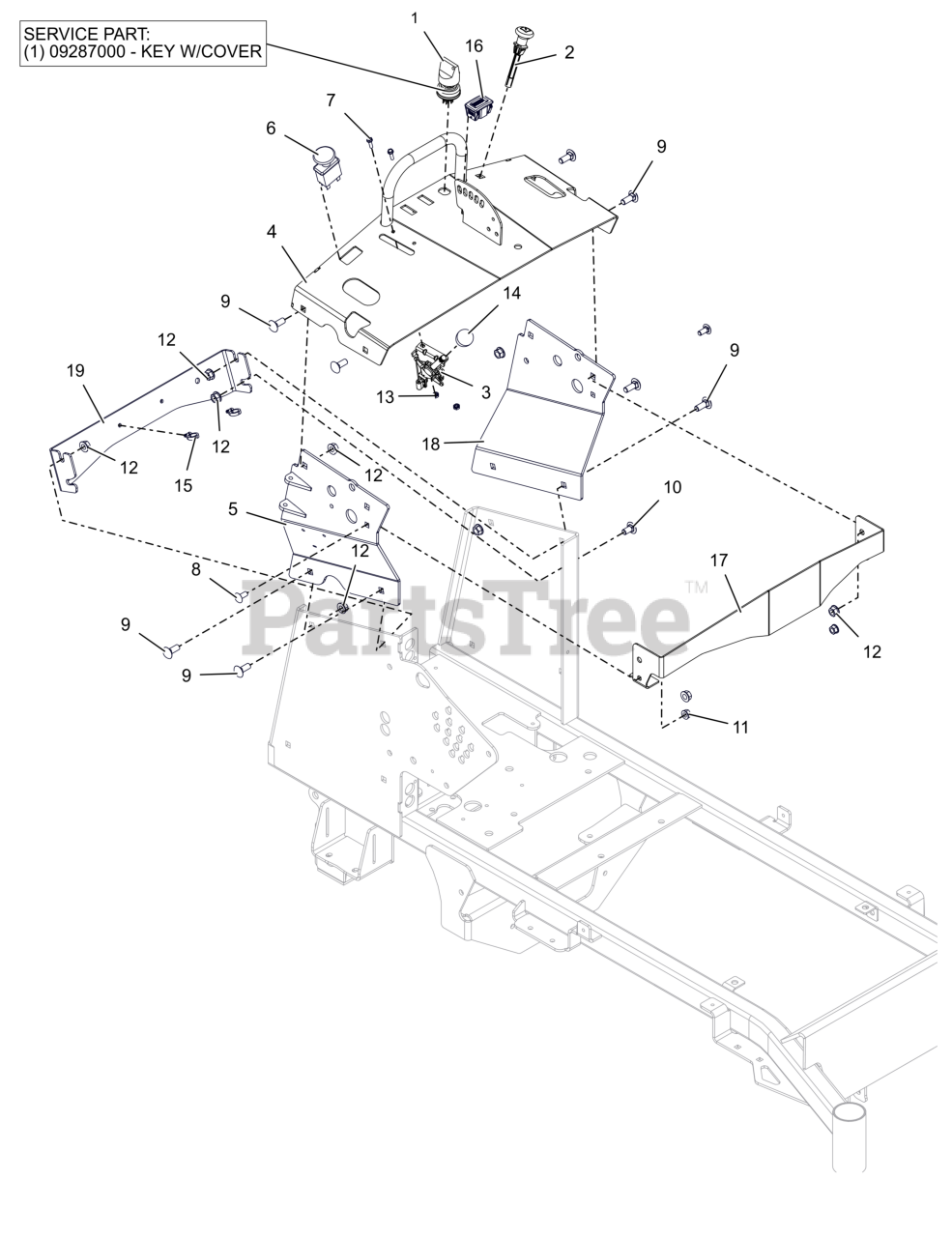

Dash and Switches - 32" Parts Diagram

  • Title

1

Ariens 04331600

SWITCH, IGNITION

$47.99

$

In Stock, Qty 20+

0

2

Ariens 06900408

CABLE, CHOKE (SNAP IN)

$41.99

$

In Stock, only 2 left!

0

3

Ariens 06900717

CABLE, PRO STANCE - CONTROL 43.00"

$46.99

$

In Stock, Qty 6

0

4

09488459

CONSOLE

$

$

Not available

5

09489259

WLDMT, 32" TOWER RH SUPPORT (ORANGE)

$

$

Not available

6

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

7

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 16

0

9

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06500934

NUT, KEPS #10-24 ZCC

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07500132

KNOB-CONTROL-BLACK .38-16X.50

$12.99

$

In Stock, Qty 16

0

15

07500515

CLIP, PUSH-IN X-MAS TREE CABLE

$

$

Not available

16

Ariens 09497400

METER, HOUR

$25.99

$

In Stock, Qty 20+

0

17

09655251

PLATE, DASH ACCENT (BLACK)

$

$

Not available

18

09679759

SUPPORT, 32" TOWER LH (ORANGE)

$

$

Not available

19

09680751

BRKT, DAMPER MOUNT (BLACK)

$

$

Not available
