994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Deck, Belts, Blades and Spindles - 32" Parts Diagram
Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

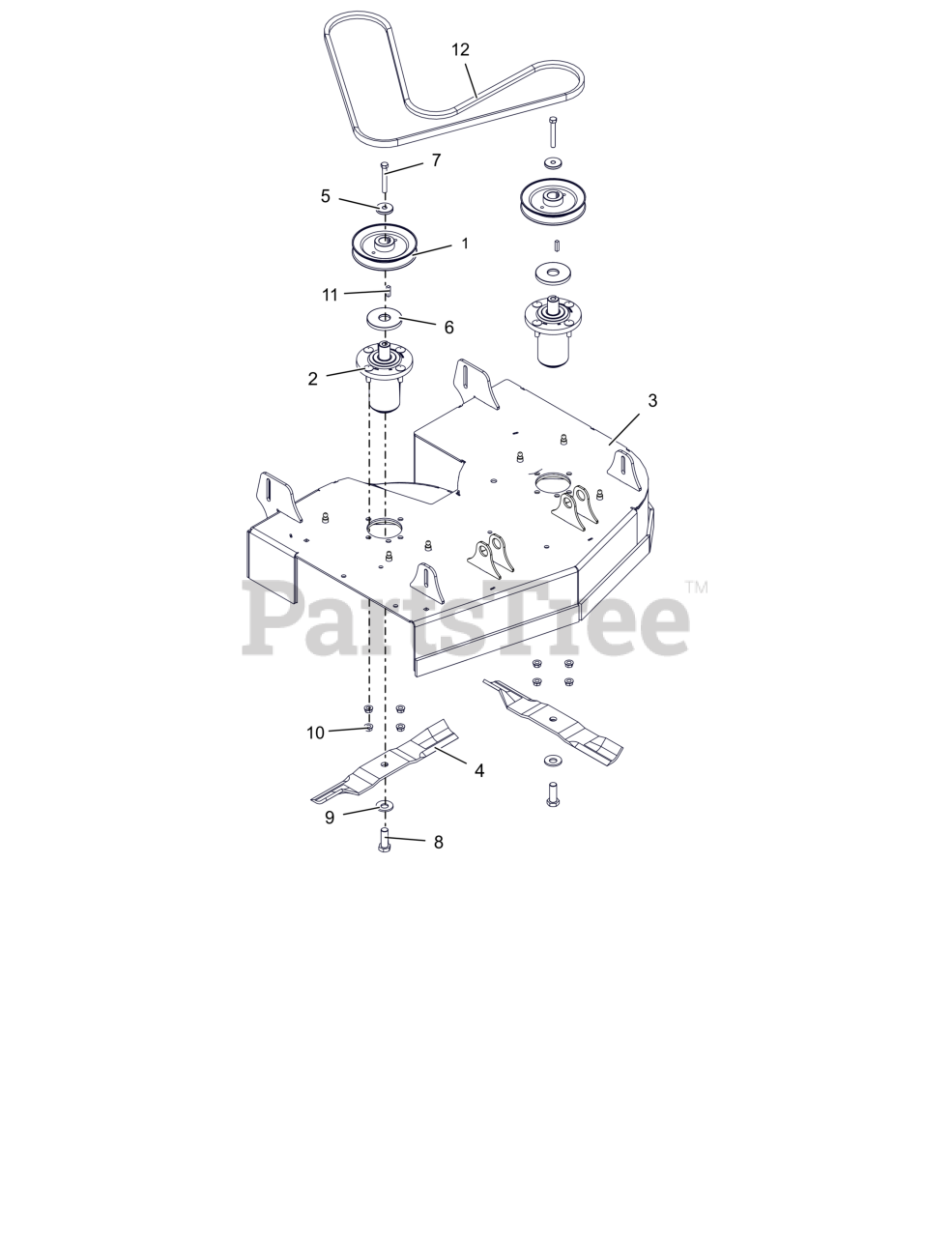

Deck, Belts, Blades and Spindles - 32" Parts Diagram
1
07356000
PULLEY, V - 1.000 ID X 5.750 OD
$
$
Not available
2
30263700
ASM, ALUM SPINDLE
$
$
Not available
3
59410600
WLDMT, DECK 32" (ORANGE)
$
$
Not available
Ariens 00450200
BLADE, 16.19" MOWER (HI-LIFT)
$29.99
$
In Stock, Qty 20+
Ariens 04530500
RETAINER, SHEAVE
$9.49
$
In Stock, Qty 20+
Ariens 04976400
SPCR- SHEAVE SPINDLE
$6.49
$
Usually ships in 4-12 days
Ariens 05901813
BLT, HEX .38-16X2.75 G8 ZCC
$1.99
$
In Stock, Qty 20+
Ariens 05901822
BLT, HEX .62-18X1.75 G8 ZCC
$3.99
$
In Stock, Qty 20+
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$5.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06611200
KEY, SQ .25X.25X1.00 RC 40-50
$3.49
$
In Stock, Qty 7
12
07200936
V-BELT, HB SECTION 80.04
$
$
Not available
