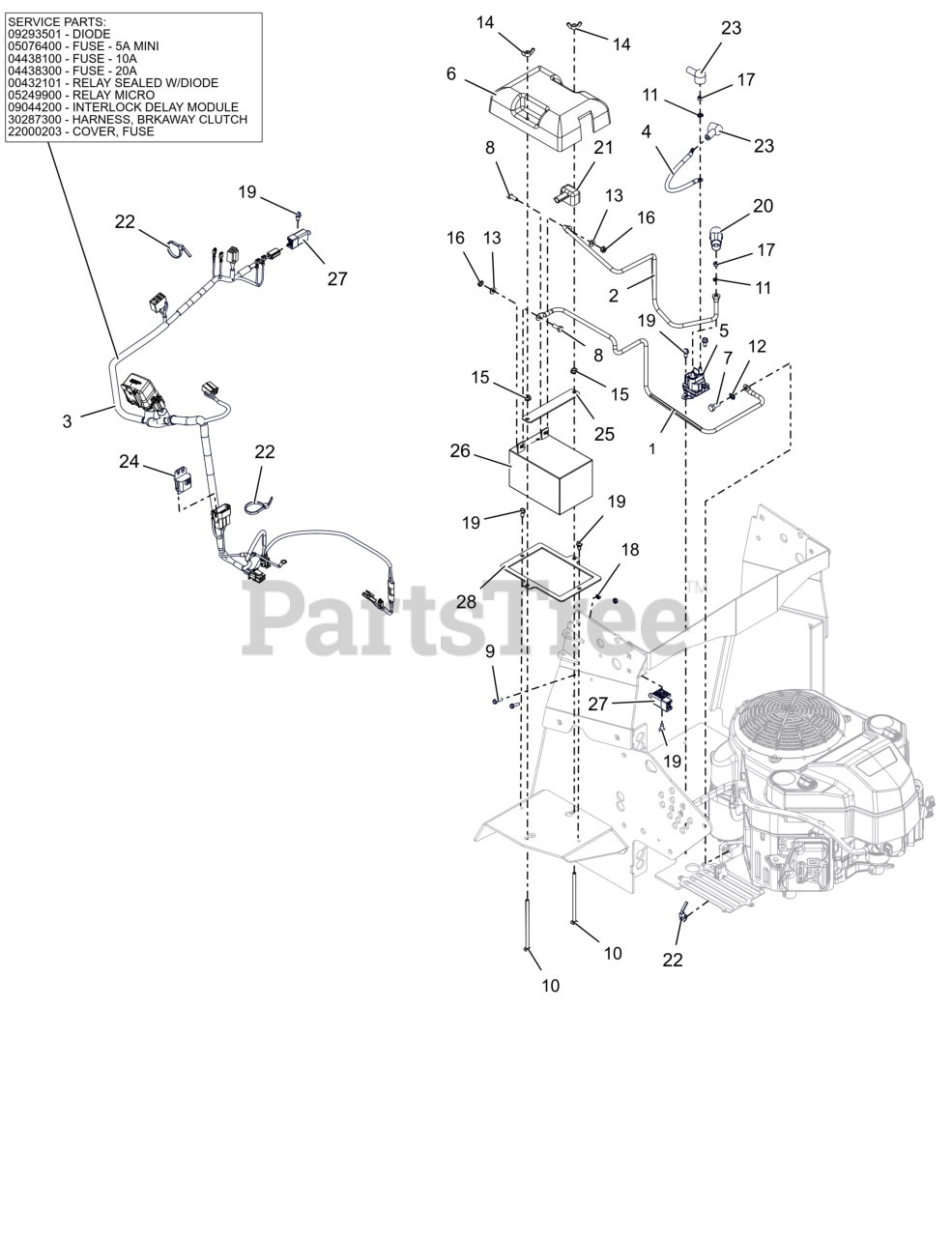

994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Electrical Parts Diagram

Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

Electrical Parts Diagram

  • Title

1

03288200

CABLE, NEGATIVE BATTERY

$

$

Not available

2

09449300

CABLE, RED- .31X30.00 (6) X .25

$

$

Not available

3

30287200

HARNESS- WIRING

$

$

Not available

3

Ariens 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$13.99

$

In Stock, Qty 20+

0

3

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$5.49

$

Usually ships in 4-12 days

0

3

Ariens 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$5.49

$

In Stock, only 2 left!

0

3

Ariens 00432101

RELAY,SEALED W/DIODE

Note: Component Service Part

$25.99

$

In Stock, Qty 20+

0

3

Ariens 05249900

RELAY,SPNO,SEALED,ISO280,RESIS

Note: Component Service Part

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 09044200

MODULE,INTERLOCK,DELAY, 1801

Note: Component Service Part

$73.99

$

In Stock, only 1 left!

0

3

30287300

HARNESS, BREAKAWAY CLUTCH

Note: Component Service Part

$

$

Not available

3

Ariens 22000203

COVER, FUSE

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

4

Ariens 03286000

CABLE-POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 2 left!

0

5

Ariens 04781700

SOLENOID, STARTER (SEALED)

$46.99

$

In Stock, Qty 20+

0

6

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 1 left!

0

7

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 14

0

9

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 20+

0

10

06200514

BLT- RHSN .25-20X5.0 ZCC

$

$

Not available

11

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

In Stock, only 1 left!

0

12

Ariens 06300125

WSHR,LK-EXT .326X.599X.031 ZCC

$0.99

$

In Stock, Qty 9

0

13

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

14

Ariens 06500805

NUT- LK-WING .25-20 ZCC

$5.49

$

In Stock, Qty 13

0

15

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

16

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 06500925

NUT-STD M6-1.0 ZCC

$1.49

$

Usually ships in 4-12 days

0

18

Ariens 06500934

NUT, KEPS #10-24 ZCC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07500401

BOOT, .65ID POS

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

22

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0

24

Ariens 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 1 left!

0

25

09130751

BAR, BATTERY STRAP (BLACK)

$

$

Not available

26

Ariens 09425500

BATTERY, 12V 12AH -190CCA

$137.99

$

In Stock, Qty 5

0

27

Ariens 09675800

SWITCH-BRAKE NO/NO-POST & HOLE

$17.99

$

In Stock, only 2 left!

0

28

30282559

HOLDER- BATTERY

$

$

Not available
