994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Engine - Kawasaki FS600 Parts Diagram

Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

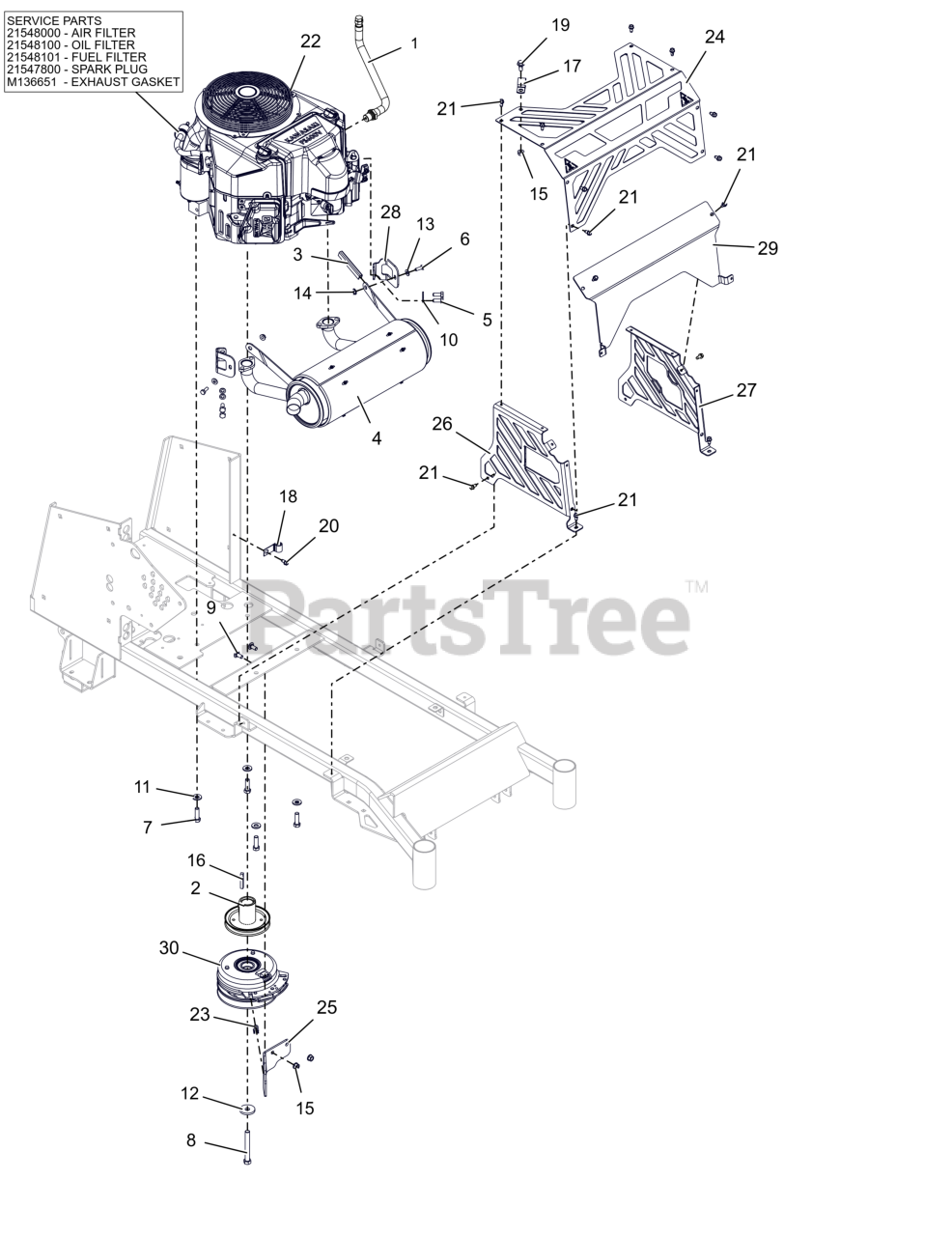

Engine - Kawasaki FS600 Parts Diagram

  • Title

1

Ariens 07001730

HOSE, OIL DRAIN

$22.99

$

In Stock, only 2 left!

0

2

07348600

SHEAVE, ENGINE 4.50 X 1.127

$

$

Not available

3

Ariens 00918200

STRIP, COWL

$6.99

$

Usually ships in 4-12 days

0

4

04375200

EXHAUST, KAWASAKI FS

$

$

Not available

5

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.99

$

In Stock, Qty 20+

0

8

Ariens 05902124

BLT, HEX 0.4375-20X3.5 G8 ZCC NT

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

12

Ariens 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, only 3 left!

0

13

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06601800

KEY-STR .25X1.75X.25

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 06900036

CLAMP, CUSHIONED STEEL .75

$6.99

$

In Stock, only 2 left!

0

18

Ariens 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 07001820

BLT- SERHFWH .312-18X.75 ZCC

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07400210

SCR-TAP .25X.50 HWH ZB500

$4.99

$

Usually ships in 4-12 days

0

22

Ariens 08200921

ENGINE, KAWASAKI FS600V

$

$

Not available

22

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

22

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$20.99

$

Usually ships in 2-5 days

0

22

Ariens 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$18.99

$

Usually ships in 4-12 days

0

22

Ariens 21536100

PLUG, SPARK

Note: Component Service Part

$11.99

$

In Stock, Qty 20+

0

22

Ariens M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: Component Service Part

$9.49

$

In Stock, Qty 16

0

23

Ariens 30145600

BSHG, CLUTCH

$2.99

$

Usually ships in 4-12 days

0

24

30282651

PANEL- MFLR GUARD-FRONT

$

$

Not available

25

30282759

BRKT- CLUTCH STOP

$

$

Not available

26

30286651

PANEL, MFLR GUARD,RS (BLACK)

$

$

Not available

27

30286751

PANEL, MFLR GUARD,LS (BLACK)

$

$

Not available

28

30287051

BRKT- MUFFLER MOUNT

$

$

Not available

29

30292851

BAFFLE, MFLR GUARD (BLACK)

$

$

Not available

30

30300300

CLUTCH, WARNER 5219-287

$

$

Not available
