994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Frame - 32" Parts Diagram
Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

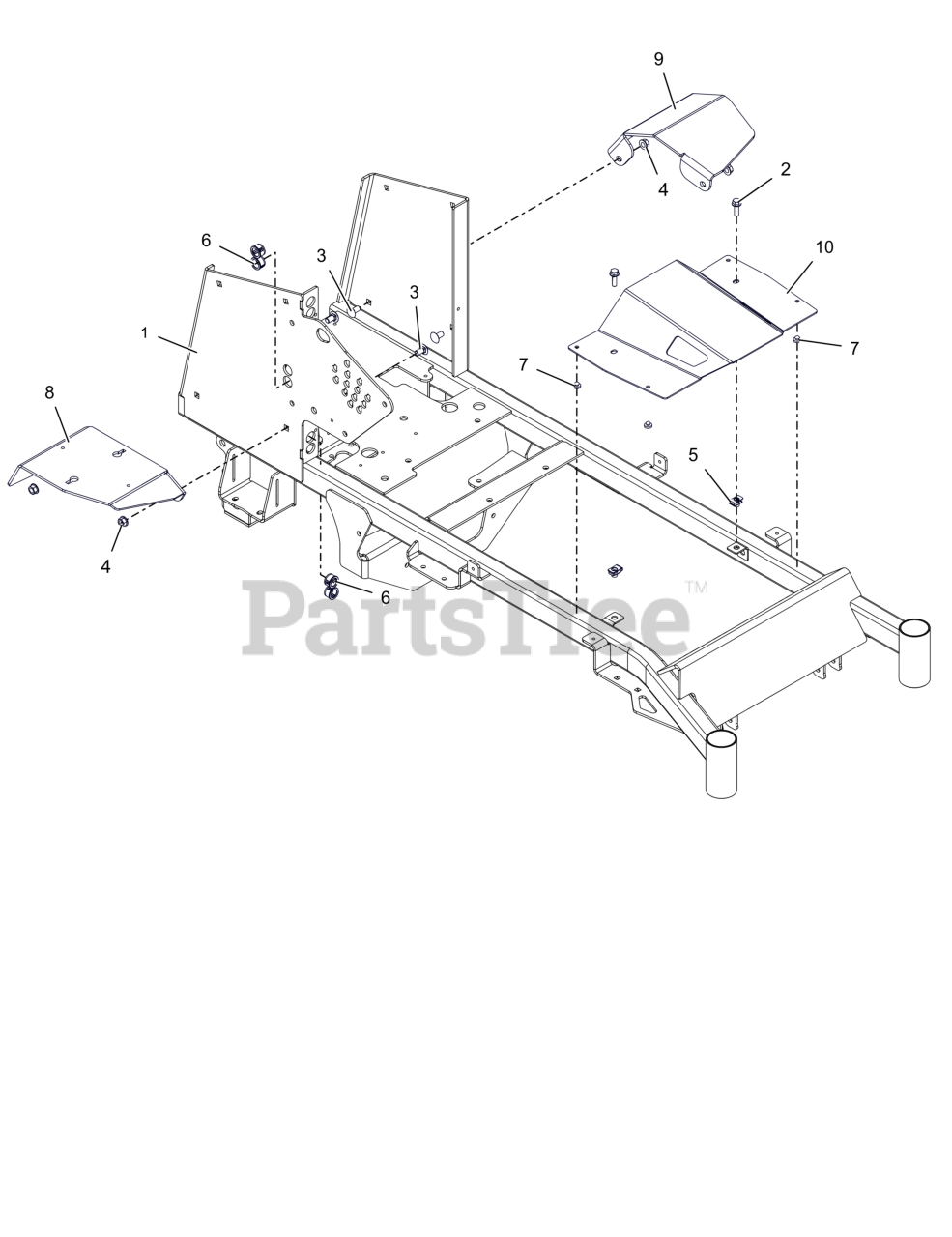

Frame - 32" Parts Diagram
1
30279100
WLDMT, RIDGELINE 32 FRAME (ORANGE)
$
$
Not available
2
05902228
BLT- HEX-FLG .31-18X1.00 ZB500
$
$
Not available
Ariens 06200336
BLT, RHSSN .38-16X.75 G5 ZCC
$2.99
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 07000829
NUT-CLIP RETAINER 5/16-18X.56
$2.99
$
In Stock, Qty 20+
Ariens 07500126
BUSH, PANEL SNAP .687X.875X.56
$3.99
$
Usually ships in 4-12 days
Ariens 07503100
BUMPER GROMMET
$3.99
$
In Stock, Qty 20+
8
30286159
FENDER- RH
$
$
Not available
9
30286259
FENDER- LH
$
$
Not available
10
30299759
COVER, Z-STANCE 32" BELT (ORANGE)
$
$
Not available
