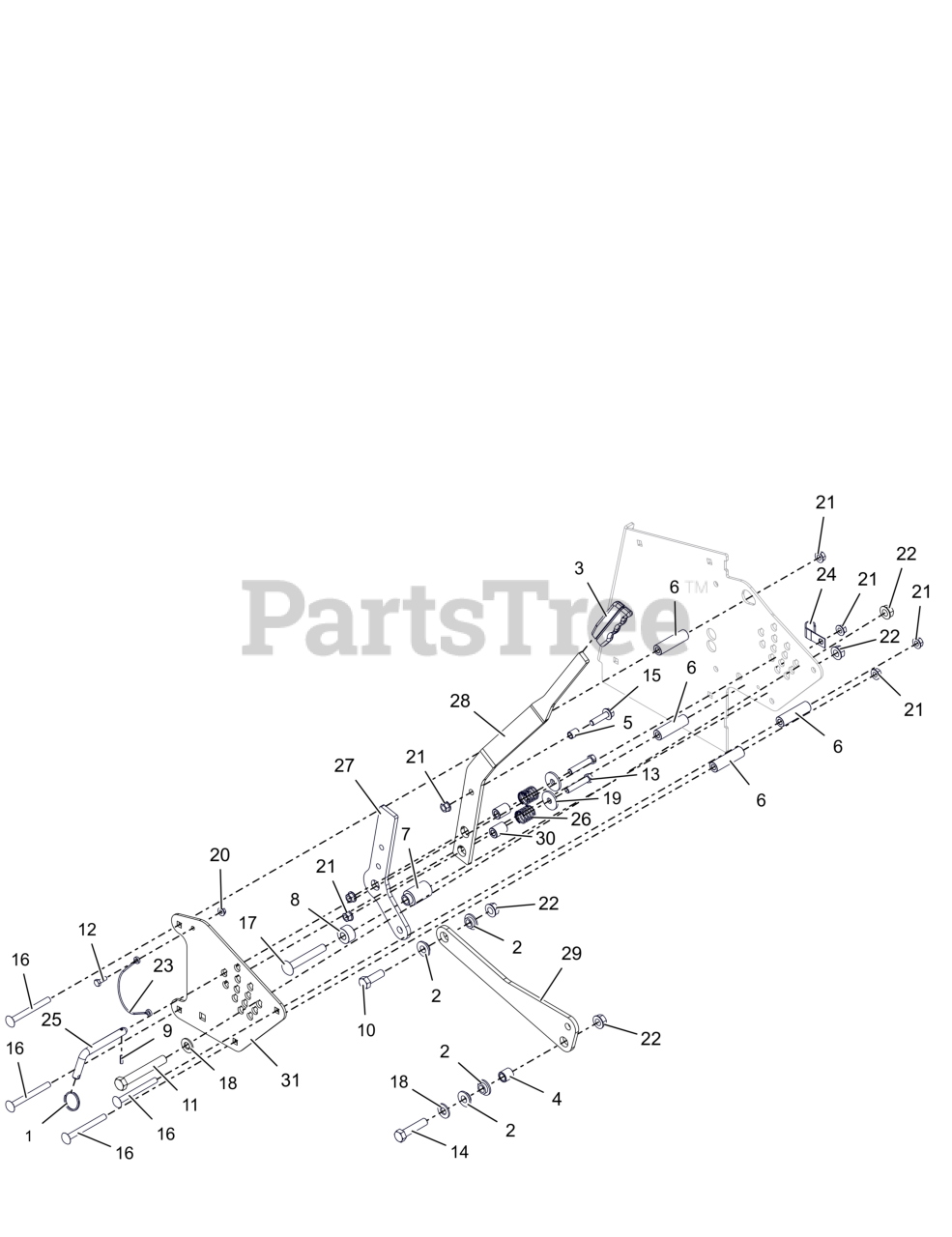

994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Height of Cut - 32" Parts Diagram

Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

Height of Cut - 32" Parts Diagram

  • Title

1

Ariens 00967057

RING, WIRE - .080 X 1.25

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 7

0

3

Ariens 05097200

GRIP, PARKING BRAKE (GREY)

$6.49

$

Usually ships in 4-12 days

0

4

Ariens 05501104

BSHG-SLV .510X.751X.750

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 05501226

SPCR, SLV .385X.500X.652

$3.99

$

In Stock, only 2 left!

0

6

05501503

SPCR, .390" ID .750 OD X 2.646

$

$

Not available

7

05501507

BSHG, SLV 1.125 X 0.515 X 2.013

$

$

Not available

8

05501630

SPCR SLV .515 X 1.125 X .634

$

$

Not available

9

Ariens 05806200

PIN-ROLL .188X.63

$6.49

$

Usually ships in 4-12 days

0

10

Ariens 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

11

Ariens 05901703

BLT,HEX .50-13X3.75 G5 ZCC

$6.49

$

In Stock, only 2 left!

0

12

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 14

0

13

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

14

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

15

05902231

BLT,HEX-FLG .38-16X1.50 G5 ZCC

$

$

Not available

16

06200337

BLT,RHSSN .375-16 X 3.75 G5 ZCC

$

$

Not available

17

Ariens 06200340

BLT, RHSSN .50-13X3.50 G5 ZCC

$6.49

$

In Stock, Qty 5

0

18

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 20+

0

20

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

21

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06900317

CABLE, 12.0 LANYARD, NYLON

$3.99

$

In Stock, only 2 left!

0

24

Ariens 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

25

07500517

PIN, HOC SELECTOR/PLTFRM LOCK

$

$

Not available

26

08300727

SPRG, COMPRESSION

$

$

Not available

27

09496651

PLATE, HANDLE BASE (BLACK)

$

$

Not available

28

09497151

HANDLE, DECK LIFT UPPER (BLACK)

$

$

Not available

29

09499351

PLATE, DECK HEIGHT MECHANISM (BLACK)

$

$

Not available

30

09655700

SPCR, .750 OD X .390 ID X 1.063

$

$

Not available

31

30292259

PLATE, HOC PIN LOCATOR (ORANGE)

$

$

Not available
