994166 - Ariens Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS (SN: 200000 & Above) Transaxle Drive - 32" Parts Diagram

Ridgeline 32" Stand-On Mower, 18.5hp Kawasaki FS

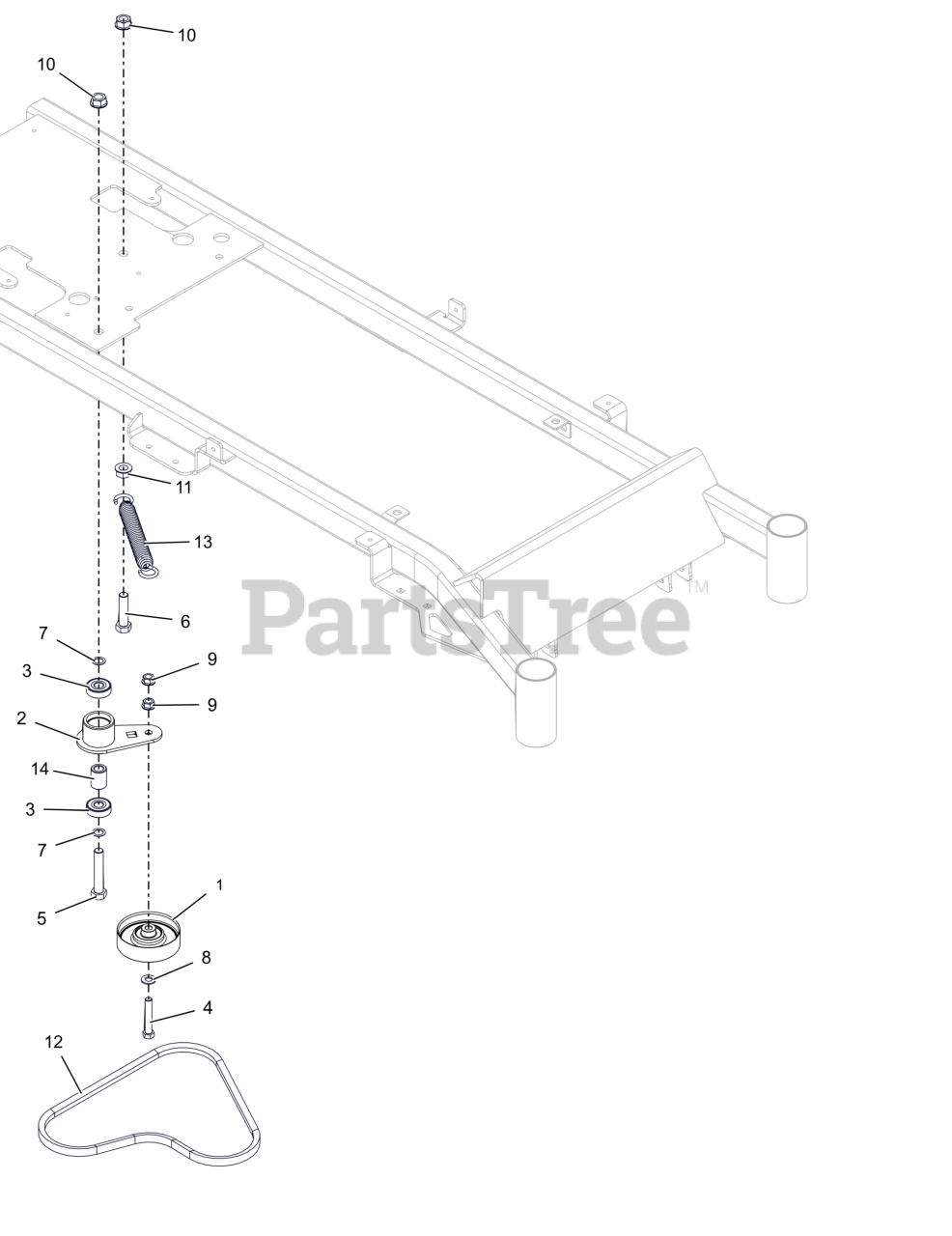

Transaxle Drive - 32" Parts Diagram

  • Title

1

Ariens 07341100

IDLER- FLAT 3.5" NO FLANGES

$128.99

$

In Stock, only 2 left!

0

2

09487600

WLDMT, 32" IDLER ARM

$

$

Not available

3

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

4

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

5

Ariens 05901720

BLT,HEX .50-13X2.75 G5 ZCC

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 05901929

BLT, HEX .50-13X2.00 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

7

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500928

NUT, SPNLK-FLG .50-13 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

12

07200918

BELT, HA SECTION

$

$

Not available

13

Ariens 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

14

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
