994167 - Ariens Ridgeline 48" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Deck Lift Parts Diagram

Ridgeline 48" Stand-On Mower, 21.5hp Kawasaki FS

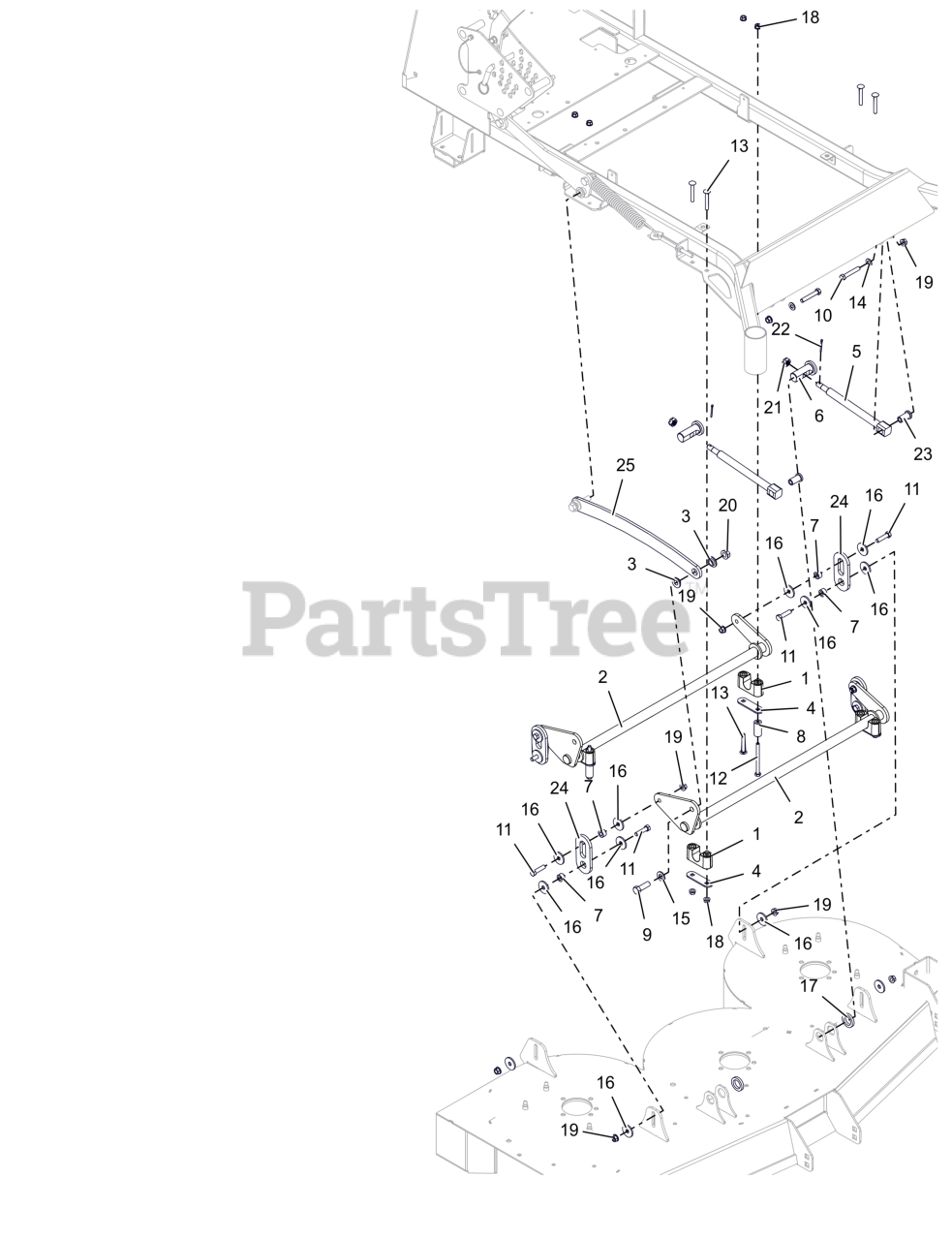

Deck Lift Parts Diagram

  • Title

1

Ariens 07500414

ASM-BUSHING, DECK LIFT

$25.99

$

In Stock, Qty 10

0

2

09499251

WLDMT, 48-52" DECK LIFT SHAFT (BLACK)

$

$

Not available

3

Ariens 03989100

BSHG-FLG .515X.750X.395X1.120

$3.99

$

In Stock, Qty 7

0

4

Ariens 04766551

PLATE, BEARING SUPPORT

$8.49

$

In Stock, Qty 9

0

5

Ariens 05126700

DRAG,LINK-HD

$21.99

$

In Stock, Qty 9

0

6

Ariens 05264200

PIN, DECK LIFT

$11.99

$

In Stock, Qty 11

0

7

05501506

SPCR, .390 ID X .750 OD X .438

$

$

Not available

8

05501508

SPCR, .328 ID X .750 OD X 1.622

$

$

Not available

9

Ariens 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

10

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 05901936

BLT, HEX .31-18X3.75 G5 ZCC

$3.49

$

In Stock, only 1 left!

0

13

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$4.99

$

In Stock, Qty 12

0

14

Ariens 06401010

WSHR, FLT .406X.812X.065 RAW

$1.49

$

Usually ships in 0 days

0

15

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 20+

0

17

Ariens 06425600

WSHR-FL-STL 1.0X1.50X.25

$6.49

$

In Stock, Qty 10

0

18

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06505000

NUT-SL .50-13

$3.99

$

In Stock, Qty 20+

0

22

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 6

0

23

Ariens 09158400

SPCR, DRAG LINK

$12.99

$

Usually ships in 4-12 days

0

24

09496851

PLATE, DECK HANGER (BLACK)

$

$

Not available

25

09679251

LINK, DECK 48-52" DECK LIFT CONNECTING(BLACK)

$

$

Not available
