994167 - Ariens Ridgeline 48" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Parking Brake Parts Diagram

Ridgeline 48" Stand-On Mower, 21.5hp Kawasaki FS

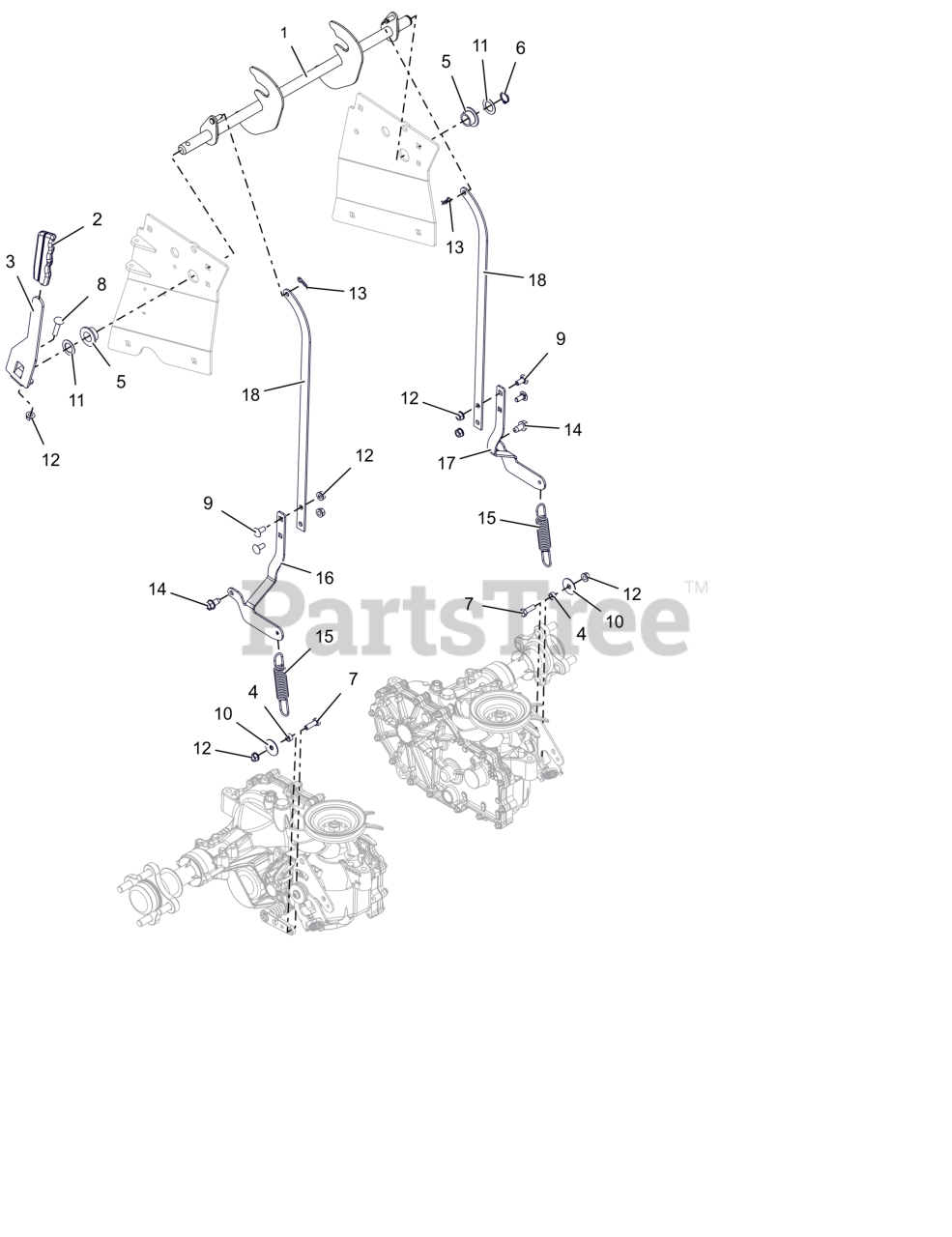

Parking Brake Parts Diagram

  • Title

1

09485600

WLDMT, 48-52" PARK BRAKE SHAFT

$

$

Not available

2

Ariens 05097200

GRIP, PARKING BRAKE (GREY)

$6.49

$

Usually ships in 4-12 days

0

3

Ariens 05259951

HANDLE, PARK BRAKE (BLACK)

$44.99

$

In Stock, only 1 left!

0

4

Ariens 05501323

BSHG-SLV .344 X .500 X .260

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 20+

0

6

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 2 left!

0

7

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 19

0

9

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 16

0

10

Ariens 06401105

WSHR, FLT .347X1.254X.048 ZCC

$2.99

$

In Stock, Qty 7

0

11

Ariens 06401136

WSHR, FLT .760X1.225X.032 ZCC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$15.99

$

In Stock, Qty 7

0

16

09485351

LINKAGE, PARK BRAKE LOWER RH (BLACK)

$

$

Not available

17

09485451

LINKAGE, PARK BRAKE LOWER LH (BLACK)

$

$

Not available

18

09485551

LINKAGE, PARKER BRAKE (BLACK)

$

$

Not available
