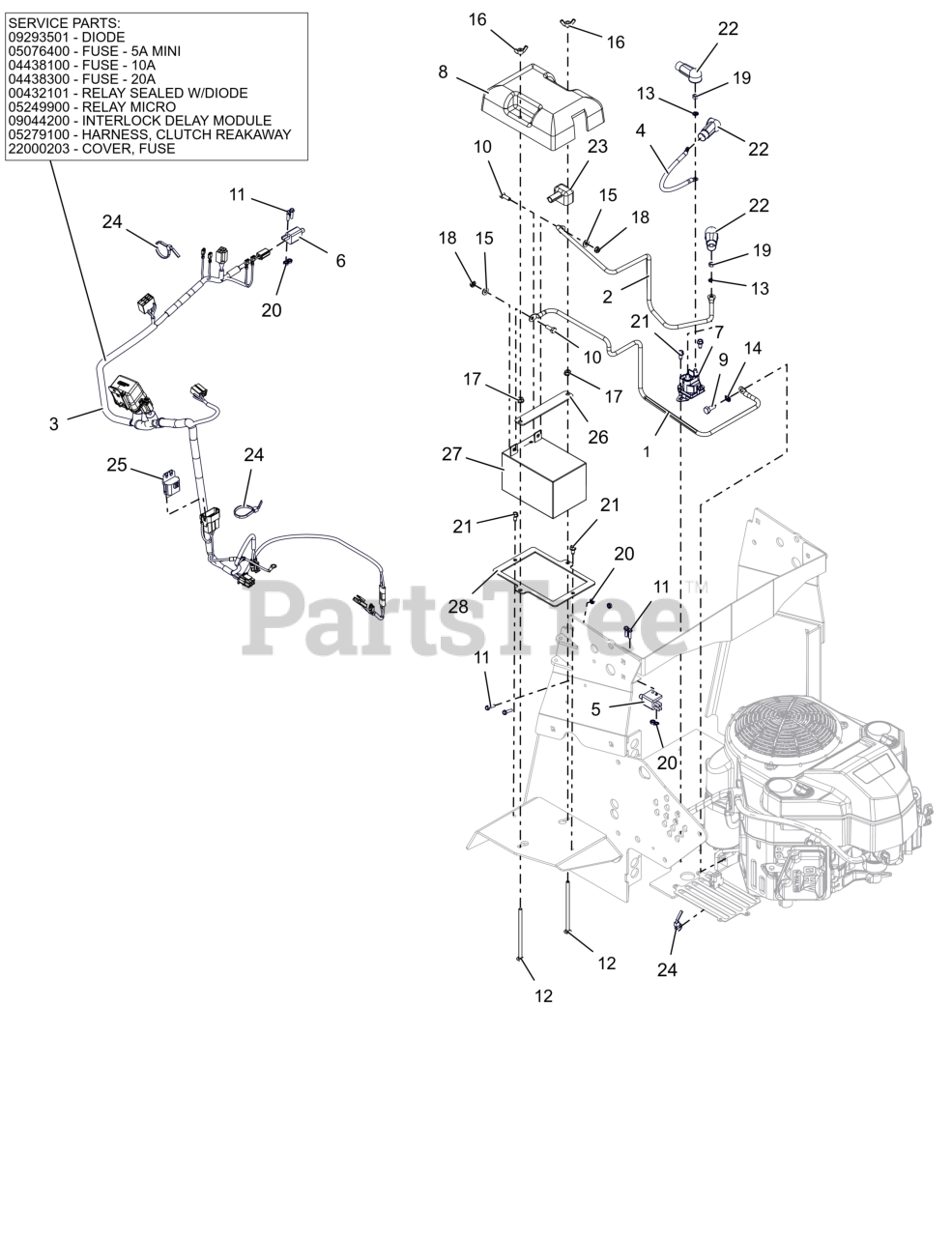

994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Electrical Parts Diagram

Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

Electrical Parts Diagram

  • Title

1

03288200

CABLE, NEGATIVE BATTERY

$

$

Not available

2

09449300

CABLE, RED- .31X30.00 (6) X .25

$

$

Not available

3

30287200

HARNESS- WIRING

$

$

Not available

4

Ariens 03286000

CABLE-POSITIVE BATTERY 9.00"

$9.99

$

In Stock, only 2 left!

0

5

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

6

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 20+

0

7

Ariens 04781700

SOLENOID, STARTER (SEALED)

$46.99

$

In Stock, Qty 20+

0

8

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 1 left!

0

9

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 14

0

11

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 20+

0

12

06200514

BLT- RHSN .25-20X5.0 ZCC

$

$

Not available

13

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

In Stock, only 1 left!

0

14

Ariens 06300125

WSHR,LK-EXT .326X.599X.031 ZCC

$0.99

$

In Stock, Qty 9

0

15

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

16

Ariens 06500805

NUT- LK-WING .25-20 ZCC

$5.49

$

In Stock, Qty 13

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

18

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 06500925

NUT-STD M6-1.0 ZCC

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 06500934

NUT, KEPS #10-24 ZCC

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07500401

BOOT, .65ID POS

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

24

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

25

Ariens 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 1 left!

0

26

09130751

BAR, BATTERY STRAP (BLACK)

$

$

Not available

27

Ariens 09425500

BATTERY, 12V 12AH -190CCA

$137.99

$

In Stock, Qty 5

0

28

30282559

HOLDER- BATTERY

$

$

Not available
