994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Fuel System Parts Diagram

Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

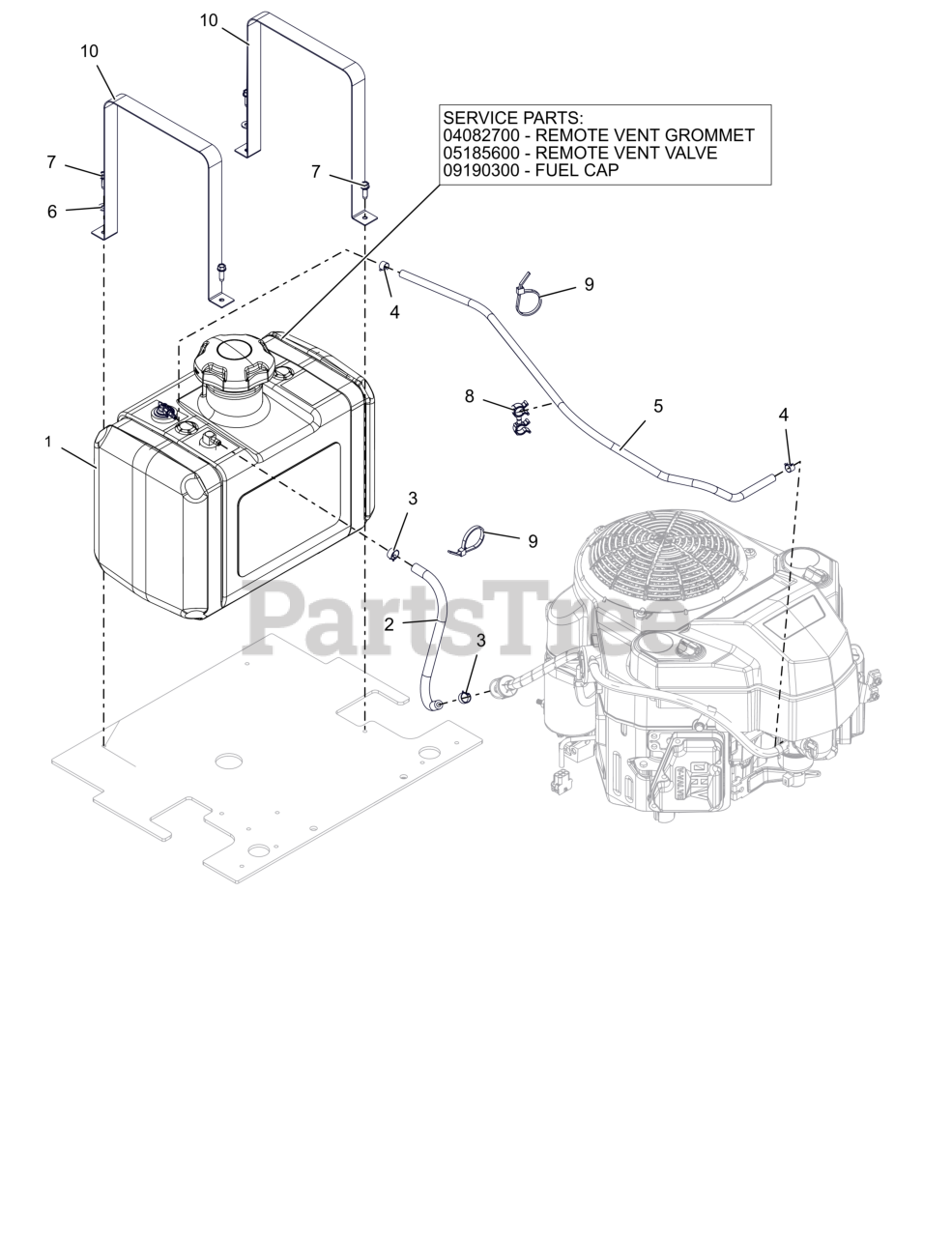

Fuel System Parts Diagram

  • Title

1

09658000

ASM, FUEL TANK 5-GAL (SEMCO)

$

$

Not available

1

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Ariens 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$18.99

$

In Stock, only 3 left!

0

1

Ariens 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$35.99

$

In Stock, Qty 20+

0

2

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS, SOLD BY THE INCH

Note: Fuel Line Length 4.0"

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, only 3 left!

0

5

Ariens 04745900

HOSE, .188 30R7 BULK, SOLD BY THE INCH

Note: Fuel Line Length 31.0"

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

7

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

8

07500516

CLIP, 360 DEGREE SWIVEL .500 DIA HOSE

$

$

Not available

9

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

10

09658151

STRAP, TANK (BLACK)

$

$

Not available
