994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Idlers and Sheaves Parts Diagram

Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

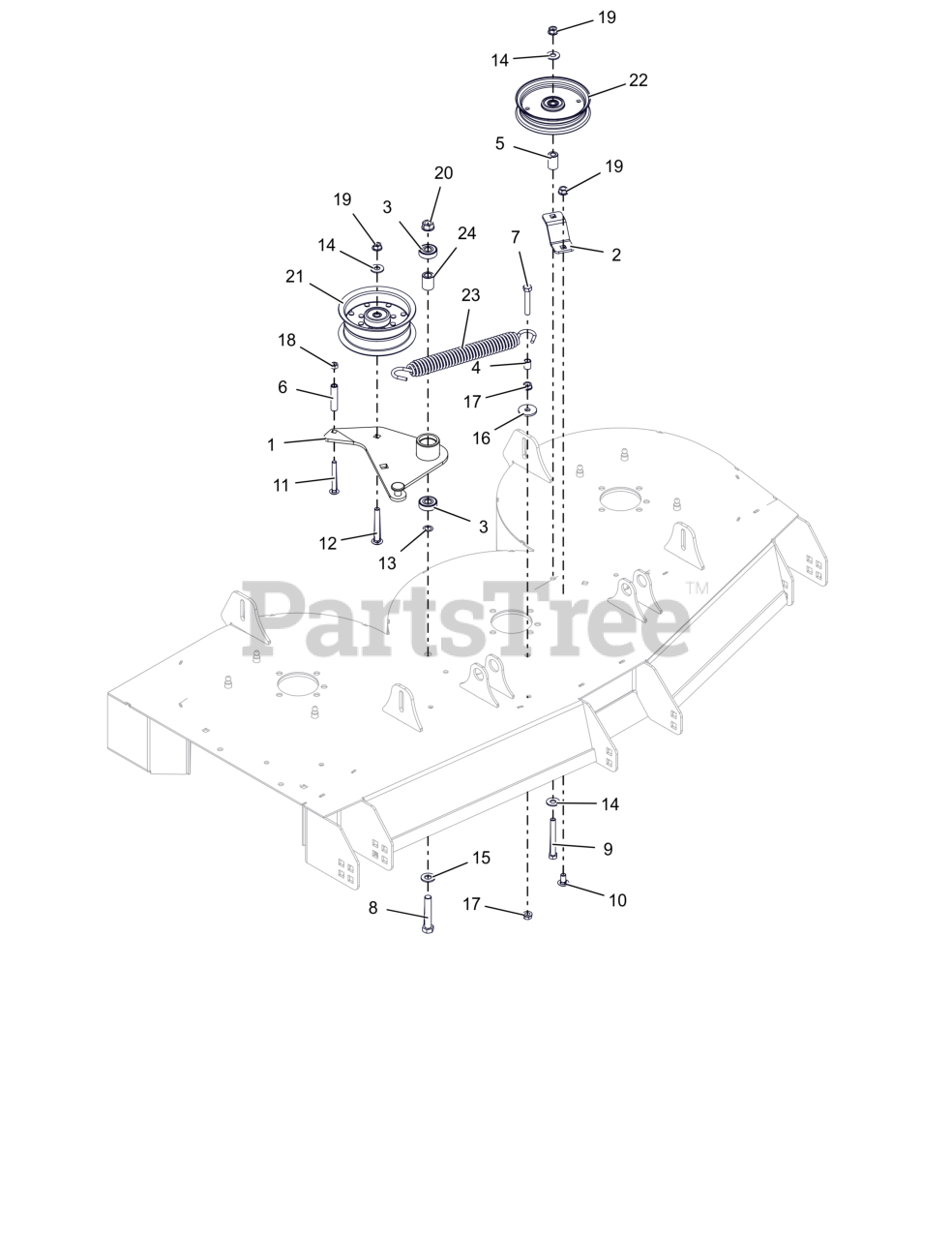

Idlers and Sheaves Parts Diagram

  • Title

1

30289500

WLDMT- IDLER ARM

$

$

Not available

2

Ariens 04981859

PTO FIXED IDLER MTG BRKT-ORG

$8.49

$

In Stock, only 2 left!

0

3

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

4

Ariens 05501226

SPCR, SLV .385X.500X.652

$3.99

$

In Stock, only 2 left!

0

5

Ariens 05501308

BUSHING, SLV .380X.750X1.190

$5.49

$

In Stock, Qty 20+

0

6

05501628

SPCR- .331 X .500 X 2.190

$

$

Not available

7

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

8

Ariens 05901720

BLT,HEX .50-13X2.75 G5 ZCC

$5.49

$

Usually ships in 4-12 days

0

9

Ariens 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06200336

BLT, RHSSN .38-16X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

11

06200410

BLT,RHSN .313-18 X 2.75 G5 ZCC

$

$

Not available

12

Ariens 06200434

BTL,RHSSN .375-16 X 3 G5 ZCC

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 20+

0

17

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.99

$

In Stock, Qty 11

0

19

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

21

07300532

PULLEY, FLAT 5.00X2.36X.375

$

$

Not available

22

Ariens 07351200

IDLER- FLAT - 5.00" X .75"

$42.99

$

In Stock, Qty 20+

0

23

Ariens 08300708

SPRING, EXTENSION

$21.99

$

In Stock, Qty 20+

0

24

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
