994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 000101 - 199999) Operator Platform Parts Diagram

Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

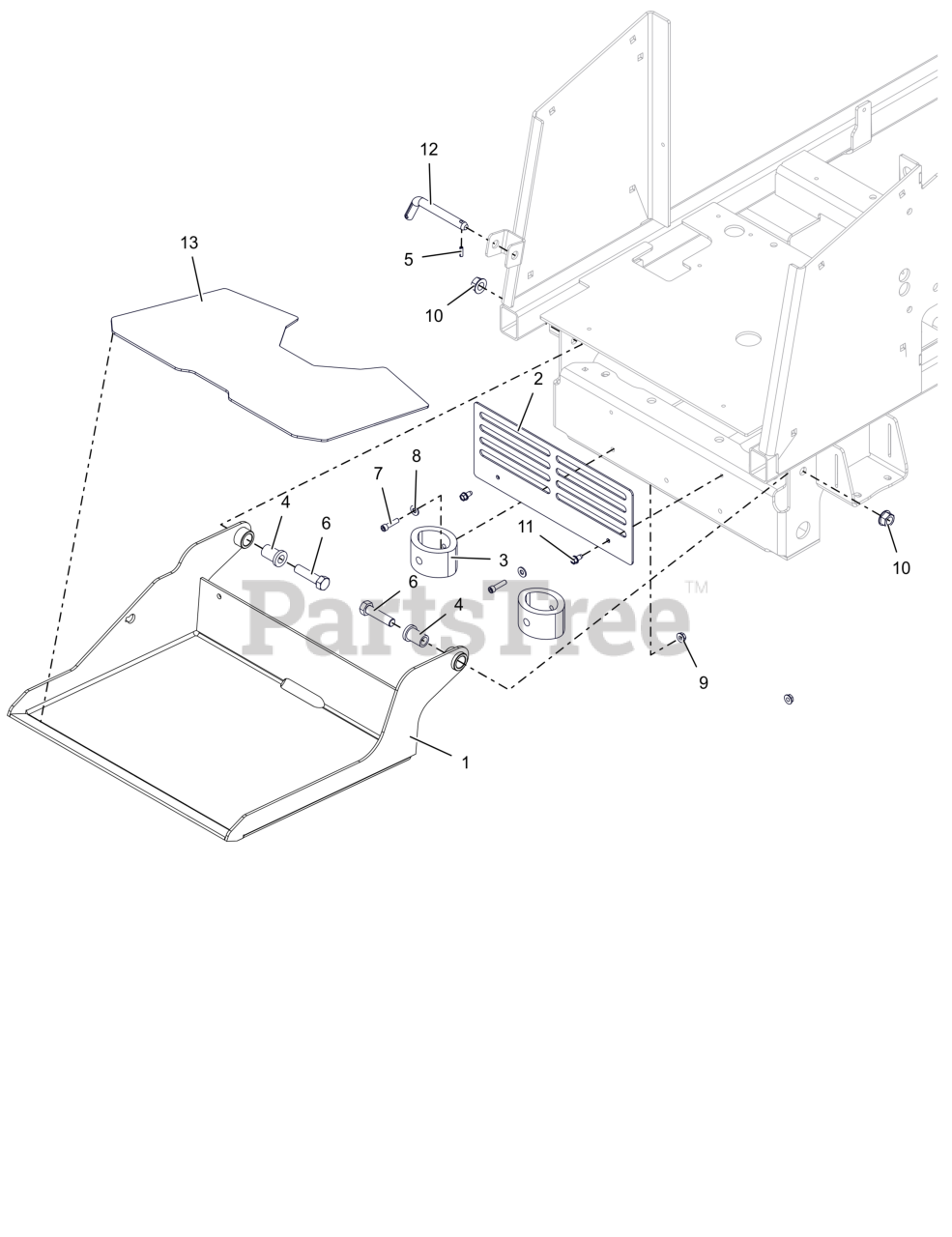

Operator Platform Parts Diagram

  • Title

1

09488751

WLDMT, OPERATOR PLATFORM - 48-52" (BLACK)

$

$

Not available

2

05254259

GUARD- FOOT - 48/52"

$

$

Not available

3

Ariens 05255200

BUMPER, PLATFORM

$34.99

$

In Stock, only 4 left!

0

4

Ariens 05527200

BSHG-FLG .515X.746X1.290X1.000

$31.99

$

Usually ships in 4-12 days

0

5

Ariens 05806200

PIN-ROLL .188X.63

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 05901929

BLT, HEX .50-13X2.00 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

7

Ariens 05902033

SCR, SKH .25-20X1.00

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 8

0

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

07500517

PIN, HOC SELECTOR/PLTFRM LOCK

$

$

Not available

13

30282400

TAPE, OPERATOR PLATFORM GRIP

$

$

Not available
