994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 200000 & Above) Deck, Belt, Blades and Spindles - 52" Parts Diagram
Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

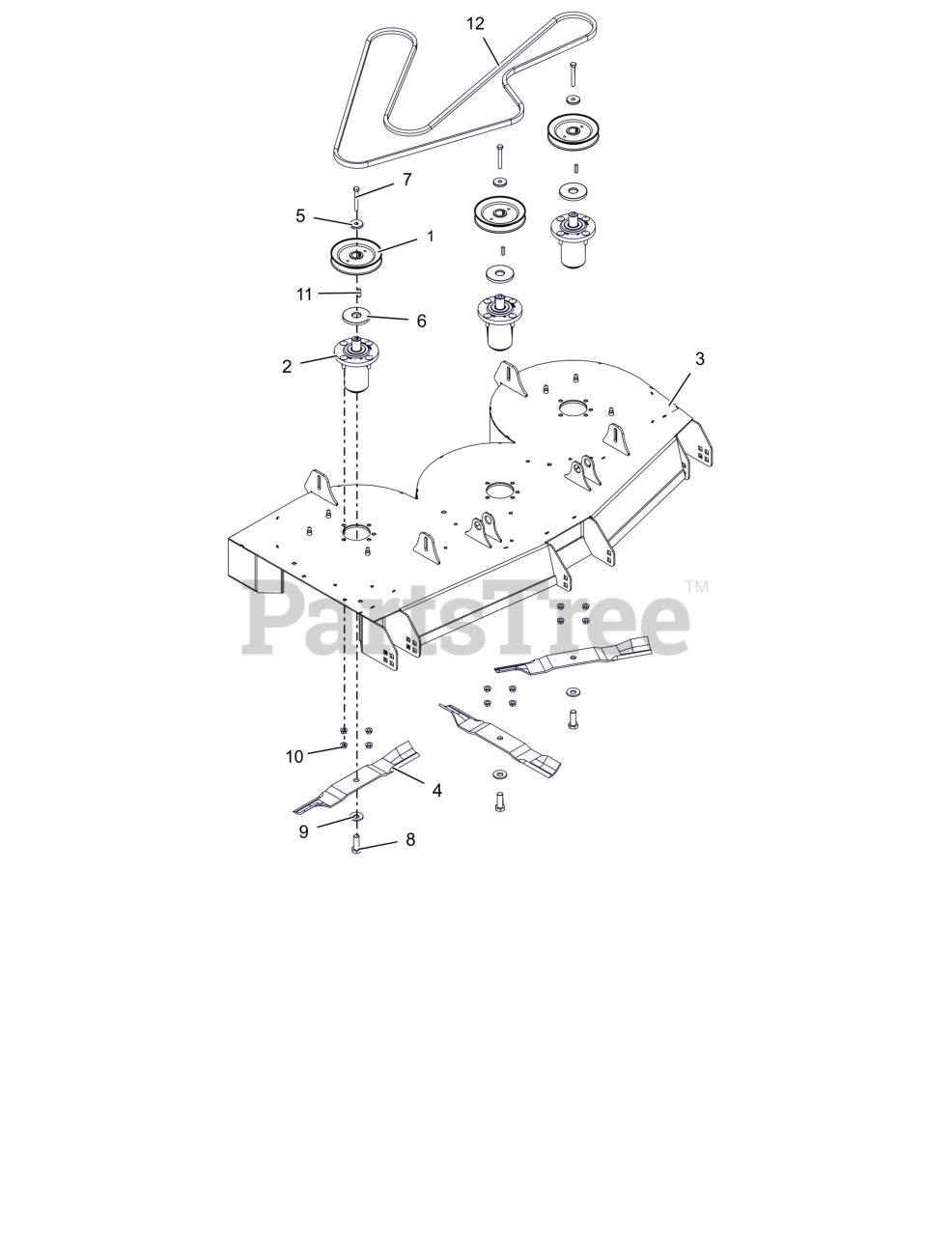

Deck, Belt, Blades and Spindles - 52" Parts Diagram
Ariens 07329300
PULLEY- V-1.000 ID X 5.750 OD
$72.99
$
In Stock, Qty 19
2
30263700
ASM, ALUM SPINDLE
$
$
Not available
3
59408200
52 DECK WLDMT W/SAFETY DECALS
$
$
Not available
Ariens 03253800
BLADE, 18"
$28.99
$
In Stock, Qty 20+
Ariens 04530500
RETAINER, SHEAVE
$9.49
$
In Stock, Qty 20+
Ariens 04976400
SPCR- SHEAVE SPINDLE
$6.49
$
Usually ships in 4-12 days
Ariens 05901813
BLT, HEX .38-16X2.75 G8 ZCC
$1.99
$
In Stock, Qty 20+
Ariens 05901822
BLT, HEX .62-18X1.75 G8 ZCC
$3.99
$
In Stock, Qty 20+
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$5.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06611200
KEY, SQ .25X.25X1.00 RC 40-50
$3.49
$
In Stock, Qty 7
12
07200819
V-BELT, B SECTION RAW EDGE
$
$
Not available
