994168 - Ariens Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS (SN: 200000 & Above) Transaxle Drive - 48" - 52" Parts Diagram

Ridgeline 52" Stand-On Mower, 21.5hp Kawasaki FS

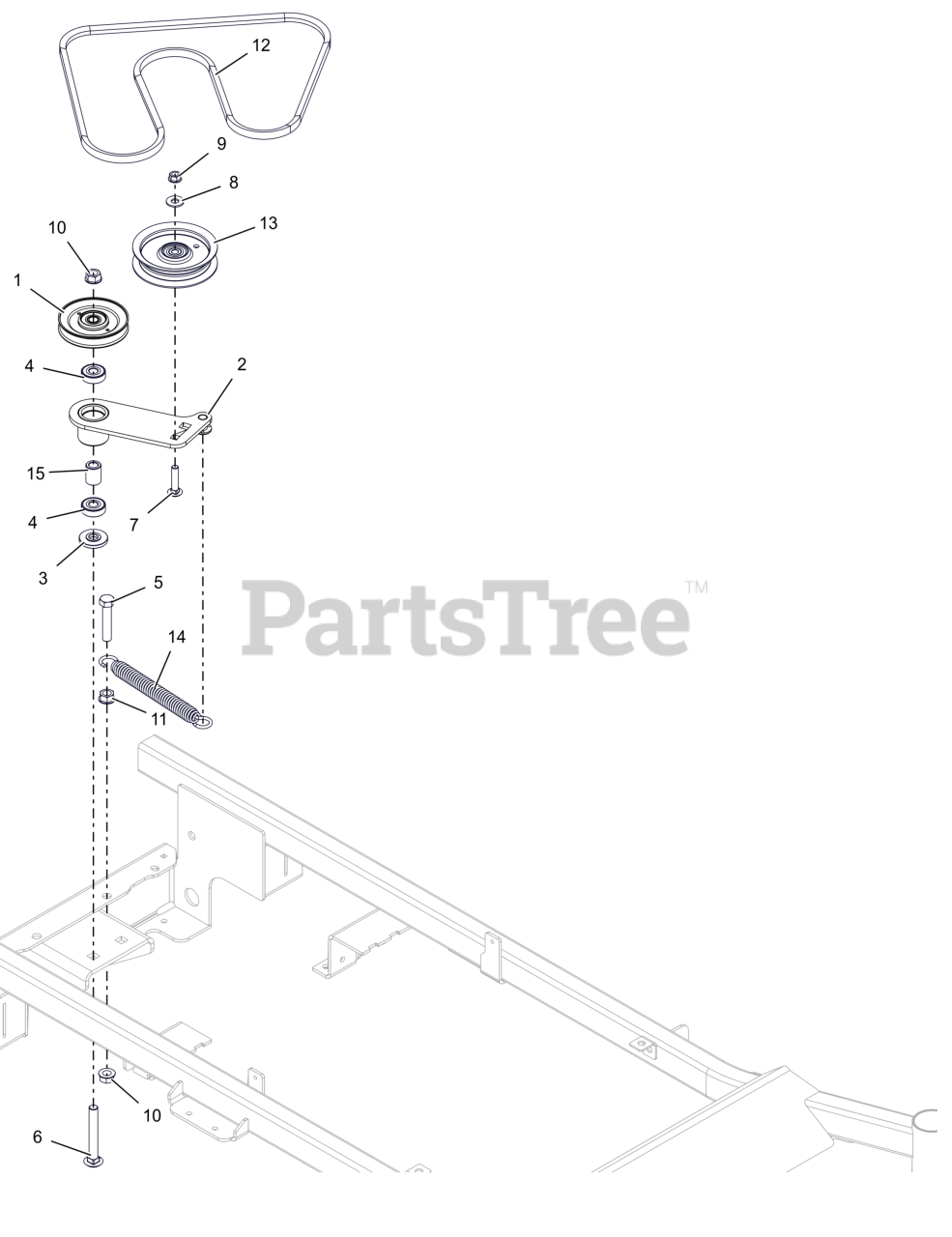

Transaxle Drive - 48" - 52" Parts Diagram

  • Title

1

07344400

SHEAVE, IDLER -V .50 X 4.000

$

$

Not available

2

09488800

WLDMT, 48-52" IDLER ARM

$

$

Not available

3

Ariens 04714600

SPACER, IDLER ARM

$6.99

$

In Stock, Qty 20+

0

4

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

5

Ariens 05901712

BLT, HEX .50-13X2.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

6

06200332

BLT,RHSN .500-13 X 3.75 G5 ZCC

$

$

Not available

7

Ariens 06200417

BLT, RHSN .38-16X1.75 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

8

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500928

NUT, SPNLK-FLG .50-13 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

12

07200919

V-BELT, HA SECTION

$

$

Not available

13

Ariens 07350100

IDLER, FLAT - 4.06" X .75"

$50.99

$

In Stock, Qty 20+

0

14

Ariens 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

15

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
