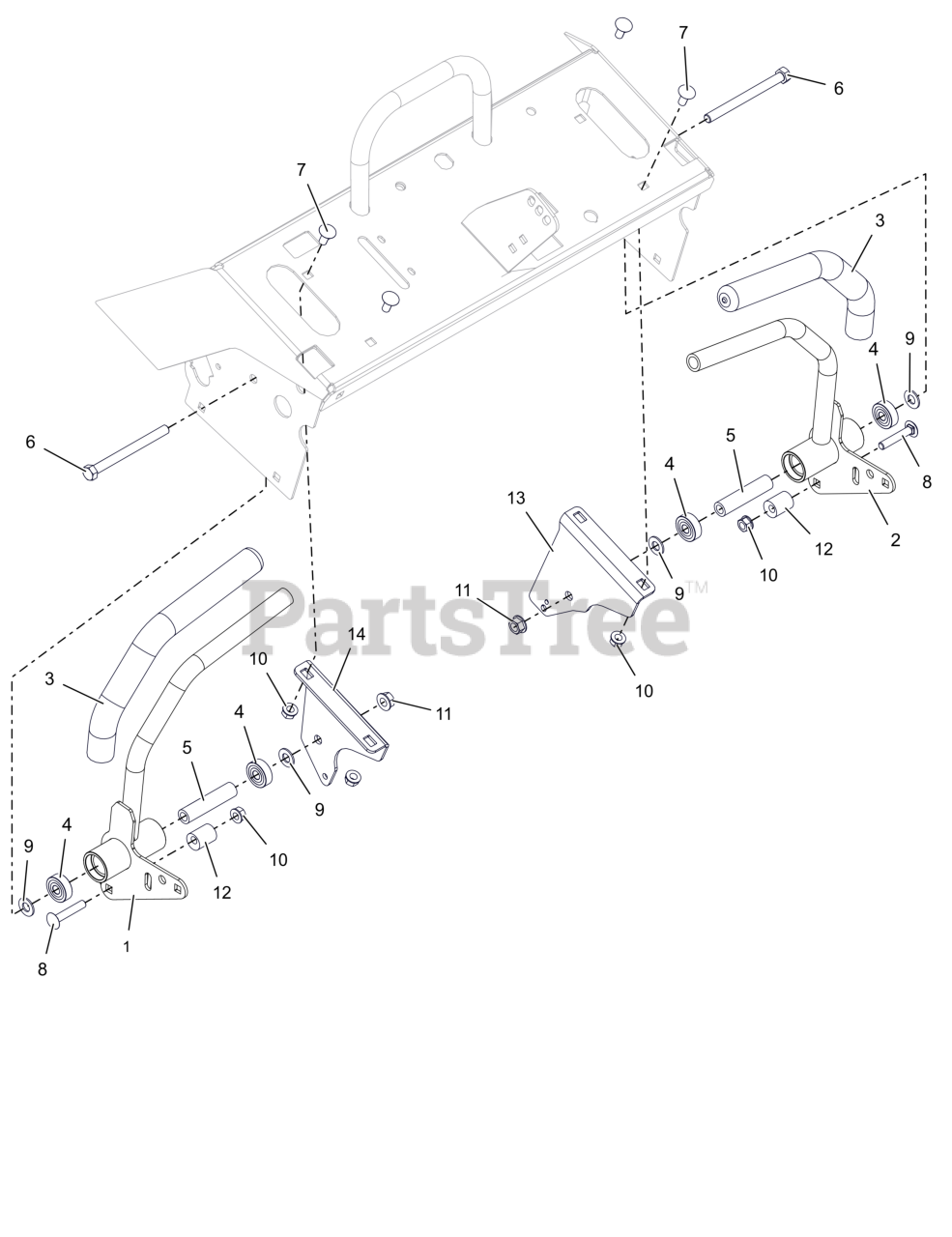

994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Drive Controls - Upper Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

Drive Controls - Upper Parts Diagram

  • Title

1

Gravely 30227751

WLDMT, RH DRIVE CONTROL (BLACK)

$

$

Currently unavailable

1

Gravely 30227751

WLDMT, RH DRIVE CONTROL (BLACK)

$

$

Currently unavailable

2

Gravely 30227851

WLDMT, LH DRIVE CONTROL (BLACK)

$

$

Currently unavailable

2

Gravely 30227851

WLDMT, LH DRIVE CONTROL (BLACK)

$

$

Currently unavailable

3

Gravely 00675200

GRIP, HANDLEBAR

$9.99

$

In Stock, only 2 left!

0

3

Gravely 00675200

GRIP, HANDLEBAR

$9.99

$

In Stock, only 2 left!

0

4

Gravely 05400814

BRG-BALL .375X1.125X.375

$

$

Currently unavailable

4

Gravely 05400814

BRG-BALL .375X1.125X.375

$

$

Currently unavailable

5

Gravely 05501619

SPCR, .385 X .625 X 2.750

$

$

Currently unavailable

5

Gravely 05501619

SPCR, .385 X .625 X 2.750

$

$

Currently unavailable

6

Gravely 05901938

BLT, HEX 0.375-16X4.5 GR5 ZCC

$

$

Currently unavailable

6

Gravely 05902024

BLT, HEX 0.375-16X4.25 GR5 ZCC

$5.49

$

In Stock, only 1 left!

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06200335

BLT, RHSSN .31-18X1.75 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06200335

BLT, RHSSN .31-18X1.75 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06401013

WSHR-FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06401013

WSHR-FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

12

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

13

Gravely 30228051

BRKT, LH DRIVE CONTROL MTG (BLACK)

$

$

Currently unavailable

13

Gravely 30228051

BRKT, LH DRIVE CONTROL MTG (BLACK)

$

$

Currently unavailable

14

Gravely 30228151

BRKT, RH DRIVE CONTROL MTG (BLACK)

$

$

Currently unavailable

14

Gravely 30228151

BRKT, RH DRIVE CONTROL MTG (BLACK)

$

$

Currently unavailable
