994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Electrical - Battery Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

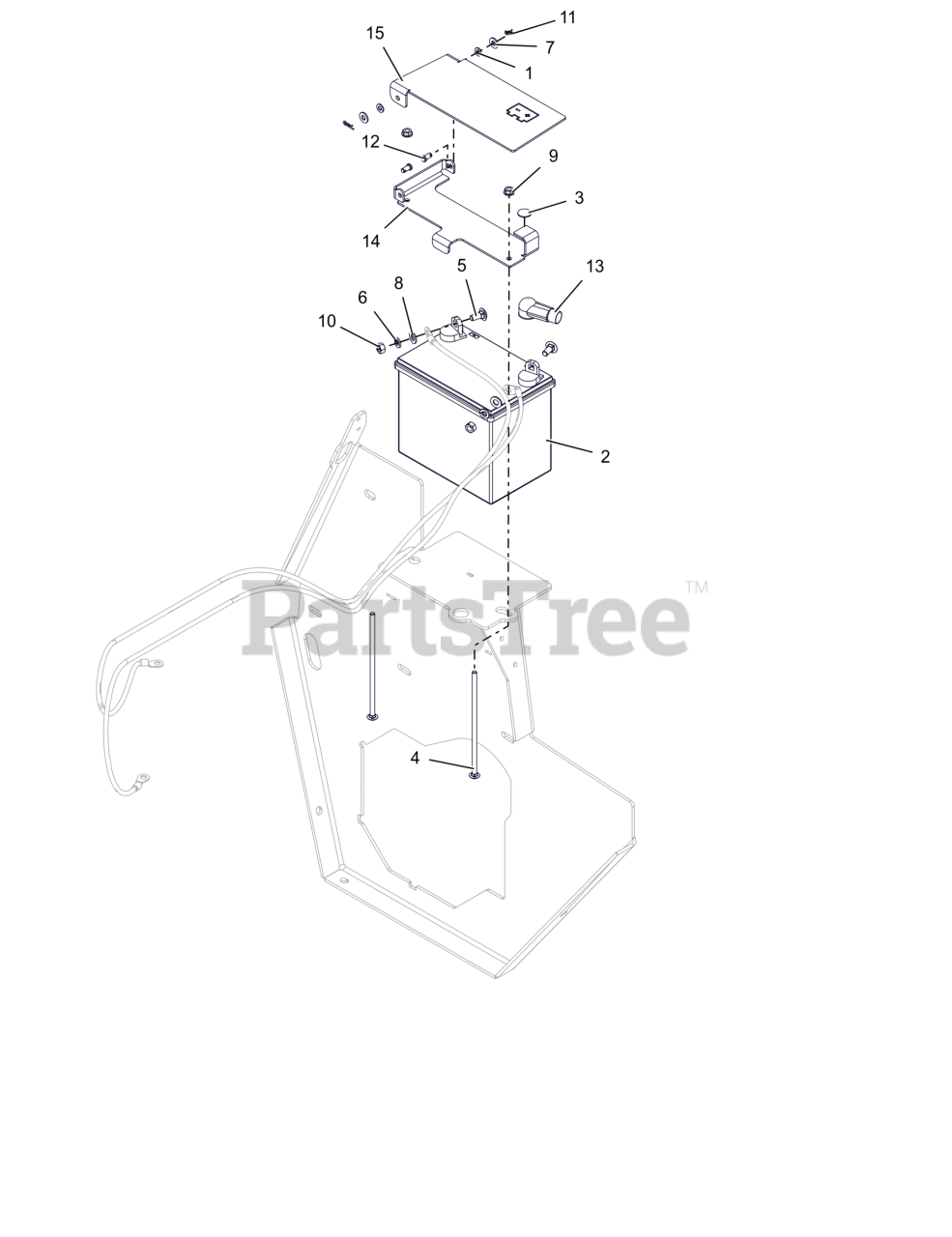

Electrical - Battery Parts Diagram

  • Title

1

Gravely 00967441

WASHER- .257X.500 X .062 NYLON

$1.49

$

Usually ships in 4-12 days

0

2

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

3

Gravely 04556100

MAGNET, .75X.06, LP CLAMP

$10.99

$

Usually ships in 4-12 days

0

4

Gravely 06200229

BLT,RHSN .25-20X7.00 G2 ZCC

$5.49

$

In Stock, Qty 20+

0

5

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 6

0

10

Gravely 06500938

NUT, HEX .312-18 ZCC

$

$

Currently unavailable

11

Gravely 06700221

PIN-HAIR INT .06X.18X.77

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06809700

PIN-CLEV .250X.406

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 07500401

BOOT, .65ID POS

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 30285751

BRKT, BATTERY HOLDDOWN (BLACK)

$

$

Currently unavailable

15

Gravely 30285951

COVER, BATTERY (BLACK)

$

$

Currently unavailable
