994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Engine - Kawasaki FX 1000 Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

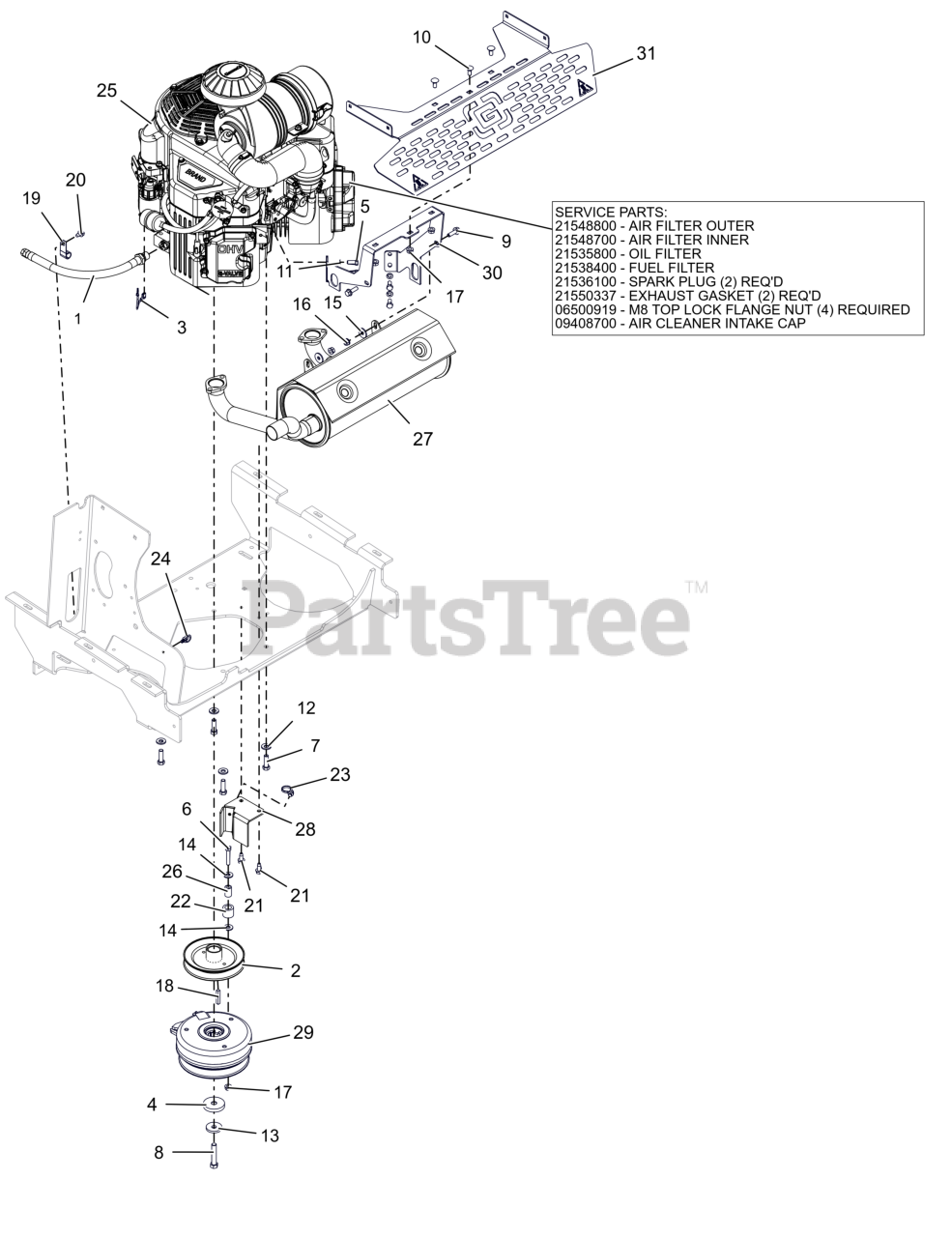

Engine - Kawasaki FX 1000 Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 07355400

WLDMT, TRANSAXLE DRIVE PULLEY

$138.99

$

Usually ships in 4-12 days

0

3

Gravely 03286700

LEAD - STARTER SOLENOID

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 05501240

SPACER, .474/.459X2.00X.350

$15.99

$

In Stock, Qty 5

0

5

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$3.99

$

In Stock, Qty 9

0

7

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05902031

BLT, HEX 0.4375-20X2.25 G8 ZCC NT

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 05902228

BLT, HEX-FLG 0.312-18X1 GR5 ZB500

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, Qty 5

0

14

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06401027

WSHR,FLT .328X1.00X.094 ZCC

$4.99

$

In Stock, only 2 left!

0

16

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

17

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 20+

0

21

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$2.49

$

In Stock, Qty 12

0

22

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.99

$

In Stock, Qty 10

0

23

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 07500515

CLIP- PUSH-IN X-MAS TREE CABLE

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 08201002

ENGINE - KAWASAKI FX1000

$

$

Not available

25

Gravely 21548800

FILTER, OUTER

Note: Component Service Part

$28.99

$

In Stock, Qty 20+

0

25

Gravely 21548700

FILTER, INNER - KAW

Note: Component Service Part

$28.99

$

In Stock, Qty 20+

0

25

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

Usually ships in 2-5 days

0

25

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: Component Service Part

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$10.99

$

In Stock, Qty 20+

0

25

Gravely 21550337

GASKET, EXHAUST (11061-7061)

Note: Component Service Part

$8.49

$

Usually ships in 4-12 days

0

25

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Component Service Part

$2.99

$

In Stock, Qty 11

0

25

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: Component Service Part

$60.99

$

In Stock, Qty 5

0

26

Gravely 08833400

BUSH.,S.391X.622X.950 ST

$6.99

$

In Stock, only 4 left!

0

27

Gravely 30209000

MUFFLER, KAWASAKI HORIZONTAL

$237.99

$

Usually ships in 4-12 days

0

28

Gravely 30224451

WLDMT, CLUTCH STOP (BLACK)

$28.99

$

Usually ships in 4-12 days

0

29

Gravely 30225100

CLUTCH, WARNER

$544.99

$

Usually ships in 4-12 days

0

30

Gravely 30284051

BRKT, EXHAUST MOUNTING (BLACK)

$35.99

$

Usually ships in 4-12 days

0

31

Gravely 30284151

SHIELD, MUFFLER (BLACK)

$49.99

$

Usually ships in 4-12 days

0
