994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Fuel System - Non-EFI Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

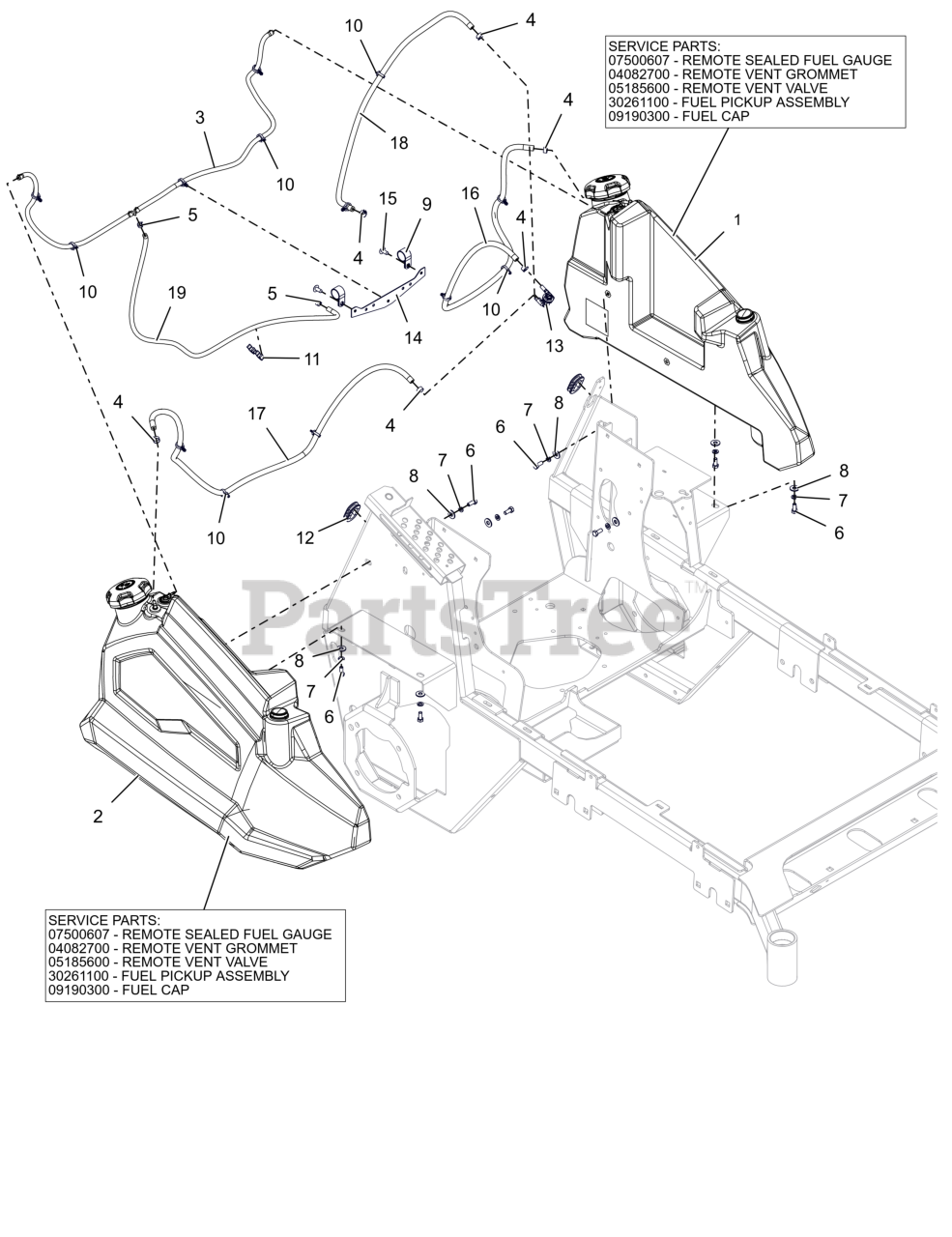

Fuel System - Non-EFI Parts Diagram

  • Title

1

Gravely 30196900

ASM, PRO STANCE LH FUEL TANK

$

$

Currently unavailable

1

Gravely 07500607

REMOTE SEALED FUEL GAUGE

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$18.99

$

In Stock, only 4 left!

0

1

Gravely 30261100

FUEL PICK UP ASSEMBLY

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$35.99

$

In Stock, Qty 20+

0

2

Gravely 30197000

ASM, PRO STANCE RH FUEL TANK

$

$

Currently unavailable

2

Gravely 07500607

REMOTE SEALED FUEL GAUGE

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$18.99

$

In Stock, only 4 left!

0

2

Gravely 30261100

FUEL PICK UP ASSEMBLY

Note: Component Service Part

$

$

Currently unavailable

2

Gravely 09190300

CAP, FUEL - 3.50 RATCHET INLET VENT

Note: Component Service Part

$35.99

$

In Stock, Qty 20+

0

3

Gravely 30268900

ASM, PROSTANCE ULTRA VENT LINE

$

$

Currently unavailable

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04097700

CLAMP-HOSE- SPRING .188

$1.99

$

In Stock, Qty 5

0

6

Gravely 05901704

BLT-HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06300119

WSHR-LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 07500515

CLIP- PUSH-IN X-MAS TREE CABLE

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07500516

CLIP-360DEG SWIVEL.500DIA HOSE

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 09389900

VALVE, FUEL - WITH MAGNET

$46.99

$

In Stock, only 4 left!

0

14

Gravely 30285351

PLATE, FUEL ROUTING (BLACK)

$

$

Currently unavailable

15

Gravely P80-332-A

XMAS TREE FASTNER-BLACK

$2.99

$

In Stock, Qty 11

0

16

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

19

Gravely 04745900

HOSE- .188 30R7 BULK

$1.49

$

Usually ships in 4-12 days

0
