994170 - Gravely Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Wheels - 60" and 72" Parts Diagram

Pro-Stance Ultra 60" Stand-On Mower, Kawasaki FX

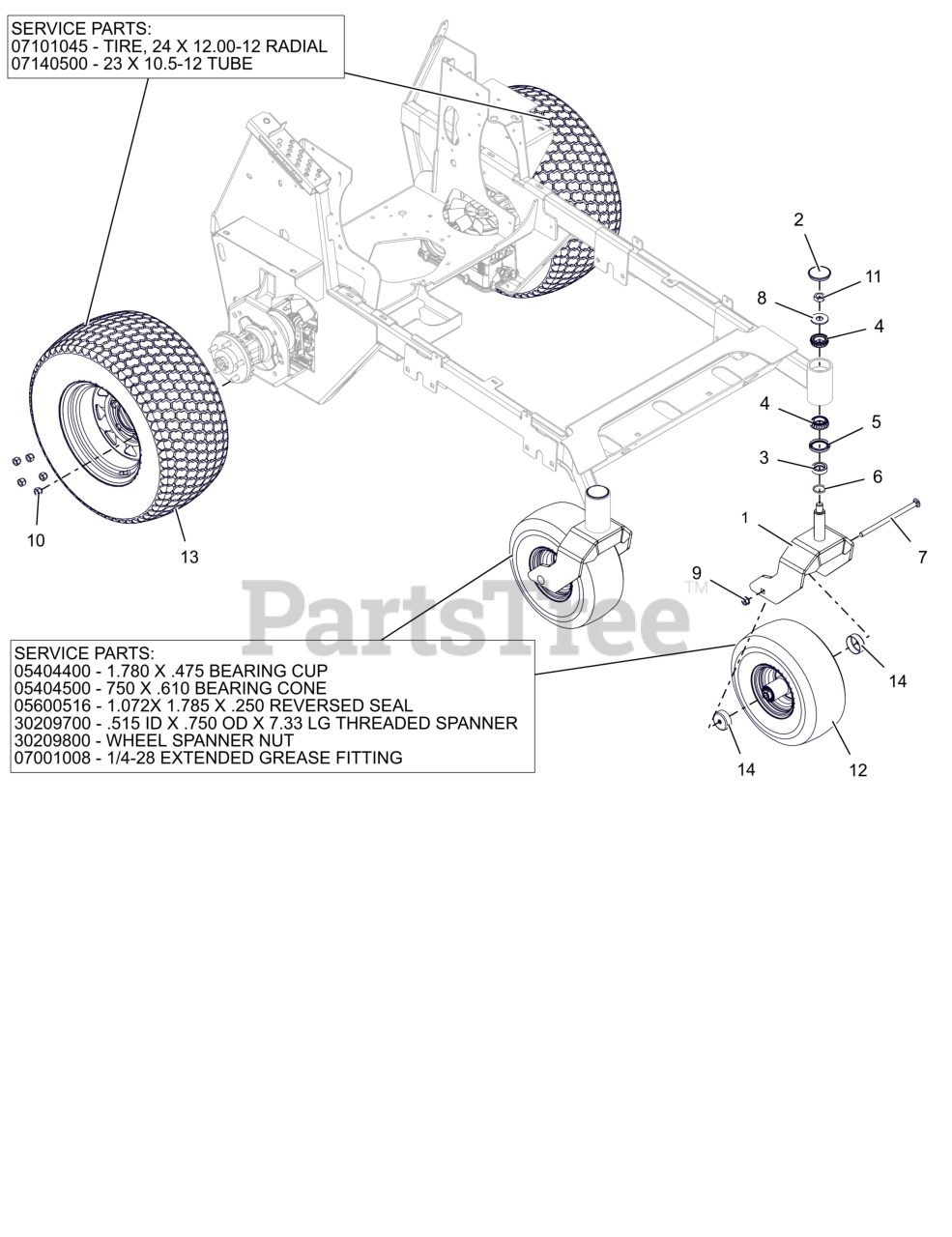

Wheels - 60" and 72" Parts Diagram

  • Title

1

Gravely 09372353

WLDMT, CASTER FORK (RED)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, Qty 6

0

3

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 5

0

4

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 18

0

5

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, Qty 19

0

6

Gravely 05600515

O-RING,

$2.99

$

In Stock, Qty 11

0

7

Gravely 06200510

BLT-RHSN .50-13X9.00 G5 ZCC NS

$8.49

$

In Stock, Qty 17

0

8

Gravely 06401201

WSHR-FL-STL 0.812X2X0.148 ZCC

$4.99

$

In Stock, Qty 10

0

9

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500926

NUT- WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500933

NUT, JAM-TOPLOCK .750-16 ZCC

$4.99

$

In Stock, Qty 11

0

12

Gravely 07101621

ASM-WHL 15X6.00-6 PRELOAD SEMI - FLAT BLACK - SMOOTH TREAD

$213.99

$

In Stock, only 2 left!

0

12

Gravely 05404400

BRG-CUP 1.781X.475

Note: Component Service Part

$11.99

$

In Stock, Qty 17

0

12

Gravely 05404500

BRG-CONE .750X.61

Note: Component Service Part

$29.99

$

In Stock, Qty 20+

0

12

Gravely 05600516

SEAL,1.072X1.785X.250 REVERSED

Note: Component Service Part

$25.99

$

In Stock, Qty 20+

0

12

Gravely 30209700

.515 ID X .750 OD X 7.33 LARGE TREADED SPANNER

Note: Component Service Part

$

$

Currently unavailable

12

Gravely 30209800

WHEEL SPANNER NUT

Note: Component Service Part

$

$

Currently unavailable

12

Gravely 07001008

GREASE FITTING 1/4-28 EXTENDED

Note: Component Service Part

$14.99

$

In Stock, only 2 left!

0

13

Gravely 07101624

ASSM TIRE\WHEEL, 24 X 12.00 - 12 RAD - LOW GLOSS BLACK - TURF TREAD

$

$

Currently unavailable

13

Gravely 07101045

TIRE, 24 X 12.00-12 RADIAL

Note: Component Service Part

$249.99

$

Usually ships in 4-12 days

0

13

Gravely 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.99

$

In Stock, only 1 left!

0

13

Gravely 07140500

TUBE 22,23&24X8.50/9.50/10.00/10.50/12.00-12

Note: Optional Component Service Part

$52.99

$

Usually ships in 4-12 days

0

14

Gravely 09357800

SHIELD, WHEEL BEARING

$12.99

$

In Stock, Qty 20+

0
