994173 - Gravely Pro-Stance Ultra 52" Stand-On Mower, Kawasaki FX (SN: 000101 & Above) Deck, Belts, Blades and Spindles - 52" Parts Diagram

Pro-Stance Ultra 52" Stand-On Mower, Kawasaki FX

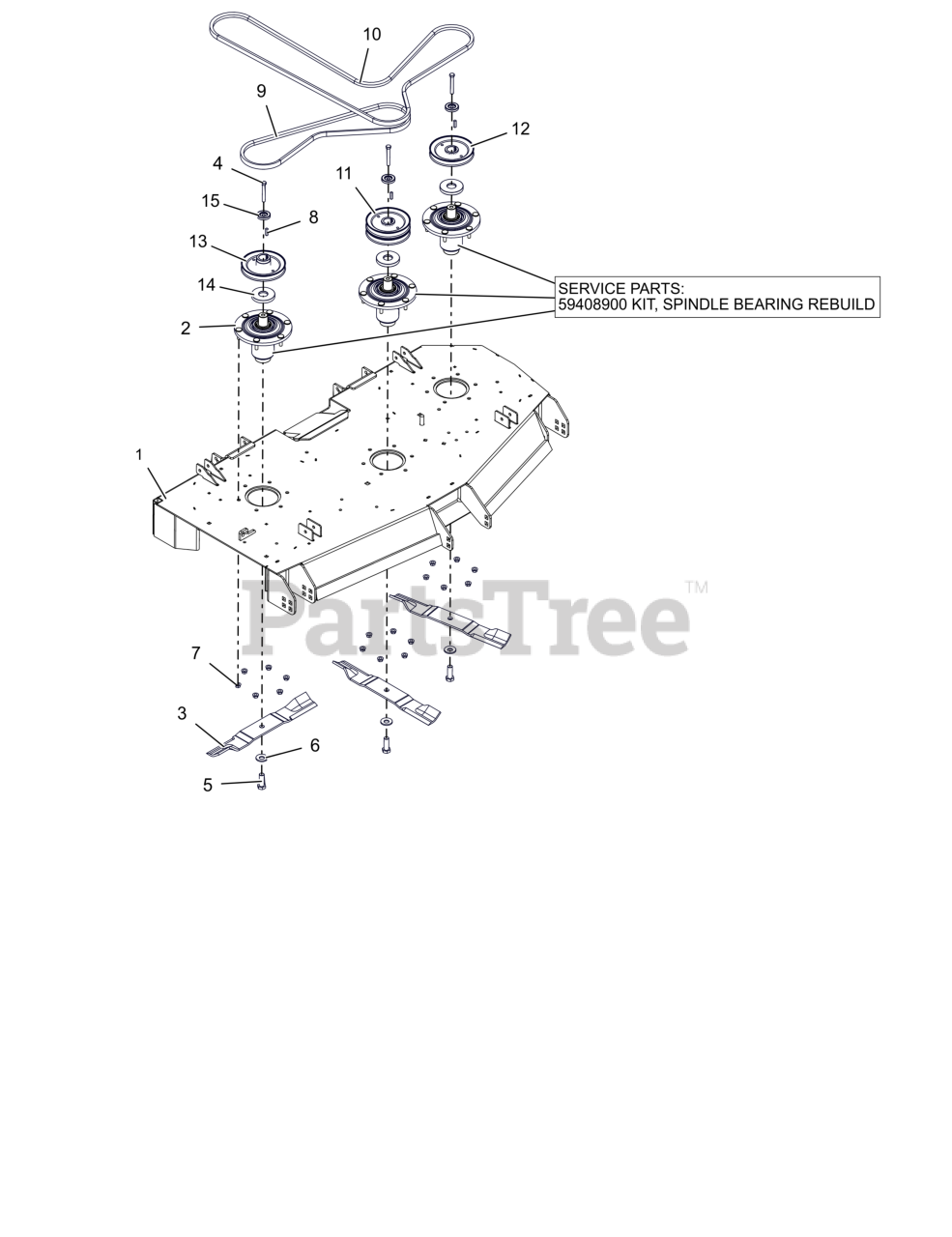

Deck, Belts, Blades and Spindles - 52" Parts Diagram

  • Title

1

Gravely 59409400

WLDMT,52 IN SIDE DISCHARGE DECK - PSU W/SAFE

$1354.99

$

Usually ships in 4-12 days

0

2

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$360.99

$

Usually ships in 4-12 days

0

2

Gravely 59408900

KIT, SPINDLE BEARING REBUILD KIT

Note: Component Service Part

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$30.99

$

In Stock, Qty 20+

0

4

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

7

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

9

Gravely 07200036

V-BELT, B-COGGED

$66.99

$

In Stock, Qty 17

0

10

Gravely 07200932

V-BELT, HB SECTION

$113.99

$

Usually ships in 4-12 days

0

11

Gravely 07353900

PULLEY, DBL - 1.18IDX5.75OD ZCC

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 07354000

PULLEY, SGL - 1.18IDX5.75OD ZCC

$48.99

$

Usually ships in 4-12 days

0

13

Gravely 07354100

PULLEY, SGL - 1.18IDX5.75OD ZCC

$48.99

$

Usually ships in 4-12 days

0

14

Gravely 30226500

SEAL, LABYRINTH

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 30226600

RETAINER, SHEAVE

$5.99

$

Usually ships in 4-12 days

0
