994175 - Gravely Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI (SN: 000101 & Above) Deck, Belts, Blades and Spindles Parts Diagram

Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI

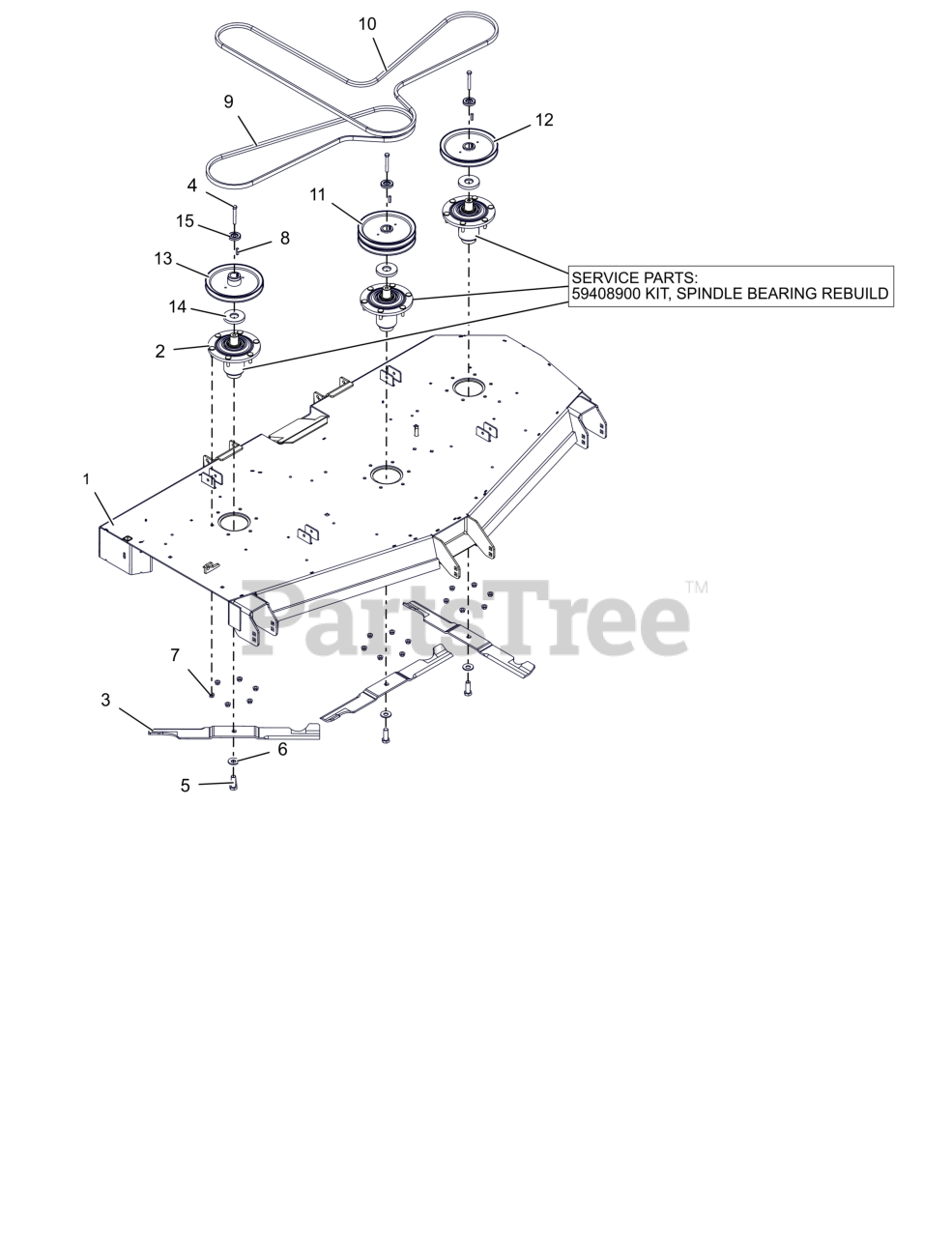

Deck, Belts, Blades and Spindles Parts Diagram

  • Title

1

Gravely 59409600

WLDMT,72 IN SIDE DISCHARGE DECK - PSU W/SAFE

$1751.99

$

Usually ships in 4-12 days

0

1

Gravely 59409600

WLDMT,72 IN SIDE DISCHARGE DECK - PSU W/SAFE

$1751.99

$

Usually ships in 4-12 days

0

2

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$360.99

$

Usually ships in 4-12 days

0

2

Gravely 59409800

KIT, SPINDLE ASM W/FASTENERS

$360.99

$

Usually ships in 4-12 days

0

2

Gravely 59408900

KIT, SPINDLE BEARING REBUILD KIT

Note: Component Service Part

$136.99

$

Usually ships in 4-12 days

0

3

Gravely 04774600

BLADE, 72"

$38.99

$

In Stock, Qty 20+

0

4

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$2.49

$

In Stock, Qty 20+

0

3

Gravely 04774600

BLADE, 72"

$38.99

$

In Stock, Qty 20+

0

4

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

5

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

7

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$3.99

$

In Stock, Qty 20+

0

9

Gravely 07200039

V-BELT, B-COGGED

$79.99

$

In Stock, Qty 15

0

10

Gravely 07200816

V-BELT, HB SECTION

$131.99

$

In Stock, Qty 13

0

9

Gravely 07200039

V-BELT, B-COGGED

$79.99

$

In Stock, Qty 15

0

10

Gravely 07200816

V-BELT, HB SECTION

$131.99

$

In Stock, Qty 13

0

11

Gravely 07354500

PULLEY, DBL - 1.18IDX8.25OD ZCC

$121.99

$

Usually ships in 4-12 days

0

12

Gravely 07354600

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

11

Gravely 07354500

PULLEY, DBL - 1.18IDX8.25OD ZCC

$121.99

$

Usually ships in 4-12 days

0

12

Gravely 07354600

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

13

Gravely 07354700

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

14

Gravely 30226500

SEAL, LABYRINTH

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 07354700

PULLEY, SGL - 1.18IDX8.25OD ZCC

$60.99

$

Usually ships in 4-12 days

0

14

Gravely 30226500

SEAL, LABYRINTH

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 30226600

RETAINER, SHEAVE

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 30226600

RETAINER, SHEAVE

$5.99

$

Usually ships in 4-12 days

0
