994175 - Gravely Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI (SN: 000101 & Above) Electrical - EFI Parts Diagram

Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI

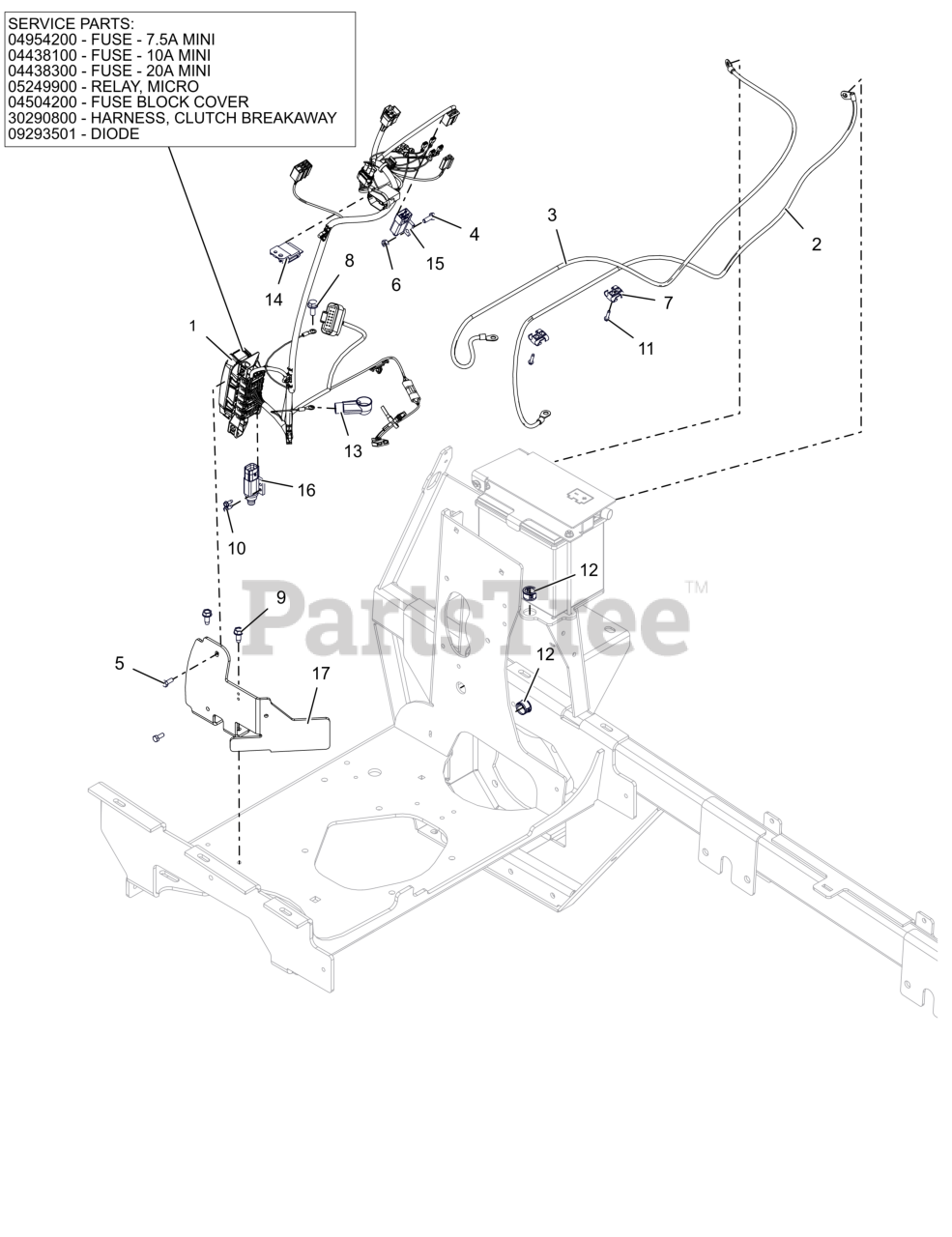

Electrical - EFI Parts Diagram

  • Title

1

Gravely 30183701

HARNESS, MAIN BBPS FX1000 EFI

$

$

Currently unavailable

1

Gravely 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$2.99

$

In Stock, only 2 left!

0

1

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$5.49

$

In Stock, Qty 6

0

1

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$5.49

$

In Stock, only 2 left!

0

1

Gravely 05249900

RELAY,SPNO,SEALED,ISO280,RESIS

Note: Component Service Part

$16.99

$

Usually ships in 4-12 days

0

1

Gravely 04504200

COVER, HARNESS FUSE/RELAY MOD

Note: Component Service Part

$29.99

$

Usually ships in 4-12 days

0

1

Gravely 30290800

CLUTCH BREAKAWAY HARNESS

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$13.99

$

In Stock, Qty 20+

0

2

Gravely 30259800

CABLE, POS 49.00" W/(2) .312 RING

$

$

Currently unavailable

3

Gravely 30259900

CABLE, NEG 54.00" W/(2) .312 RING

$

$

Currently unavailable

4

Gravely 05901716

BLT- HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, only 3 left!

0

5

Gravely 05902026

BLT, HEX M6-1X16 G8.8 ZCC

$1.49

$

In Stock, only 2 left!

0

6

Gravely 06500812

NUT,LK-CTR .25-20 GA ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 07001820

BLT, SERHFWH 0.312-18X0.75 GR5 ZCC

$2.49

$

In Stock, only 1 left!

0

9

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.99

$

In Stock, Qty 14

0

10

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07400221

SCR-TAP #8-32X.75 HWH ZCC

$

$

Currently unavailable

12

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 1 left!

0

13

Gravely 07500401

BOOT, .65ID POS

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

15

Gravely 09435400

SWITCH, BRAKE NO-NC-POST AND HOLE

$19.99

$

Usually ships in 4-12 days

0

16

Gravely 09698500

SWITCH- SEALED PLUNGER

$35.99

$

Usually ships in 4-12 days

0

17

Gravely 30258500

BRKT, FUSE BLOCK MOUNT (BLACK)

$

$

Currently unavailable
