994175 - Gravely Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI (SN: 000101 & Above) Transaxle Drive Parts Diagram

Pro-Stance Ultra 72" Stand-On Mower, Kawasaki FX EFI

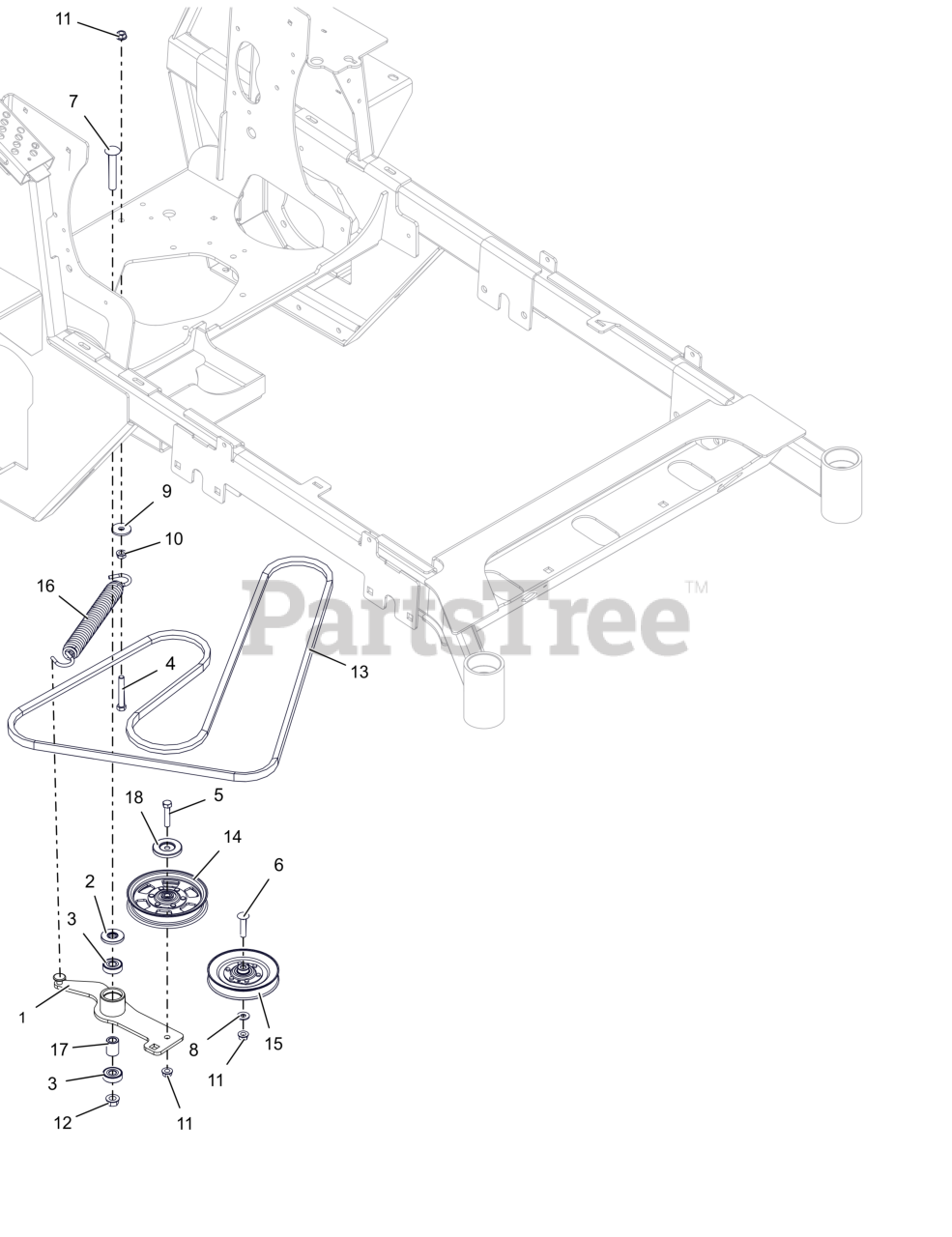

Transaxle Drive Parts Diagram

  • Title

1

Gravely 30232500

WLDMT, TRANSAXLE DRIVE IDLER ARM

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 04714600

SPACER, IDLER ARM

$7.49

$

In Stock, Qty 20+

0

3

Gravely 05408000

BRG-BALL .500X1.38X.437

$7.49

$

In Stock, Qty 20+

0

4

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

5

Gravely 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06200329

BTL,RHSSN .375-16 X 1.75 G5 ZCC

$4.99

$

In Stock, Qty 6

0

7

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

8

Gravely 06401023

WSHR-FLT .375X.875X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.99

$

In Stock, Qty 17

0

10

Gravely 06500735

NUT- SPNLK-FLG .38-16 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.49

$

In Stock, Qty 20+

0

13

Gravely 07200926

V-BELT, HB SECTION

$142.99

$

Usually ships in 4-12 days

0

14

Gravely 07354900

IDLER, FLAT 5.00X.75X.65 SPCR

$46.99

$

Usually ships in 4-12 days

0

15

Gravely 07355000

IDLER, V-5.00" W/.650 STANDOFF

$78.99

$

Usually ships in 4-12 days

0

16

Gravely 08300708

SPRING, EXTENSION

$22.99

$

In Stock, Qty 20+

0

17

Gravely 09357700

SPACER .510 X .867 X 1.1485

$5.99

$

In Stock, Qty 20+

0

18

Gravely 30269000

CAP, DUST

$11.99

$

Usually ships in 4-12 days

0
