994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Battery - Electrical Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

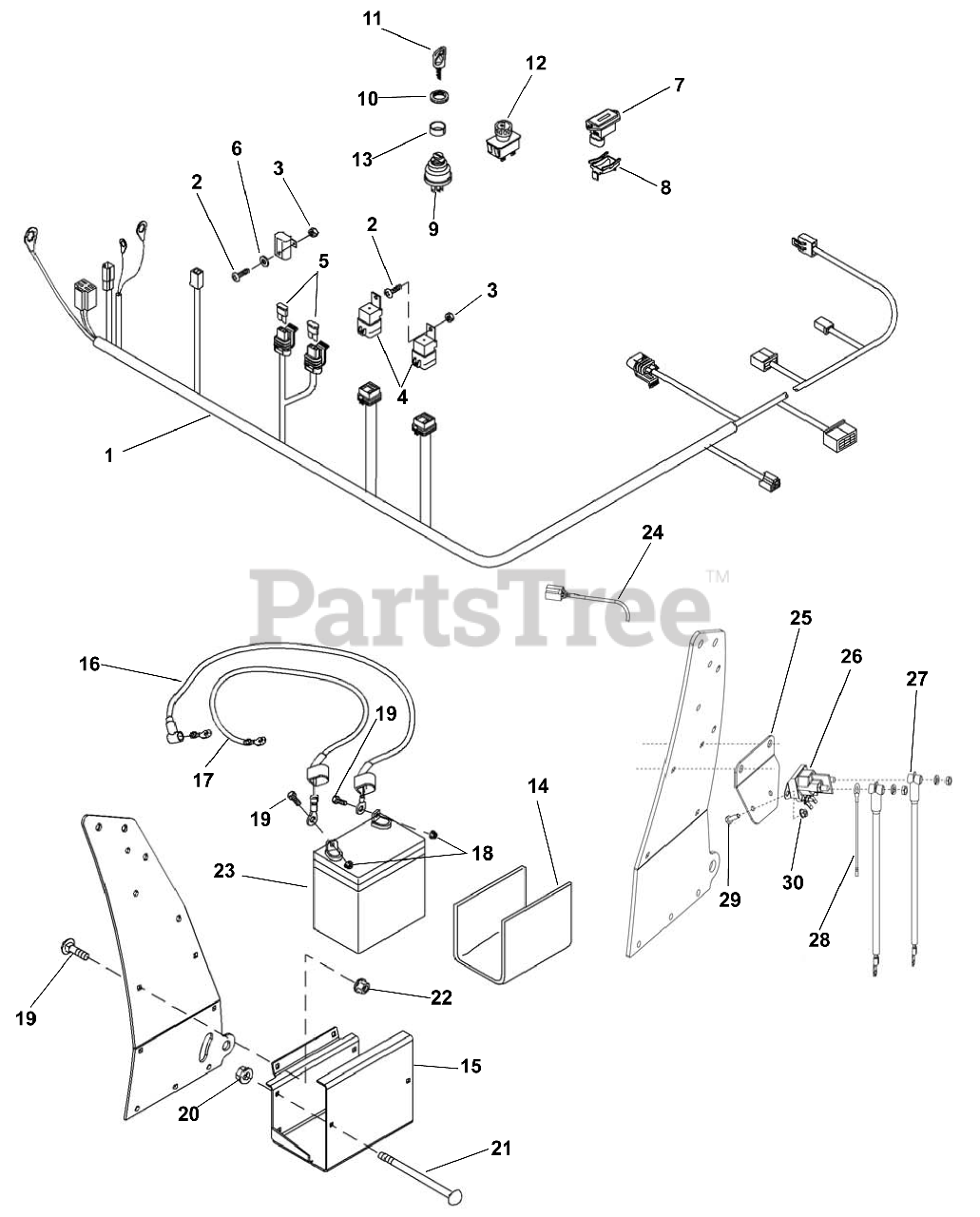

Battery - Electrical Parts Diagram

  • Title

1

Ariens 00882000

WIRING HARNESS, MAIN
(Superseded to 00200204)

$254.99

$

Usually ships in 4-12 days

0

2

Ariens 05975800

BLT-HEX M5-.8X16 YWZC

$

$

Not available

3

Ariens 06522100

NUT-HEX M5X.8 PL

$

$

Not available

4

Ariens 00953800

RELAY, SEALED W/BRACKET
(Superseded to AM123716)

$35.99

$

Usually ships in 4-12 days

0

5

Ariens 00955500

FUSE, 20A

$

$

Not available

6

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

7

Ariens 00954000

METER, HOUR - LCD
(Superseded to AM129887)

$

$

Not available

8

Ariens 00883900

CLIP

$

$

Not available

9

Ariens 00882200

KEY SWITCH
(Superseded to TCA15075)

$37.99

$

Usually ships in 4-12 days

0

10

Ariens 06500036

NUT, KNURLED
(Superseded to M110159)

$

$

Not available

11

Ariens 06600006

IGNITION KEY
(Superseded to TCU17401)

$9.99

$

Usually ships in 4-12 days

0

12

Ariens 00873800

SWITCH, PTO
(Superseded to AM118802)

$26.99

$

Usually ships in 4-12 days

0

13

Ariens 00879000

SPACER

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 00877200

ISOLATOR PAD, BATTERY
(Superseded to D28159)

$15.99

$

Usually ships in 4-12 days

0

15

Ariens 00885900

BATTERY BOX
(Superseded to 00200221)

$

$

Not available

16

Ariens 00876100

CABLE, POSITIVE

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 00876200

CABLE, NEGATIVE
(Superseded to D18319)

$39.99

$

Usually ships in 4-12 days

0

18

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

19

Ariens 06226000

BLT-RDHDSQNK M8-1.25X20 YWZC

$

$

Not available

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

21

Ariens 05900107

CAP SCREW, 5/16" X 6"
(Superseded to 06200128)

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

23

Battery 12V U1-CCA 270 Min.

$

$

Not available

24

Ariens 00873300

ADAPTER ASSY, KAWASAKI
(Superseded to 00200074)

$35.99

$

Usually ships in 4-12 days

0

25

Ariens 00873200

SOLENOID MOUNTING PLATE
(Superseded to 00200069)

$

$

Not available

26

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 5

0

27

Ariens 00872300

STARTER CABLE
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

28

Ariens 00954300

FUSIBLE LINK, 20A
(Superseded to 00200924)

$15.99

$

Usually ships in 4-12 days

0

29

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

30

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

Ariens 00879100

TIE STRAPS

$

$

Not available
