994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Caster Wheels Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

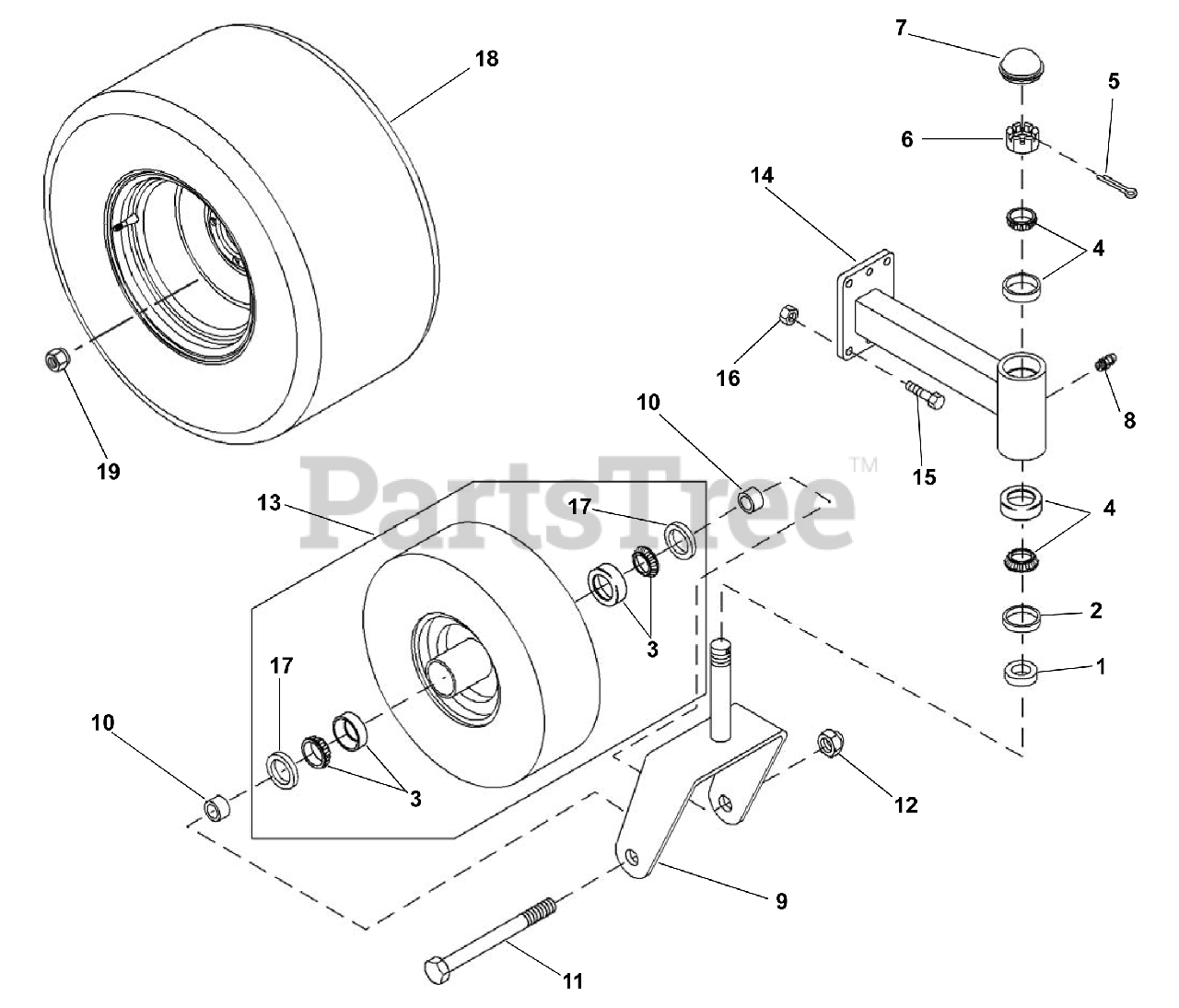

Caster Wheels Parts Diagram

  • Title

1

Ariens 00885100

SPACER, CASTER BUSHING

$

$

Not available

2

Ariens 05600008

SEAL, WHEEL BEARING
(Superseded to E14625)

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 05400020

BEARING ASSEMBLY, CASTER WHL C
(Superseded to D38035)

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 00944500

SPINDLE BEARING KIT, CUP & CNE

$

$

Not available

5

Ariens 06700008

PIN,COTTER,DIN94,3.2X50-ST-ZN

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06531200

NUT HEX SLOTTED 1-14 G5 ZC

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 00955200

CAP, DUST
(Superseded to 05117700)

$6.49

$

In Stock, only 2 left!

0

8

Ariens 00954800

FITTING, LUBRICATION

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 00877000

YOKE
(Superseded to 00200210)

$232.99

$

Usually ships in 4-12 days

0

10

Ariens 00956600

SPACER, CASTER WHEEL
(Superseded to D33007)

$18.99

$

Usually ships in 4-12 days

0

11

Ariens 05900017

BLT-HEX M6X1.0X12 YZ EP30

$6.99

$

Usually ships in 4-12 days

0

12

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, Qty 5

0

13

Ariens 07100311

CASTER WHEEL AND TIRE ASSEMBLY
(Superseded to 00200013)

$128.99

$

Usually ships in 4-12 days

0

14

Ariens 00882400

CASTER ARM
(Superseded to 00200209)

$349.99

$

Usually ships in 4-12 days

0

15

Ariens 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 05600009

SEAL
(Superseded to D38065)

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 07100312

WHEEL & TIRE ASMBLY, REAR 48"D
(Superseded to 00200011)

$

$

Not available

19

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 17

0
