994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Engine Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

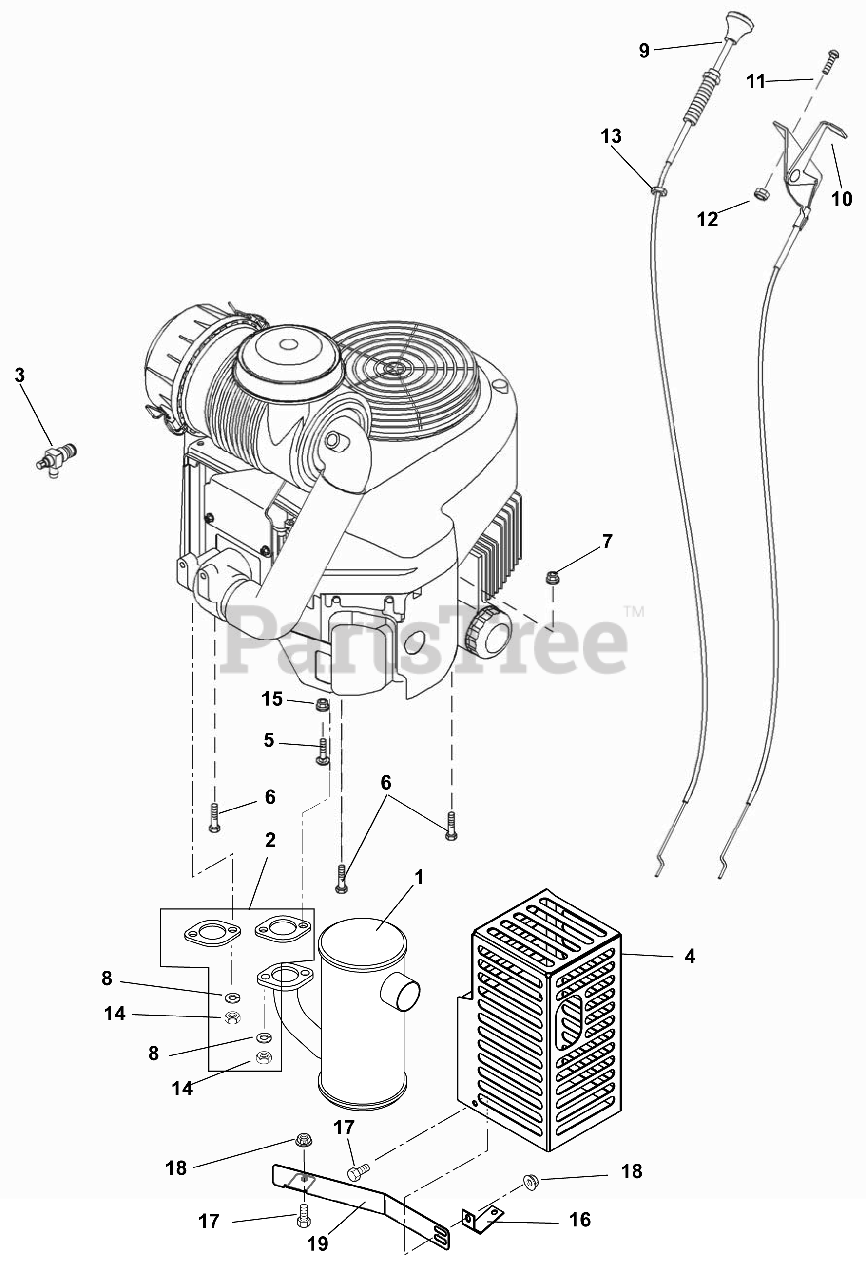

Engine Parts Diagram

  • Title

1

Ariens 00882800

MUFFLER
(Superseded to TCA15321)

$347.99

$

Usually ships in 4-12 days

0

2

Ariens 00872600

GASKET KIT, INCLUDES ITEMS 2,8
(Superseded to 00191601)

Note: (Includes Gaskets, items 8 and 14)

$54.99

$

Usually ships in 4-12 days

0

3

Ariens 00883700

OIL DRAIN FITTING
(Superseded to TCA16240)

$

$

Not available

4

Ariens 03394251

WMT-MUFFLER GUARD - PRO-STANCE

$

$

Not available

5

Ariens 06200014

BLT, RDHDSQNK, M8X1.25X40

$

$

Not available

6

Ariens 05900116

CAP SCREW, ENG MNTING M8 X 1.2

$

$

Not available

7

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 00876800

CABLE, CHOKE
(Superseded to D18427)

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 00881800

CABLE, THROTTLE
(Superseded to TCA15051)

$21.99

$

Usually ships in 4-12 days

0

11

Ariens 06200013

@BLT-HEX 8-32 X .5 YWZC

$

$

Not available

12

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

14

Ariens 06538600

NUT-HEX M8-1.25 YWZC

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06542300

NUT-LK-FLG M8-1.25 YWZC
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 04935951

BRACKET, MUFFLER GUARD

$

$

Not available

17

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

18

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03398251

SHIELD - MANIFOLD

$

$

Not available
