994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Hydraulic Pumps Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

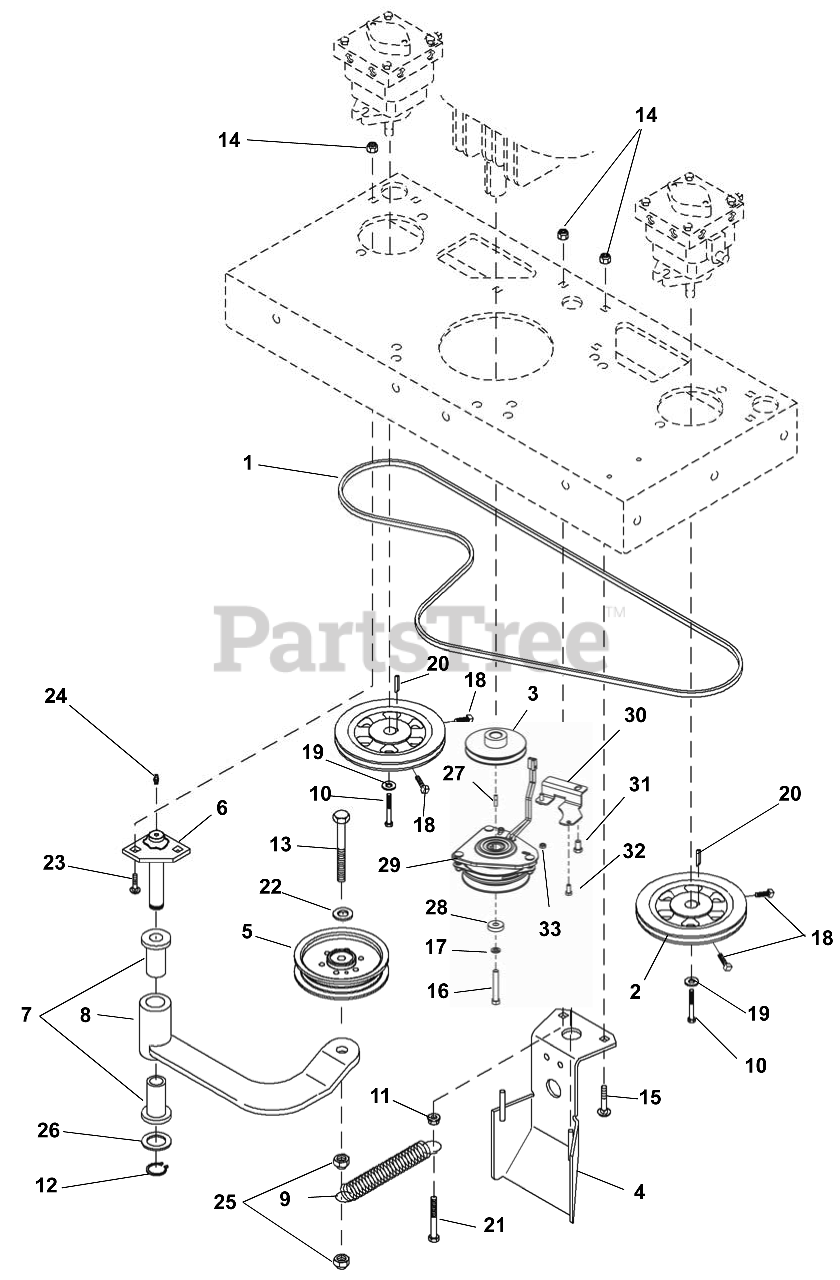

Hydraulic Pumps Parts Diagram

  • Title

1

Ariens 07200118

V-BELT
(Superseded to GDU10025)

$45.99

$

In Stock, only 2 left!

0

2

Ariens 07300116

PULLEY, RH PUMP SET SCREW INCL
(Superseded to TCA15316)

$47.99

$

Usually ships in 4-12 days

0

3

Ariens 07300113

PULLEY, ENGINE DRIVE

$

$

Not available

4

Ariens 00956700

BRACKET
(Superseded to 00200937)

$

$

Not available

5

Ariens 07300111

IDLER
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

6

Ariens 07300114

IDLER POST

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 05500126

BUSHING
(Superseded to D18403)

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 07300115

IDLER ARM

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 08300037

SPRING, IDLER
(Superseded to D18071)

$11.99

$

Usually ships in 4-12 days

0

10

Ariens 05900124

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

11

Ariens 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

12

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

13

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

16

Ariens 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$6.99

$

In Stock, only 3 left!

0

17

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

18

Ariens 06000002

SET SCREW

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06600005

KEY, SPECIAL M5 X 28
(Superseded to D18067)

$

$

Not available

21

Ariens 05900113

CAP SCREW, SPRING ANCHOR M10 X

$

$

Not available

22

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

24

Ariens 00878300

LUBRICATION FITTING

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05500138

BUSHING, 3/4 MACHINE

$

$

Not available

27

Ariens 06600007

KEY, .250 X .250 X .995 TPR
(Superseded to D18145)

$7.49

$

Usually ships in 4-12 days

0

28

Ariens 00875500

SPACER, PTO CLUTCH
(Superseded to D18056)

$20.99

$

Usually ships in 4-12 days

0

29

Ariens 00899800

CLUTCH ASSY, OGURA
(Superseded to 00200665)

$387.99

$

In Stock, only 1 left!

0

30

Ariens 00899900

PLATE, CLUTCH DOG
(Superseded to 00200666)

$51.99

$

Usually ships in 4-12 days

0

31

Ariens 05900121

@BLT-HEX .44-14X.75 GR5 YWZC

$

$

Not available

32

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

33

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0
