994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Hydrostatics Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

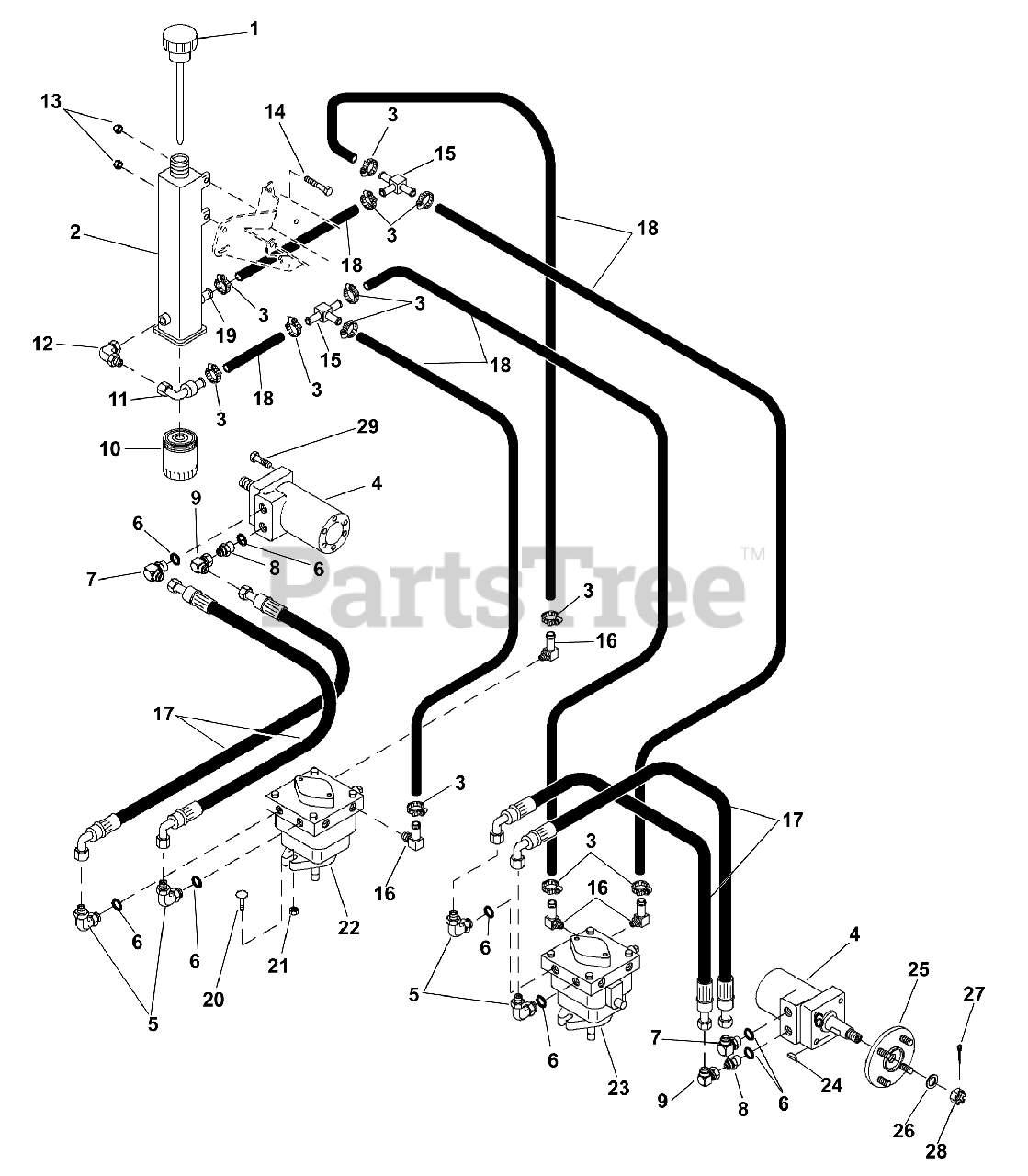

Hydrostatics Parts Diagram

  • Title

1

Ariens 00882500

CAP
(Superseded to TCA15122)

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

3

Ariens 00876600

HOSE CLAMP

$

$

Not available

4

Ariens 00882300

WHEEL MOTOR

$

$

Not available

5

Ariens 00954100

FITTING, INCLUDES O-RING
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05600007

O-RING, INCLUDED WITH FITTING

$

$

Not available

7

Ariens 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

8

Ariens 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$13.99

$

In Stock, only 2 left!

0

9

Ariens 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

10

Ariens 00669300

ELEMENT, OIL FILTER

$26.99

$

In Stock, Qty 8

0

11

Ariens 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

13

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 05967600

BLT-HEX M10 X 1.5X20 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

16

Ariens 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

18

Ariens 00887400

HOSE, RETURN 25 FT BLK CUT LEN
(Superseded to TY22552)

$

$

Not available

19

Ariens 00954400

ADAPTER, STRAIGHT FITTING

$5.99

$

Usually ships in 4-12 days

0

20

Ariens 06200016

CARRIAGE BOLT, PUMP MNTNG M10X

$

$

Not available

21

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 00881400

PUMP, RH
(Superseded to TCA14965)

$841.99

$

Usually ships in 4-12 days

0

23

Ariens 00881500

PUMP, LH
(Superseded to TCA14966)

$841.99

$

Usually ships in 4-12 days

0

24

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

25

Ariens 00955400

HUB, REAR WHEEL
(Superseded to 00200954)

$241.99

$

Usually ships in 4-12 days

0

26

Ariens 00953300

SHIM, .020X.787X1.102
(Superseded to 24M7158)

$15.99

$

Usually ships in 4-12 days

0

27

Ariens 06714100

@PIN-CTR .125X2.00 YWZC

$

$

Not available

28

Ariens 06500037

CASTLE NUT

$

$

Not available

29

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

Ariens 00879100

TIE STRAPS

$

$

Not available
