994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Main Frame Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

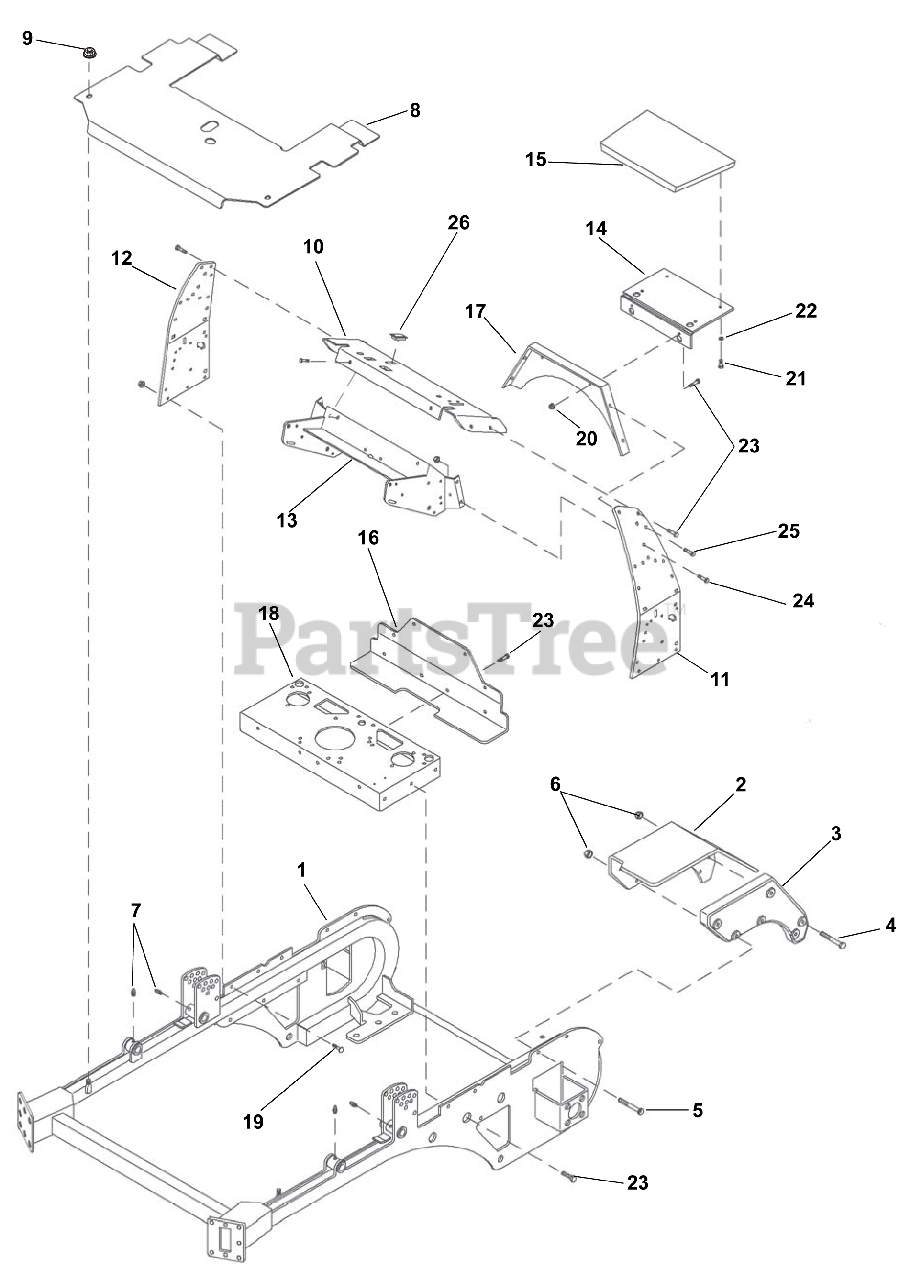

Main Frame Parts Diagram

  • Title

1

Ariens 00881300

FRAME, W/ 48"-52" DECK

$

$

Not available

2

Ariens 00874900

FENDER, LEFT
(Superseded to 00893700)

$59.99

$

Usually ships in 4-12 days

0

Ariens 00874800

FENDER, RIGHT
(Superseded to 00893600)

$59.99

$

Usually ships in 4-12 days

0

3

Ariens 00885800

WEIGHT
(Superseded to 00200038)

$

$

Not available

4

Ariens 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

5

Ariens 05976800

BLT, HEX M8-1.25X70 YWZC

$

$

Not available

6

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 00878300

LUBRICATION FITTING

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 00883000

DECK SHIELD ASMBLY, 48"
(Superseded to 00894200)

$59.99

$

Usually ships in 4-12 days

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

10

Ariens 00880800

CONTROL CONSOLE
(Superseded to 00894600)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 00881200

SIDE BRACKET, LEFT

$

$

Not available

12

Ariens 00881100

SIDE BRACKET, RIGHT

$

$

Not available

13

Ariens 00882900

HANDLE MOUNT
(Superseded to 00895100)

$59.99

$

Usually ships in 4-12 days

0

14

Ariens 00875000

PLATE, THIGH PAD

$

$

Not available

15

Ariens 00881900

PAD, THIGH
(Superseded to 00200152)

$

$

Not available

16

Ariens 00883200

SHIELD
(Superseded to 00895000)

$39.99

$

Usually ships in 4-12 days

0

17

Ariens 00874700

PLATE
(Superseded to D15305)

$85.99

$

Usually ships in 4-12 days

0

18

Ariens 00879800

ENGINE/TRACTION DECK
(Superseded to 00894100)

$82.99

$

Usually ships in 4-12 days

0

19

Ariens 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

20

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

22

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

23

Ariens 05967600

BLT-HEX M10 X 1.5X20 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

26

Ariens 00955000

3PLUG, EURO STYLE, OPTIONAL LI

$

$

Not available
