994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Mower Deck Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

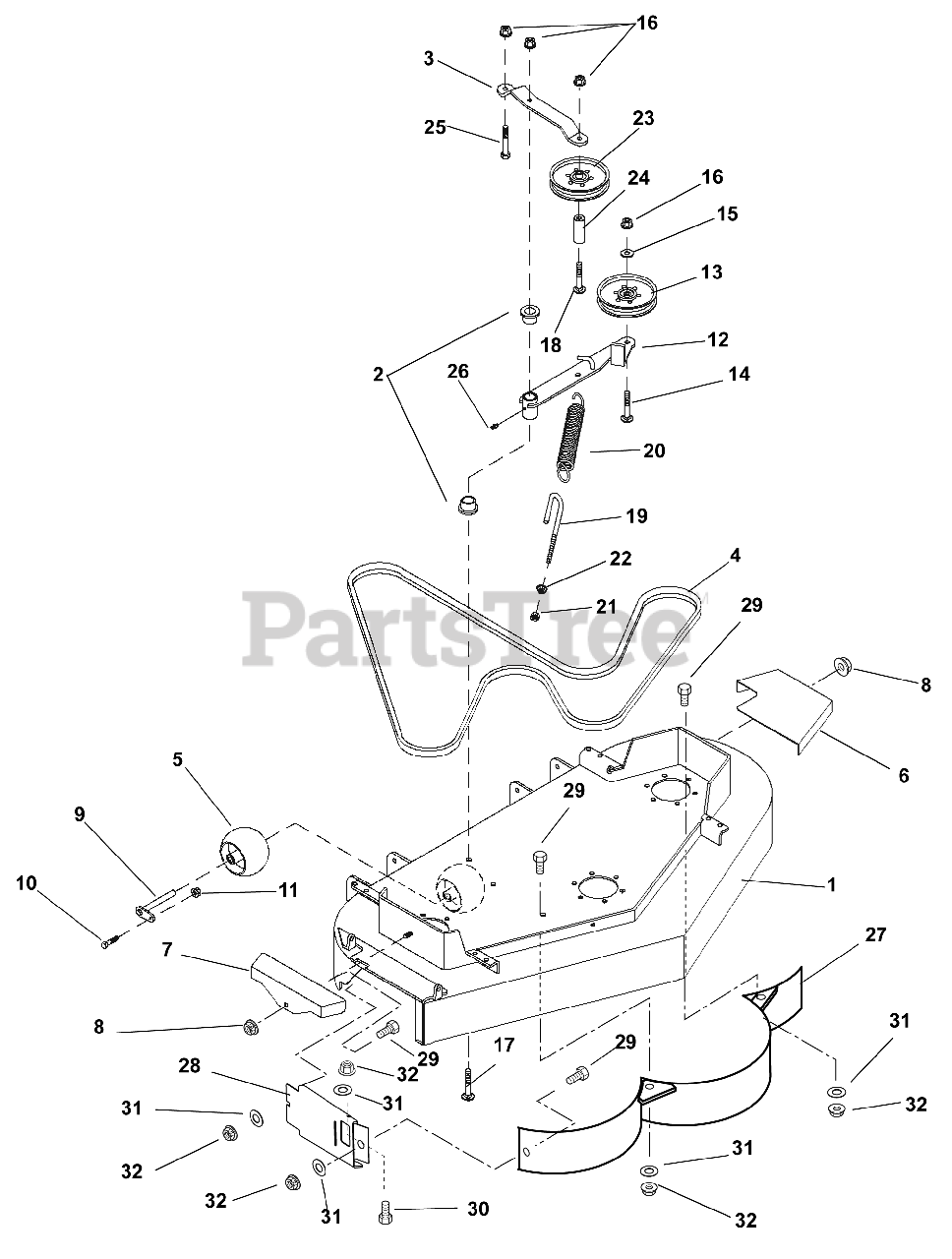

Mower Deck Parts Diagram

  • Title

1

Ariens 00883400

MOWER DECK, 48" S/O
(Superseded to 00200220)

$

$

Not available

2

Ariens 05500128

BUSHING
(Superseded to TCU14540)

$14.99

$

Usually ships in 4-12 days

0

3

Ariens 00949900

STRAP, IDLER PULLEY
(Superseded to TCU18344)

$39.99

$

Usually ships in 4-12 days

0

4

Ariens 07200119

BELT, ENGINE-TO-BLADES, 48"DEC
(Superseded to TCU18847)

$112.99

$

Usually ships in 4-12 days

0

5

Ariens 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$14.99

$

In Stock, only 4 left!

0

6

Ariens 00950100

COVER, LH 48/52 DECK BELT S/O
(Superseded to 00200203)

$90.99

$

Usually ships in 4-12 days

0

7

Ariens 00885700

BELT COVER, RH 48" DECK
(Superseded to 00200202)

$

$

Not available

8

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 17

0

9

Ariens 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

10

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Ariens 06500035

NUT-1/4" FLANGE PREVAILING TOR

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 07300117

ARM, IDLER ENGINE-TO-BLADE
(Superseded to TCA15346)

$142.99

$

Usually ships in 4-12 days

0

13

Ariens 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$79.99

$

In Stock, only 1 left!

0

14

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

18

Ariens 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

19

Ariens 00876900

J-HOOK
(Superseded to D23058)

$5.99

$

Usually ships in 4-12 days

0

20

Ariens 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

21

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

22

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

23

Ariens 07300112

PULLEY, FLAT BLADE-TO-BLADE
(Superseded to D28050)

$29.99

$

In Stock, Qty 10

0

24

Ariens 00886100

SPACER, BLADE-TO-BLADE PULLEY
(Superseded to TCU18742)

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

26

Ariens 00954800

FITTING, LUBRICATION

$3.49

$

Usually ships in 4-12 days

0

27

Ariens 01998800

WLDMT, 48" MULCH BAFFLE
(Superseded to 05180251)

$609.99

$

Usually ships in 4-12 days

0

28

Ariens 01999000

PLATE, 48" MULCH BLOCKER
(Superseded to 00200921)

$73.99

$

Usually ships in 4-12 days

0

29

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

31

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
