994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

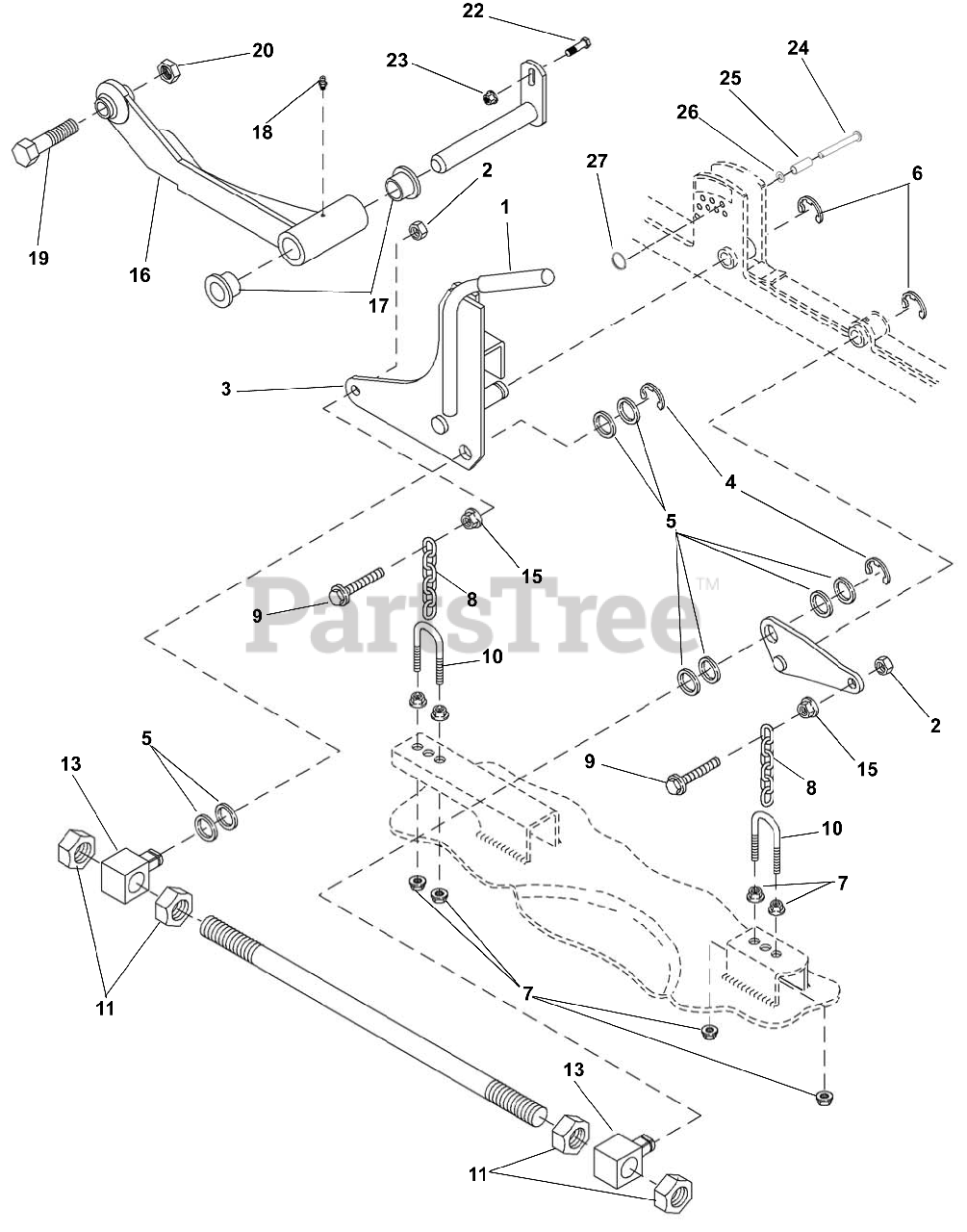

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 00876000

GRIP
(Superseded to D18225)

$

$

Not available

2

Ariens 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

3

Ariens 00877800

LIFT ARM, LH REAR
(Superseded to GDA10010)

$

$

Not available

3

Ariens 00877700

LIFT ARM, RH REAR

$

$

Not available

4

Ariens 00879500

SNAP RING

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 06400029

WASHER,JDS24-.891X1.375X.048-S
(Superseded to 24H1413)

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 00879600

SNAP RING

$

$

Not available

7

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

8

Ariens 00872100

CHAIN, DECK LIFT
(Superseded to 00150749)

$16.99

$

Usually ships in 4-12 days

0

9

Ariens 05955200

BLT M10 X 1.5X40 YWZC

$

$

Not available

10

Ariens 05900118

U-BOLT

$

$

Not available

11

Ariens 06537600

NUT-HEX .75-10 YWZC

$

$

Not available

12

Ariens 00884300

ROD, DECK LIFT

$

$

Not available

13

Ariens 00873400

SWIVEL
(Superseded to 00200075)

$

$

Not available

14

Ariens 00877600

LIFT ARM, LH FRONT

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 00877500

LIFT ARM, RH FRONT

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

16

Ariens 00880500

THRUST ARM, LH, 48" DECK
(Superseded to TCA14877)

$

$

Not available

16

Ariens 00879900

THRUST ARM, RH, 48" DECK

$39.99

$

Usually ships in 4-12 days

0

17

Ariens 05500127

BUSHING

$

$

Not available

18

Ariens 00954800

FITTING, LUBRICATION

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 05961700

BLT-HEX .75-10X3.00 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 06537600

NUT-HEX .75-10 YWZC

$

$

Not available

21

Ariens 00879700

PIVOT PIN, THRUST ARM
(Superseded to TCA13292)

$116.99

$

Usually ships in 4-12 days

0

22

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

23

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

24

Ariens 06800007

PIN, CLEVIS
(Superseded to M137523)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 05500129

BUSHING

$

$

Not available

26

Ariens 00954700

PUSHNUT, M12 BOLT RETAINER

$

$

Not available

27

Ariens 00879300

RING, LOCKING
(Superseded to M88183)

$

$

Not available
