994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

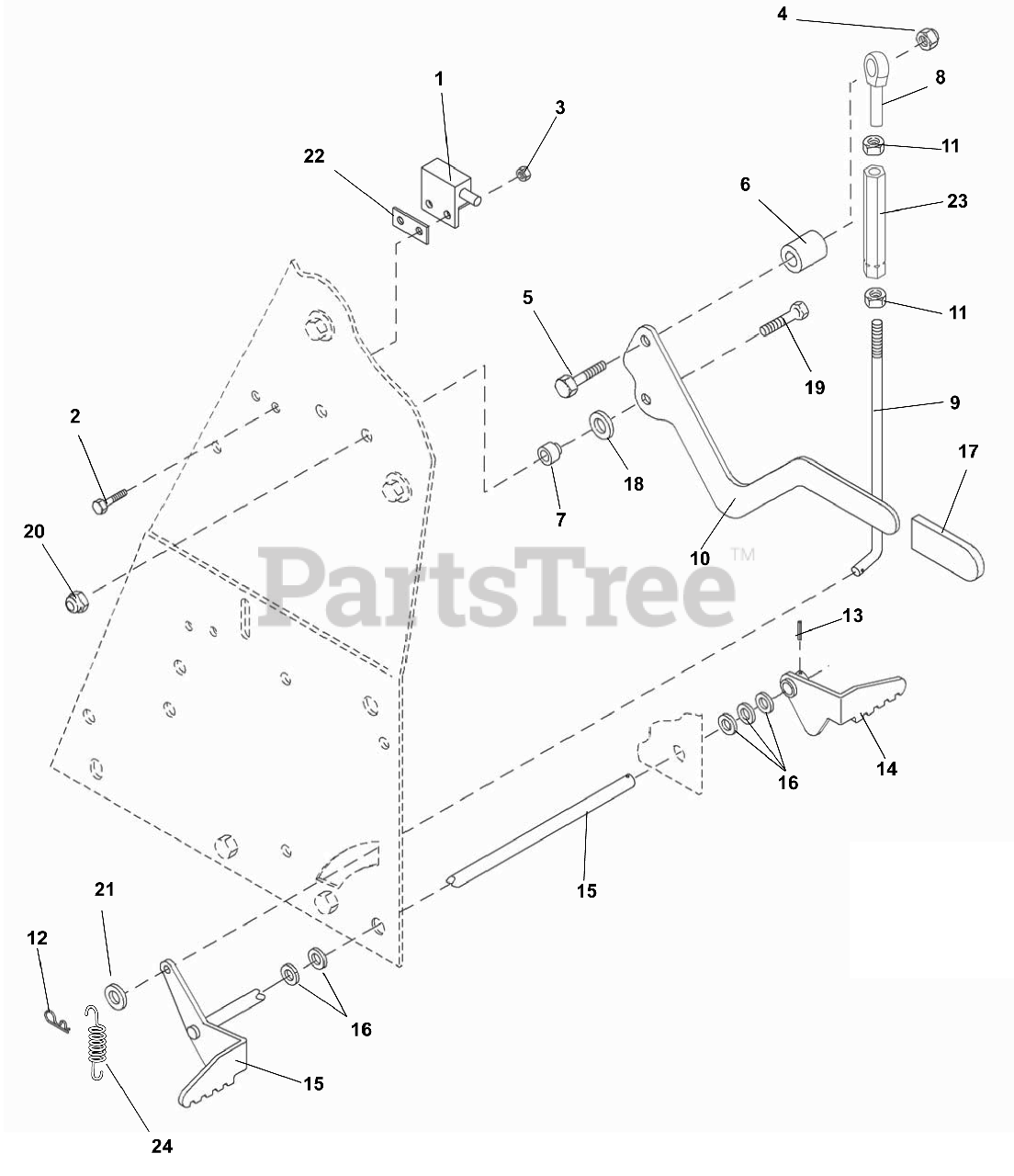

Parking Brake Parts Diagram

  • Title

1

Ariens 00875300

SWITCH
(Superseded to D18038)

$4.99

$

Usually ships in 4-12 days

0

2

Ariens 05900110

CAP SCREW, M5 X 0.8 X 20

$

$

Not available

3

Ariens 06522100

NUT-HEX M5X.8 PL

$

$

Not available

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

6

Ariens 00883800

SPACER

$

$

Not available

7

Ariens 05500139

BUSHING
(Superseded to GDU10037)

$

$

Not available

8

Ariens 00953700

END, LH TIE ROD

$

$

Not available

9

Ariens 00887300

ROD
(Superseded to TCU20956)

$

$

Not available

10

Ariens 00874100

LEVER

$

$

Not available

11

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06700010

PIN, HAR .094X1.53 5/16-1/2 Y

$

$

Not available

13

Ariens 05800004

PIN, SPRING

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 03398751

WMT, RH BRAKE ARM

$

$

Not available

15

Ariens 03398651

WMT, LH BRAKE SHAFT

$

$

Not available

16

Ariens 06400029

WASHER,JDS24-.891X1.375X.048-S
(Superseded to 24H1413)

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 00875800

GRIP
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06400022

WASHER, 17/32" X 15/16" X 0.06
(Superseded to 24H1341)

$7.99

$

Usually ships in 4-12 days

0

19

Ariens 05955200

BLT M10 X 1.5X40 YWZC

$

$

Not available

20

Ariens 06542400

NUT-LK-NYL M10-1.5 YWZC

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 00879400

SPACER PLATE

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 00887200

TURN BUCKLE

$

$

Not available

24

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0
