994300 (1948 FL) - Ariens Pro-Stance 48" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Platform Parts Diagram

Pro-Stance 48" Stand-On Mower, 19hp Kawasaki

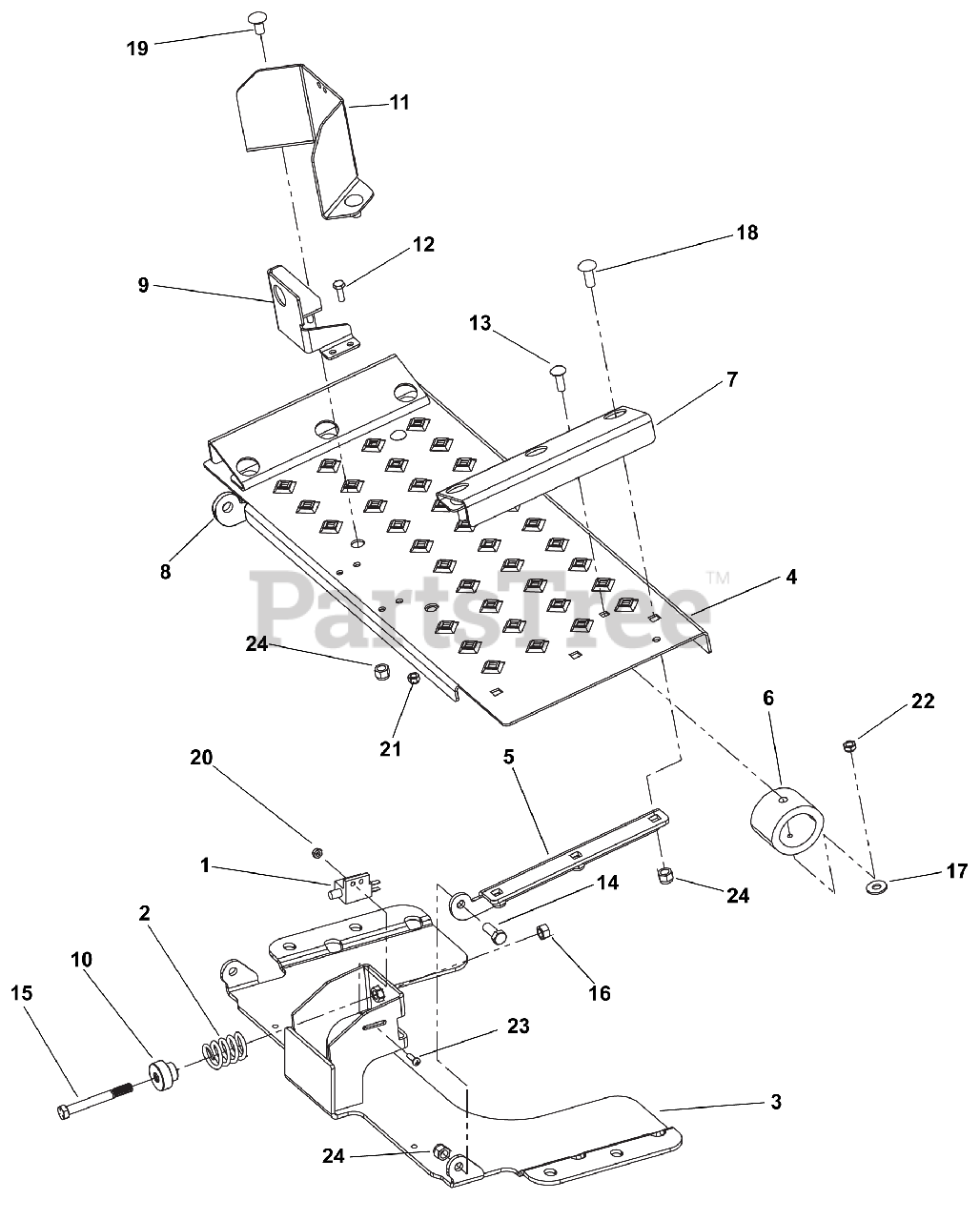

Platform Parts Diagram

  • Title

1

Ariens 00875300

SWITCH
(Superseded to D18038)

$4.99

$

Usually ships in 4-12 days

0

2

Ariens 08300038

SPRING
(Superseded to D38128)

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 00956800

WLDMT, PLATFORM
(Superseded to 00200299)

$

$

Not available

4

Ariens 00897100

PLATE, PLATFORM
(Superseded to 00200618)

$

$

Not available

5

Ariens 00897200

PLATE, PLATFORM TAB
(Superseded to 00200619)

$

$

Not available

6

Ariens 00941800

BUMPER, MINER GBR-6
(Superseded to 00200655)

$

$

Not available

7

Ariens 00938300

WEDGE, PLATFORM

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 00938400

PLATE, PLATFORM TAB LH
(Superseded to 00200693)

$

$

Not available

9

Ariens 00941300

ANCHOR, OPC

$

$

Not available

10

Ariens 06400027

WASHER, SPRING Y
(Superseded to 00200770)

$

$

Not available

11

Ariens 00956900

COVER, OPC

$

$

Not available

12

Ariens 05946400

BLT-HEX M12 X 1.75X25 YWZC

$

$

Not available

13

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

14

Ariens 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

17

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

18

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

22

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

23

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 16

0

24

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
