994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Deck Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

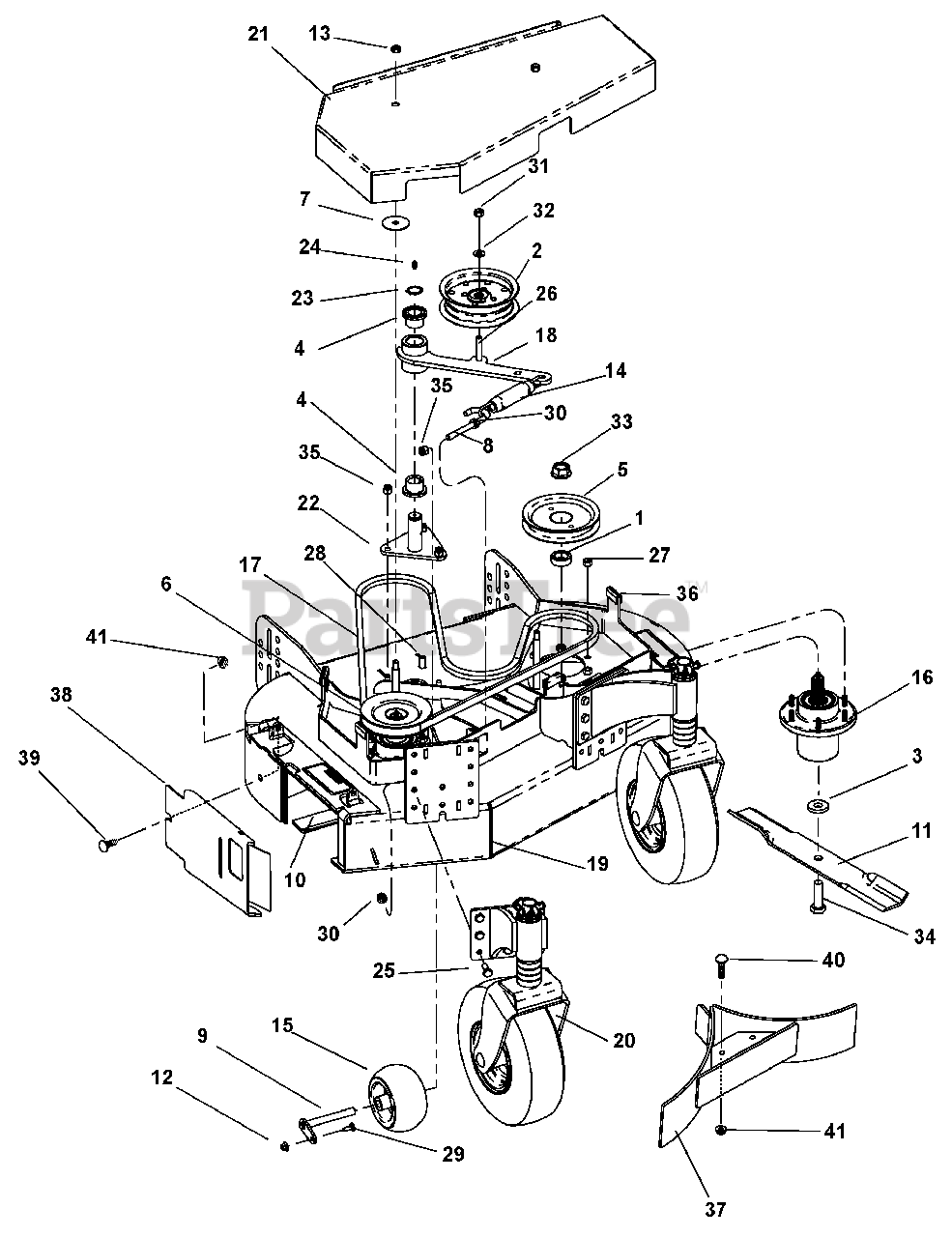

Deck Assembly Parts Diagram

  • Title

1

Ariens 00874200

SPACER, PULLEY
(Superseded to D13024)

$10.99

$

In Stock, only 2 left!

0

2

Ariens 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$79.99

$

In Stock, only 3 left!

0

3

Ariens 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$6.99

$

In Stock, only 3 left!

0

4

Ariens 05400019

BALL BEARING
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 07300108

PULLEY, CUTTER HOUSING 52" DEC
(Superseded to 07329667)

$90.99

$

In Stock, only 1 left!

0

6

Ariens 07300109

PULLEY, CUTTER HOUSING 48" DEC
(Superseded to D18209)

$91.99

$

In Stock, only 4 left!

0

7

Ariens 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00876900

J-HOOK
(Superseded to D23058)

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

10

Ariens 00303044

BLADE-MOWER 16.50" LOW-LIFT

$

$

Not available

11

Ariens 00303052

BLADE-MOWER 18.00" LOW-LIFT

$

$

Not available

12

Ariens H122207

NUT-1/4" FLANGE PREVAILING TOR

$

$

Not available

13

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

15

Ariens 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$14.99

$

In Stock, only 4 left!

0

16

Ariens 00872700

SPINDLE ASSEMBLY, INCLUDES ITE
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

17

Ariens 00201010

BELT, HB 80.3 EL AMD OHR

$70.99

$

In Stock, only 2 left!

0

18

Ariens 00201145

WLDT, IDLER ARM

$60.99

$

Usually ships in 4-12 days

0

19

Ariens 00201152

WLDT, 34" DECK

$

$

Not available

20

Ariens 00201174

ASSY, FR WHEEL CASTER

$

$

Not available

21

Ariens 00201175

SHIELD, DECK 34

$

$

Not available

22

Ariens 00201178

WLDT, IDLER PIVOT

$

$

Not available

23

Ariens 00424390

SNAP RING, 1.00 X .042 EXT
(Superseded to 05700160)

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 00960051

BOLT, 3/8-16X2.25 HEX 5 Y
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 00960502

NUT, 3/8-16 STD HEX GR5 Y

$

$

Not available

28

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

29

Ariens 00963095

BOLT, 1/4-20X.750 CRG 5 Y
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 00964022

LOCKNUT, 3/8-16 CROWN Y

$

$

Not available

32

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 00967333

NUT, 3/4-16 FLANGE GR8 Y

$

$

Not available

34

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

35

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

36

Ariens 00999538

TRIM, LOCK 1/4" EDGE

$5.99

$

Usually ships in 4-12 days

0

37

Ariens 00201058

WLDT, BAFFLE

$

$

Not available

38

Ariens 00201055

WLDT, BAFFLE AND END PLATE

$

$

Not available

39

Ariens 00963053

BOLT, 3/8-16X1.25 CRG 5 Y

$

$

Not available

40

Ariens 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available
