994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Footplate and Console Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

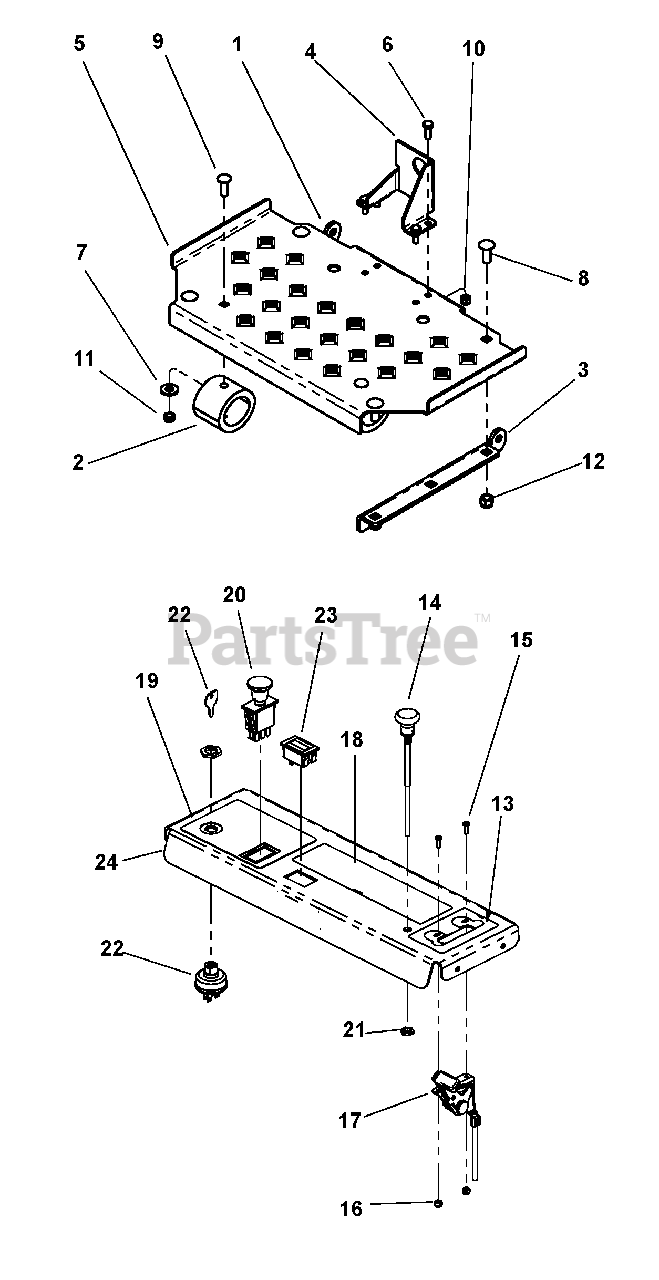

Footplate and Console Parts Diagram

  • Title

1

Ariens 00200619

PLATE, PLATFORM TAB

$

$

Not available

2

Ariens 00200655

BUMPER, MINER GBR-6

$

$

Not available

3

Ariens 00200693

PLATE, PLATFORM TAB LH

$

$

Not available

4

Ariens 00200767

ANCHOR, OPC

$

$

Not available

5

Ariens 00201136

PLATFORM

$

$

Not available

6

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

7

Ariens 00960701

WASHER, .313 REG FLAT Y
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

8

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

9

Ariens 00963074

BOLT, 5/16-18X1.00 CRG 2 Y

$

$

Not available

10

Ariens 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

11

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

13

Ariens 00875100

DECAL, THROTTLE
(Superseded to D18021)

$27.99

$

Usually ships in 4-12 days

0

14

Ariens 00876800

CABLE, CHOKE
(Superseded to D18427)

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 06200013

@BLT-HEX 8-32 X .5 YWZC

$

$

Not available

16

Ariens M63431

#8.32 ELASTIC STOP NUT

$

$

Not available

17

Ariens 00881800

CABLE, THROTTLE
(Superseded to TCA15051)

$21.99

$

Usually ships in 4-12 days

0

18

Ariens 00884000

DECAL, GENERAL CAUTION

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 00885000

DECAL, PTO/IGNITION
(Superseded to 00111886)

$

$

Not available

20

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

In Stock, only 1 left!

0

21

Ariens 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.49

$

In Stock, only 1 left!

0

22

Ariens 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

In Stock, only 4 left!

0

23

Ariens 00192296

METER, HOUR - LCD ALT. (ENM)

Note: (ENM)

$68.99

$

Usually ships in 4-12 days

0

24

Ariens 00200607

TOP, CONSOLE

$

$

Not available
