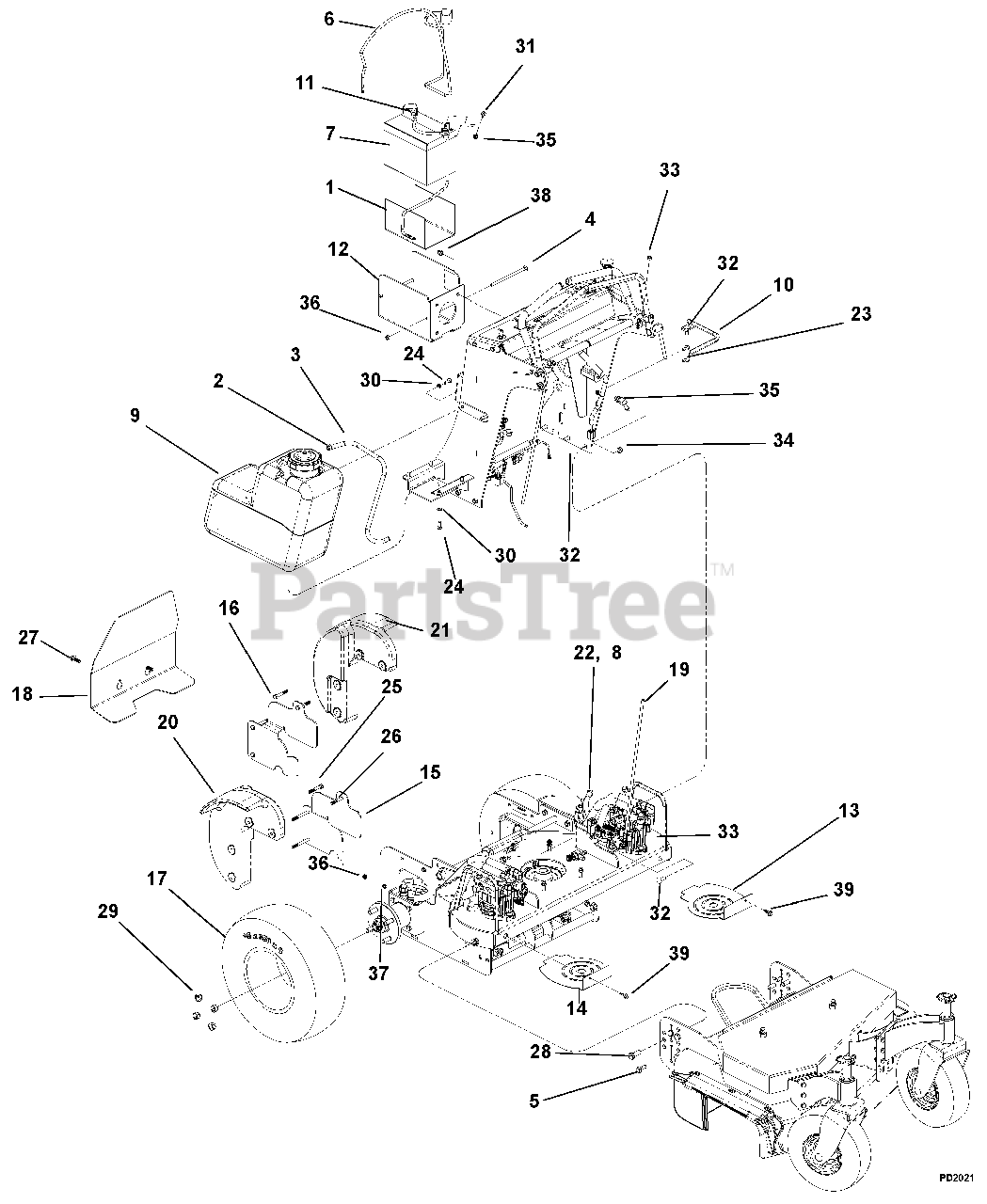

994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Main Frame Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

Main Frame Parts Diagram

  • Title

1

Ariens D28159

STRIP, RUBBER

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 06900108

CLAMP
(Superseded to 03278800)

Note: (Red) #

$1.49

$

In Stock, Qty 7

0

3

Ariens TCU21265

HOSE, 1/4" ID LOW PERM FUEL 50

$

$

Not available

4

Ariens 03H1832

BOLT, 5/16X6 LONG NK RD HD D-Z

$

$

Not available

5

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 00181148

CABLE, BATTERY STARTER 48"

$38.99

$

Usually ships in 4-12 days

0

7

Ariens 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

8

Ariens 00200658

PIN, CVS SPG 3/8" YOKE SPEC Y

$

$

Not available

9

Ariens 09424600

TANK-FUEL 34P/S W/CAP W/O LOGO

$

$

Not available

10

Ariens 00201012

WLDMT, RESERVOIR GUARD

$

$

Not available

11

Ariens 00201019

CABLE, BATTERY GROUND, 25"

$

$

Not available

12

Ariens 00201023

CONSOLE BATTERY BRACKET

$

$

Not available

13

Ariens 00201092

SHIELD, LH PUMP

$

$

Not available

14

Ariens 00201093

SHIELD, RH PUMP

$

$

Not available

15

Ariens 00201094

SHIELD, RH MOTOR

$

$

Not available

16

Ariens 00201095

SHIELD, LH MOTOR

$

$

Not available

17

Ariens 00201150

ASSY, TIRE/WHL 18-6.50-8

$136.99

$

Usually ships in 4-12 days

0

18

Ariens 00201191

SHIELD, ENGINE

$

$

Not available

19

Ariens 00201194

ROD, CONTROL 5/16-24 X 22.75
(Superseded to AA201194)

$

$

Not available

20

Ariens 00201202

RH CAST WEIGHT MACHINED

$

$

Not available

21

Ariens 00201204

LH CAST WEIGHT MACHINED

$

$

Not available

22

Ariens 00251907

YOKE, 3/8-24 RH ADJUSTABLE

$15.99

$

Usually ships in 4-12 days

0

23

Ariens 00960001

BOLT, 1/4-20X.750 HEX 5 Y

$

$

Not available

24

Ariens 00960022

BOLT, 5/16-18X.750 HEX 5 Y

$

$

Not available

25

Ariens 00960027

BOLT, 5/16-18X2.00 HEX 5 Y
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

26

Ariens 00960031

BOLT, 5/16-18X3.00 HEX 5 Y
(Superseded to 05901933)

$3.99

$

In Stock, Qty 5

0

27

Ariens 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00960601

ARM, IDLER PIVOT

$

$

Not available

31

Ariens 00963001

PLATE, ENGINE MOUNT

$

$

Not available

32

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

33

Ariens 00964003

NUT, 5/16-24 STD HEX GR5 Y

$

$

Not available

34

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

36

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

37

Ariens 00967192

LOCKNUT, 1/2-13 WHIZ GR5 Y

$

$

Not available

38

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

39

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
