994301 (1934 FX) - Ariens Pro-Stance 34" Stand-On Mower, 19hp Kawasaki (SN: 000101 & Above) Spindle Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, 19hp Kawasaki

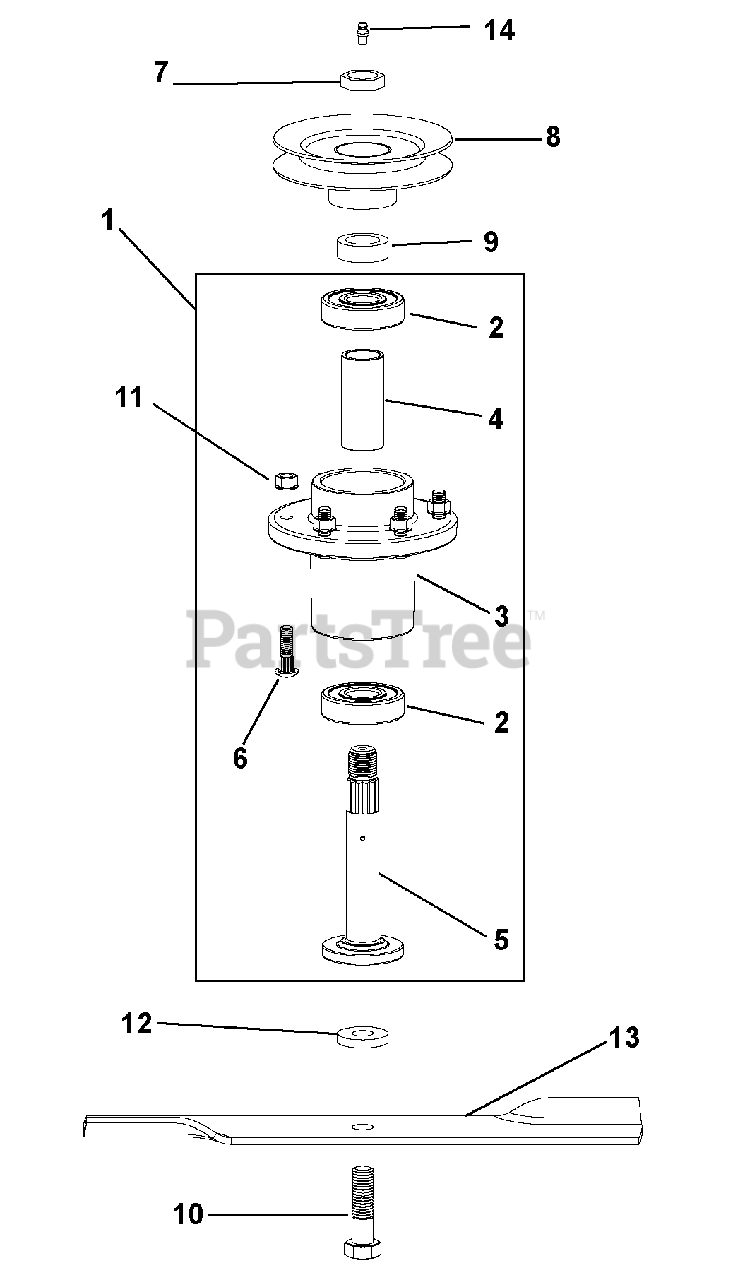

Spindle Assembly Parts Diagram

  • Title

1

Ariens 00872700

SPINDLE ASSEMBLY, INCLUDES ITE
(Superseded to 00200262)

Note: (Includes Items 2, 3, 4, 5, 6, and 14)

$250.99

$

In Stock, only 1 left!

0

2

Ariens 05400019

BALL BEARING
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

3

Ariens 00872800

HOUSING
(Superseded to 00200042)

$87.99

$

Usually ships in 4-12 days

0

4

Ariens 00873000

SPACER, 1.000 X 1.250 X 2.772
(Superseded to 00200044)

$29.99

$

Usually ships in 4-12 days

0

5

Ariens 00872900

SHAFT, SPINDLE
(Superseded to 00200261)

$93.99

$

Usually ships in 4-12 days

0

6

Ariens 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 06500027

NUT, PULLEY (SPECIAL)
(Superseded to D13055)

Note: (Special)

$39.99

$

In Stock, only 1 left!

0

8

Pulley, Cutter Housing - Refer to "Deck Assembly" on page 18

$

$

Not available

9

Ariens 00874200

SPACER, PULLEY
(Superseded to D13024)

$10.99

$

In Stock, only 2 left!

0

10

Ariens 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

12

Ariens 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$6.99

$

In Stock, only 3 left!

0

13

Ariens 00303052

BLADE-MOWER 18.00" LOW-LIFT

$

$

Not available

13

Ariens 00303044

BLADE-MOWER 16.50" LOW-LIFT

$

$

Not available

14

Ariens 00873100

ZERK, GREASE S/O
(Superseded to JD7849)

$3.49

$

Usually ships in 4-12 days

0
