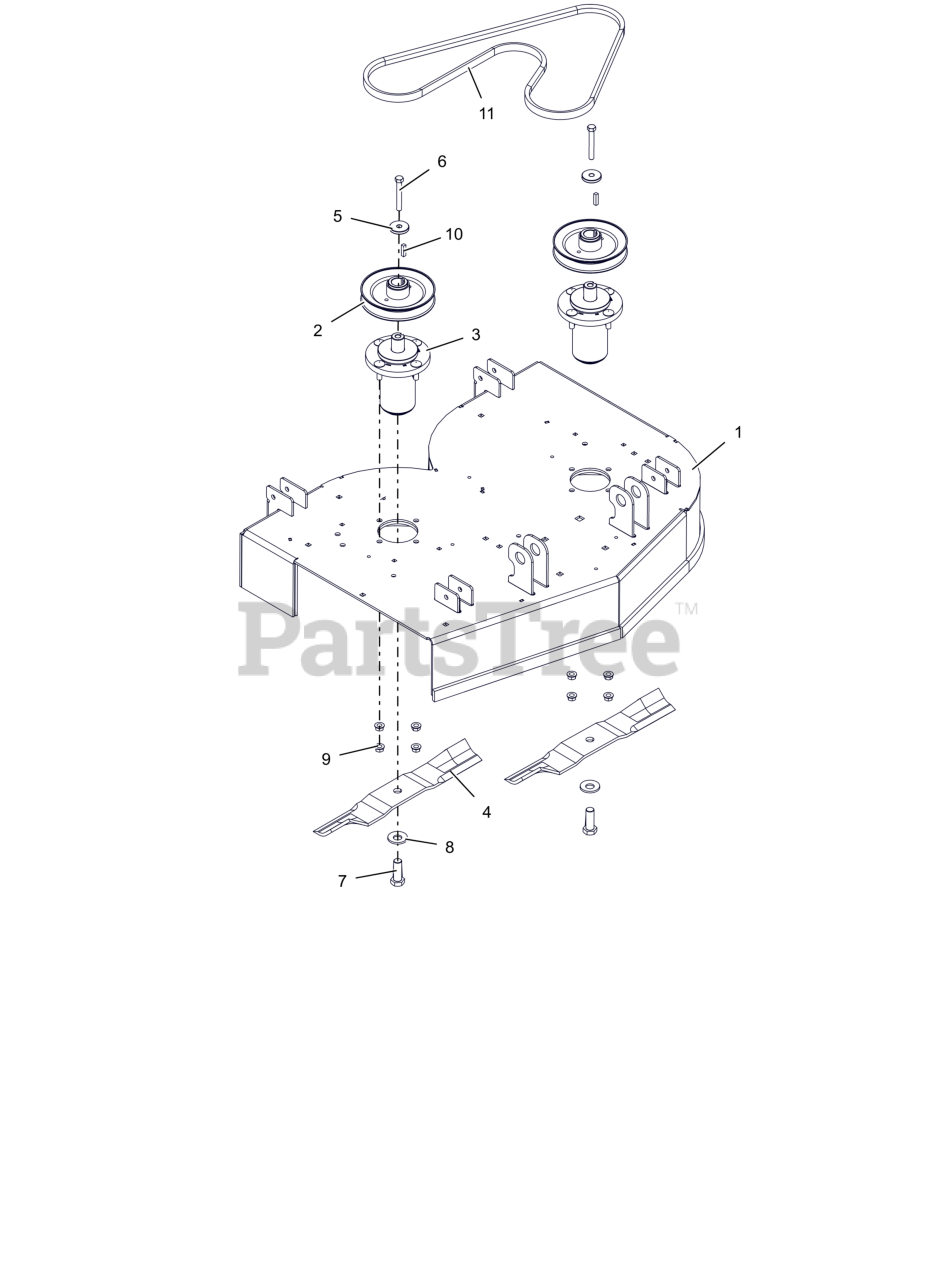

994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck, Belt, Blades and Spindles - 32" Parts Diagram
Arrow 32" Stand-On Mower, Kawasaki FS
Deck, Belt, Blades and Spindles - 32" Parts Diagram
Ariens 30141959
WLDMT, 32" ARROW DECK (ORANGE)
$
$
Currently unavailable
Ariens 07329300
PULLEY- V-1.000 ID X 5.750 OD
$72.99
$
In Stock, only 2 left!
Ariens 58810800
ASM, MAINT FREE ALUM SPINDLE
$361.99
$
In Stock, Qty 20+
Ariens 00450200
BLADE, 16.19" MOWER (HI-LIFT)
$29.99
$
In Stock, Qty 20+
Ariens 04530500
RETAINER, SHEAVE
$9.49
$
In Stock, Qty 11
Ariens 05901813
BLT, HEX .38-16X2.75 G8 ZCC
$1.99
$
In Stock, Qty 12
Ariens 05901822
BLT, HEX .62-18X1.75 G8 ZCC
$3.99
$
In Stock, Qty 20+
Ariens 06445700
WSHR-BLVL .669X1.535X.138
$5.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06611200
KEY, SQ .25X.25X1.00 RC 40-50
$3.49
$
In Stock, Qty 20+
Ariens 07200833
V-BELT, 5L RAW EDGE EPDM
$53.99
$
In Stock, only 2 left!
