994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Deck Idlers and Jackshaft Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

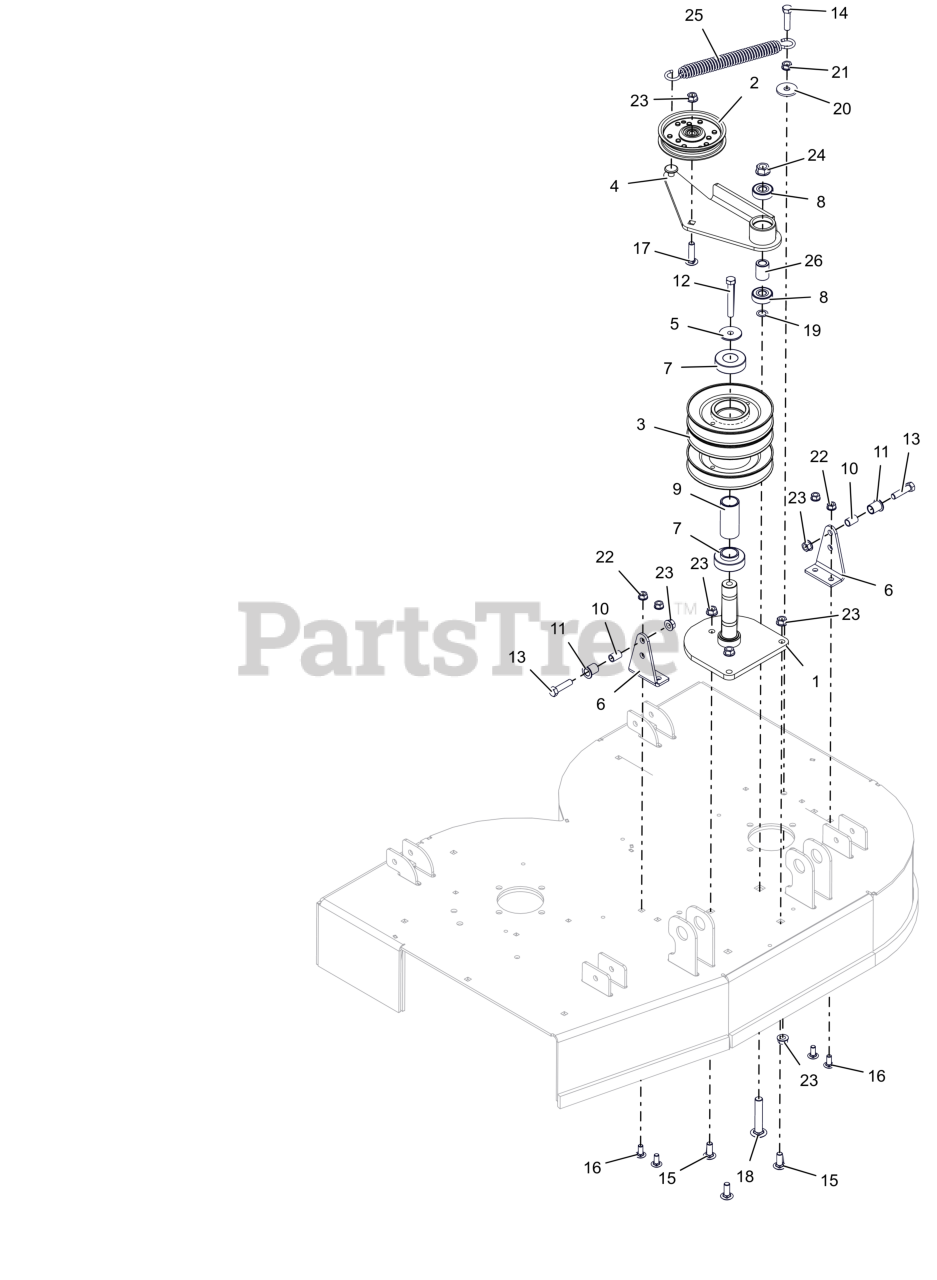

Deck Idlers and Jackshaft Parts Diagram

  • Title

1

Ariens 05276551

WLDMT, JACKSHAFT BASE (BLACK)

$104.99

$

Usually ships in 4-12 days

0

2

Ariens 07300101

ASM, 4" IDLER (.75 WIDE)

$64.99

$

In Stock, Qty 20+

0

3

Ariens 07349800

WLDMT, JACKSHAFT HOUSING

$211.99

$

Usually ships in 4-12 days

0

4

Ariens 30124200

WLDMT, DECK IDLER ARM

$105.99

$

Usually ships in 4-12 days

0

5

Ariens 04656000

RETAINER, JACKSHAFT SPINDLE

$15.99

$

In Stock, only 1 left!

0

6

Ariens 05266951

BRKT, IDLER PIVOT (BLACK)

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 05400730

BEARING- RG 1.00X2.0467X.591

$21.99

$

In Stock, Qty 8

0

8

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

9

Ariens 05501406

SPCR, SLV 1.010 X 1.250 X 2.661

$10.99

$

Usually ships in 4-12 days

0

10

Ariens 05501418

SPCR, SLV .385 X .500 X .750

$5.49

$

In Stock, only 2 left!

0

11

Ariens 05501419

BSHG, FLANGE - .500X.625X.750X.062

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 10

0

14

Ariens 05902104

BLT, HEX 0.375-16X1.5 GR8 ZCC

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06200328

BLT, RHSSN .38-16X1.50 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06200433

BLT,RHSSN .500-13 X 2.75 G5 ZCC

$

$

Not available

19

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$6.49

$

In Stock, Qty 11

0

21

Ariens 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 08300728

SPRING- EXTENSION

$28.99

$

In Stock, Qty 20+

0

26

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
