994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Drive Belt and Clutch Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

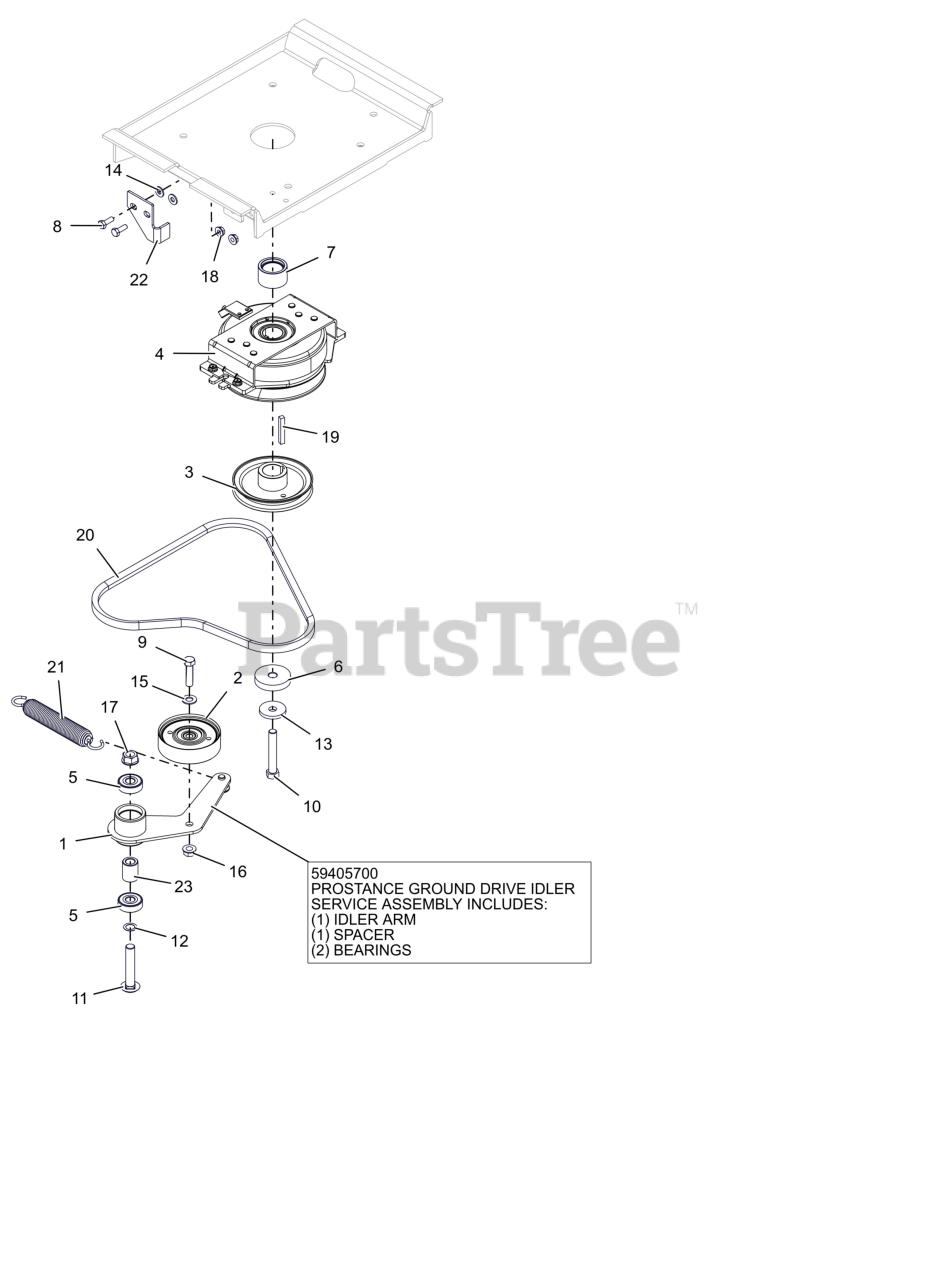

Drive Belt and Clutch Parts Diagram

  • Title

1

Ariens 05252100

WLDMT, IDLER ARM

$58.99

$

Usually ships in 4-12 days

0

1

Ariens 59405700

PROSTANCE GROUND DRIVE IDLER ASSEMBLY

Note: Component Service Assembly includes items 1, 5 and 23

$73.99

$

In Stock, only 2 left!

0

2

Ariens 07341100

IDLER- FLAT 3.5" NO FLANGES

$128.99

$

In Stock, only 4 left!

0

3

Ariens 07349151

SHEAVE, ENGINE 4.50 OD x 1.127 ID (BLACK)

$131.99

$

Usually ships in 4-12 days

0

4

Ariens 05143700

CLUTCH, OGURA GT2.75-BB05

$329.99

$

Usually ships in 4-12 days

0

5

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

6

Ariens 05501222

SPACER, .450X2.00X.396

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 05501405

SPCR, CLUTCH

$35.99

$

Usually ships in 4-12 days

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

9

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.99

$

In Stock, Qty 10

0

10

Ariens 05902013

BLT, HEX .44-20X2.75 G8 ZCC NT

$4.99

$

In Stock, Qty 10

0

11

Ariens 06200433

BLT,RHSSN .500-13 X 2.75 G5 ZCC

$

$

Not available

12

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 3 left!

0

14

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0

15

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 8

0

19

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

20

Ariens 07200835

V-BELT, A -RAW EDGED LAMINATED

$64.99

$

In Stock, Qty 19

0

21

Ariens 08300513

SPRING, EXTENSION 1.0 X 6.65

$35.99

$

In Stock, Qty 20+

0

22

Ariens 09162351

BRKT, CLUTCH STOP (BLACK)

$13.99

$

Usually ships in 4-12 days

0

23

Ariens 09357700

SPACER .510 X .867 X 1.1485

$5.49

$

In Stock, Qty 20+

0
