994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Engine Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

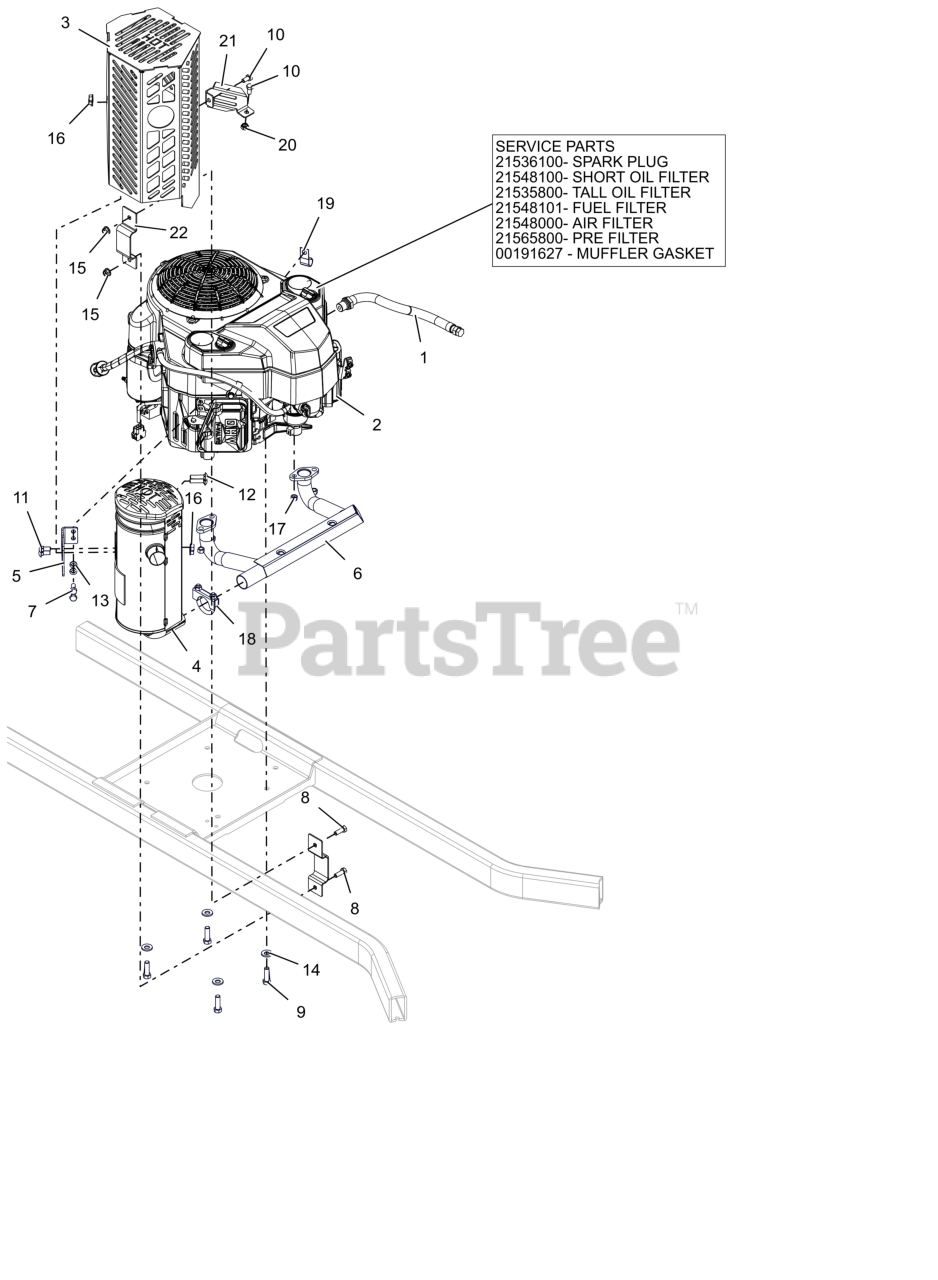

Engine Parts Diagram

  • Title

1

Ariens 07001730

HOSE, OIL DRAIN

$22.99

$

In Stock, only 2 left!

0

2

Ariens 08200921

ENGINE, KAWASAKI FS600V

$

$

Not available

2

Ariens 21536100

PLUG, SPARK

Note: Component Service Part

$10.99

$

In Stock, Qty 20+

0

2

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$20.99

$

Usually ships in 2-5 days

0

2

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

Usually ships in 2-5 days

0

2

Ariens 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$17.99

$

Usually ships in 4-12 days

0

2

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

2

Ariens 21565800

PRE FILTER- KAWASAKI FS

Note: Component Service Part

$7.49

$

In Stock, only 2 left!

0

2

Ariens 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$9.49

$

In Stock, Qty 16

0

3

Ariens 09691651

WLDMT, EXHAUST MUFFLER GUARD (BLACK)

$

$

Currently unavailable

4

Ariens 05192200

MUFFLER, PROSTANCE

$254.99

$

Usually ships in 4-12 days

0

5

Ariens 05192851

BRKT, MFLR MOUNT (BLACK)

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 05258900

MANIFOLD PRO STANCE 32-36" EXHAUST

$109.99

$

Usually ships in 4-12 days

0

7

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

9

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.99

$

In Stock, Qty 20+

0

10

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$3.49

$

In Stock, Qty 20+

0

12

Ariens 06200310

BLT, RHSSN.31-18X1.25 G5 ZCC

$2.99

$

In Stock, Qty 7

0

13

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

15

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.99

$

In Stock, Qty 11

0

18

Ariens 06900722

CLAMP, MUFFLER - 1.438

$

$

Not available

19

Ariens 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 07604800

NUT-WELD .31-18

$

$

Not available

21

Ariens 09691700

BRKT, EXHAUST MUFFLER GUARD

$55.99

$

Usually ships in 4-12 days

0

22

Ariens 09691701

CHASSIS, BRKT EXHAUST MUFFLER COVER

$

$

Currently unavailable
