994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Fuel System Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

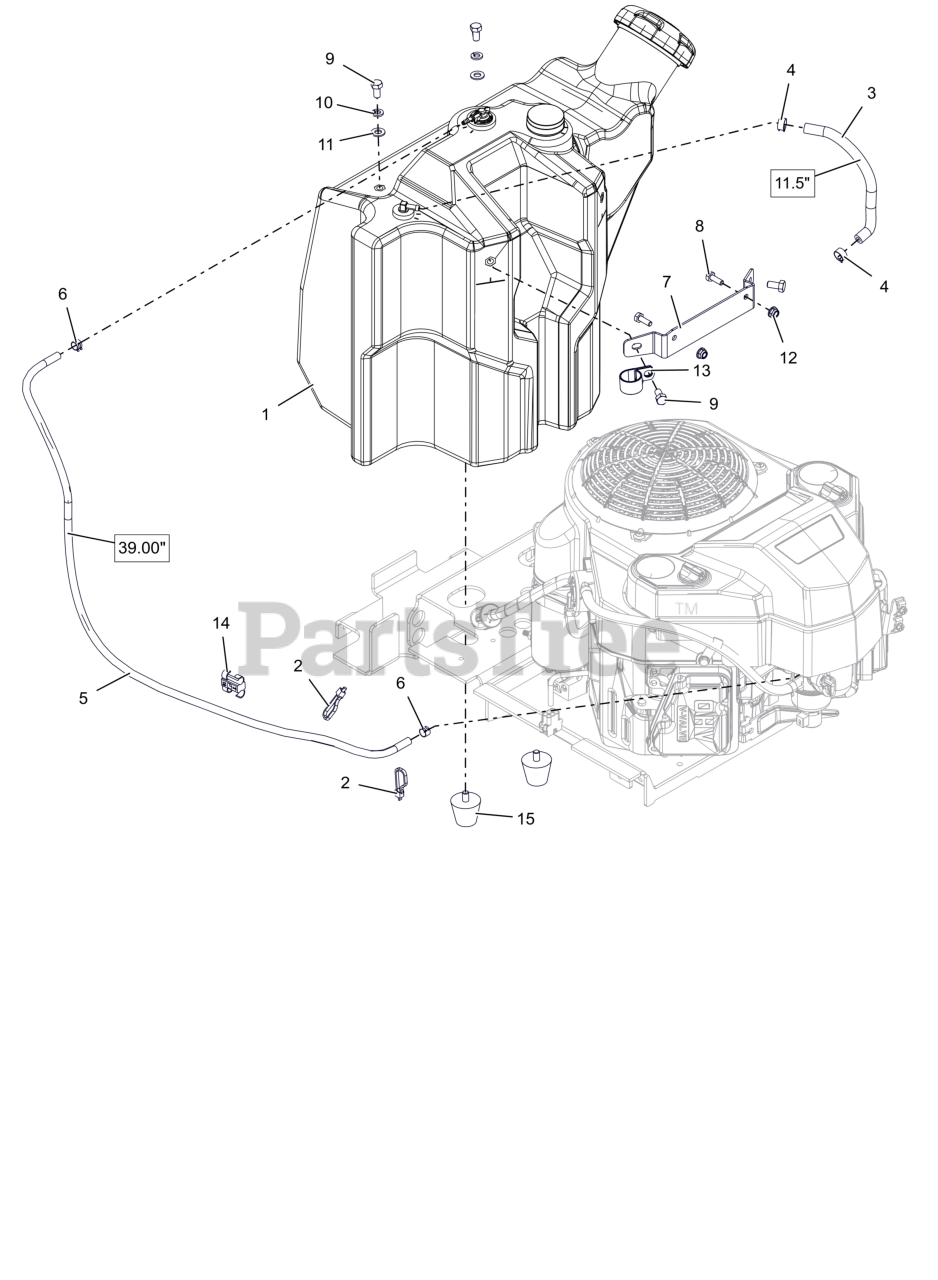

Fuel System Parts Diagram

  • Title

1

Ariens 05269100

ASM, 32-36" PROSTANCE FUEL TANK

$395.99

$

Usually ships in 4-12 days

0

2

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

3

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 10

0

6

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

Usually ships in 4-12 days

0

7

Ariens 05276951

BRKT, OVERFLOW MTG (BLACK)

$35.99

$

Usually ships in 4-12 days

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 13

0

9

Ariens 05901832

BLT, HEX .31-18X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.99

$

In Stock, Qty 8

0

13

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

14

Ariens 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 07500428

BUMPER, STUD MOUNTED CONE SHAPED

$11.99

$

Usually ships in 4-12 days

0
