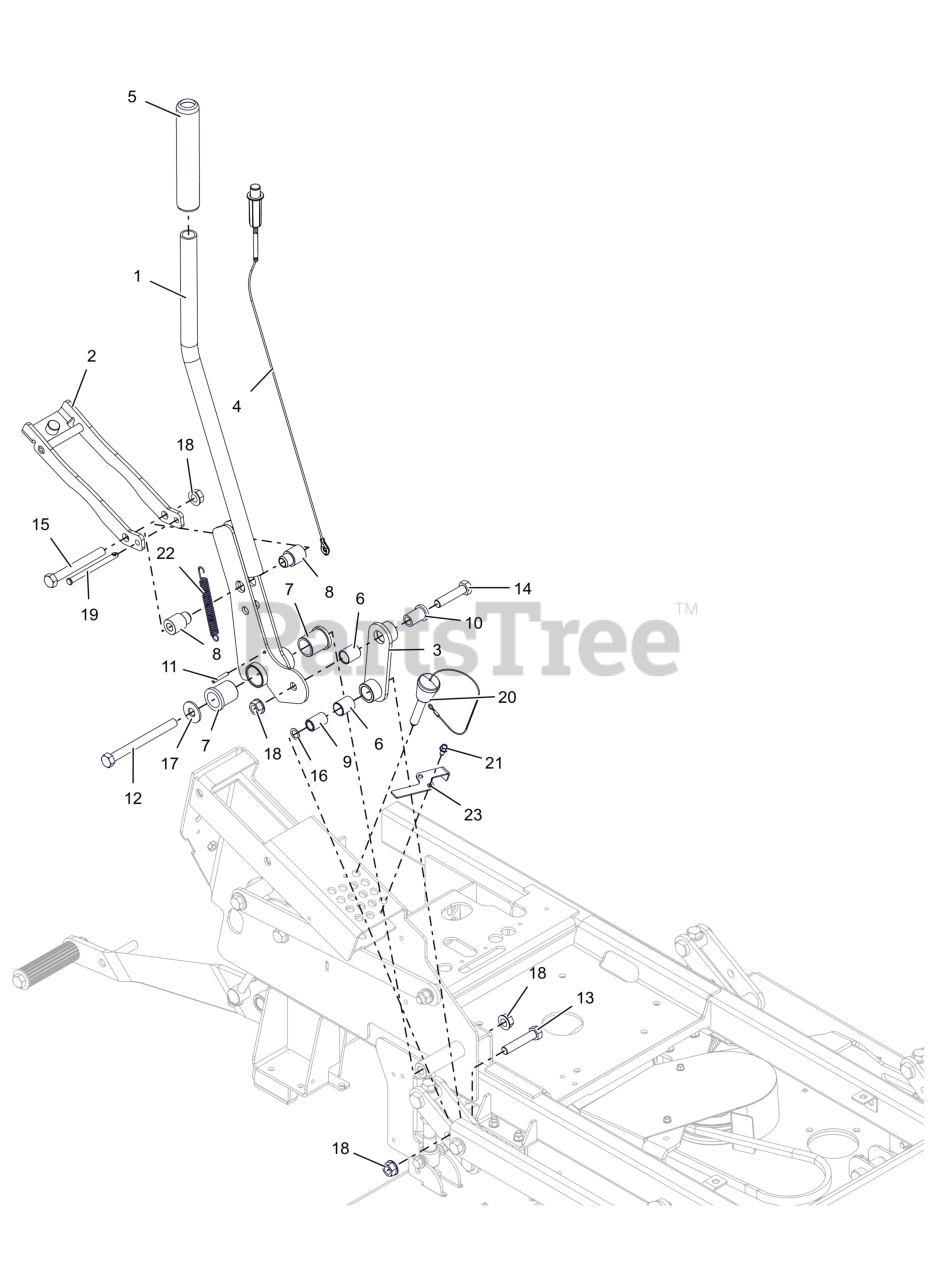

994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Height Of Cut Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

Height Of Cut Parts Diagram

  • Title

1

Ariens 05190551

WLDMT, HOC LEVER (BLACK)

$112.99

$

Usually ships in 4-12 days

0

2

Ariens 05193951

WLDMT, HOC BRACKET (BLACK)

$109.99

$

Usually ships in 4-12 days

0

3

Ariens 05198851

WLDMT, HOC LEVER LINK (BLACK)

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 06900718

CABLE, HOC PUSH CONTROL

$62.99

$

In Stock, only 1 left!

0

5

Ariens 05242500

GRIP, DECK LIFT

$15.99

$

Usually ships in 4-12 days

0

6

Ariens 05400729

BRG- .750 X .875 X 1.000

$10.99

$

Usually ships in 4-12 days

0

7

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

8

Ariens 05501333

BSHG-FLG.515X.750X1.544X1.000

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 05501338

SPCR, SLV .532 X .750 X 1.150

$23.99

$

Usually ships in 4-12 days

0

10

Ariens 05527200

BSHG-FLG .515X.746X1.290X1.000

$31.99

$

Usually ships in 4-12 days

0

11

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 16

0

12

Ariens 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$7.49

$

In Stock, only 2 left!

0

13

Ariens 05901712

BLT, HEX .50-13X2.50 G5 ZCC

$3.99

$

In Stock, only 3 left!

0

14

Ariens 05901835

BLT, HEX .50-13X2.25 G5 ZCC

$3.99

$

In Stock, Qty 5

0

15

Ariens 05901906

BLT, HEX .50-13X4.25 G5 ZCC

$5.49

$

In Stock, only 4 left!

0

16

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06800204

PIN-SLIC .3125 X 4.015 X 3.625

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 06800218

PIN- MAGNETIC .50X2.70

$25.99

$

In Stock, only 2 left!

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 08300516

SPRING,EXT,.061X.50X3.0

$15.99

$

In Stock, Qty 7

0

23

Ariens 09165251

BLOCK, HOC SELECTION (BLACK)

$26.99

$

Usually ships in 4-12 days

0
