994302 - Ariens Arrow 32" Stand-On Mower, Kawasaki FS (SN: 000101 & Above) Transmission - ZT3100 - 09159800 Parts Diagram

Arrow 32" Stand-On Mower, Kawasaki FS

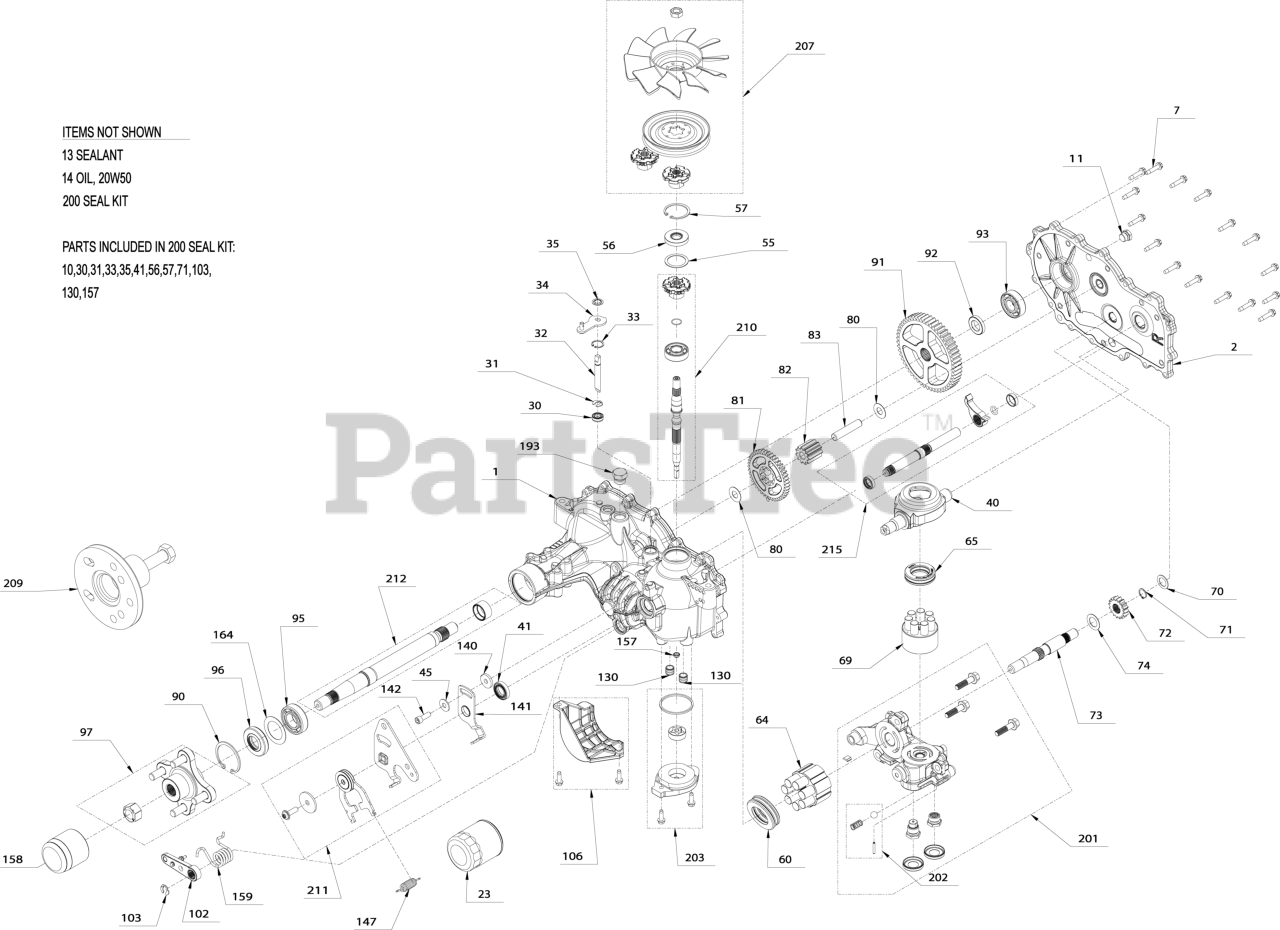

Transmission - ZT3100 - 09159800 Parts Diagram

  • Title

1

Ariens HG73069

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: Hydro-Gear Part HG73069

$

$

Currently unavailable

2

KIT, SIDE COVER, RH

Note: Hydro-Gear Part HG73095

$

$

Not available

7

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 3 left!

0

11

Ariens 21500049

PLUG, EXTERNAL HEX VENT 9/16-18

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

14

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Approximate Capacity 72 oz

$14.99

$

In Stock, Qty 20+

0

14

Ariens 00058100

FLUID, HYDRO 20W50 QT

Note: Optional for Residential Use 72 oz

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$42.99

$

Usually ships in 4-12 days

0

30

Ariens 21500013

SEAL, LIP .375 X .75 X .25

$5.49

$

In Stock, only 3 left!

0

31

Ariens 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS .375 x 2.88

Note: Hydro-Gear Part HG52136

$

$

Not available

33

Ariens 21543846

RING, RET .750

$

$

Not available

34

Ariens 21544046

ARM, BYPASS

$16.99

$

Usually ships in 4-12 days

0

35

Ariens 21543848

RING, RTNG .

$3.99

$

In Stock, only 2 left!

0

40

Ariens 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Ariens 21543809

SEAL, LIP 18X32X7

$9.99

$

Usually ships in 4-12 days

0

45

Ariens 08611200

WASHER

$4.49

$

Usually ships in 4-12 days

0

55

Ariens 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 2 left!

0

56

Ariens 21543816

SEAL, LIP 17X40X7

$15.99

$

Usually ships in 4-12 days

0

57

Ariens 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

60

Ariens 21548902

HG THRUST BEARING (51462)

$32.99

$

Usually ships in 4-12 days

0

64

Ariens 21548904

HG 16CC CYLINDER BLOCK (71579)

$78.99

$

In Stock, only 2 left!

0

65

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

69

Ariens 21543921

ASSY, BLOCK 7 PISTON

$145.99

$

Usually ships in 4-12 days

0

70

Ariens 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

71

Ariens 21543704

RING, RET 62 EXT

$1.99

$

Usually ships in 4-12 days

0

72

Ariens HG52344

GEAR, 16T (STEEL)

Note: Hydro-Gear Part HG52344

$

$

Currently unavailable

73

SHAFT, MOTOR

Note: Hydro-Gear Part HG52150

$

$

Not available

74

Ariens 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Ariens 21543724

WASHER .5X1.0X.032

$

$

Not available

81

Ariens HG52148

GEAR, 43T

Note: Hydro-Gear Part HG52148

$

$

Currently unavailable

82

GEAR, 11T (STEEL)

Note: Hydro-Gear Part HG52586

$

$

Not available

83

Ariens 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Ariens 08616500

RING, RETAINING

$9.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

Note: Hydro-Gear Part HG52108

$

$

Not available

92

SPACER, .750 X 1.320 X .257

Note: Hydro-Gear Part HG53336

$

$

Not available

93

Ariens 21500082

KIT, BEARING

$23.99

$

Usually ships in 4-12 days

0

95

Ariens 08614000

BEARING, BALL 25.4 X 52 X 15

$25.99

$

In Stock, only 1 left!

0

96

Ariens 08614300

SEAL, LIP

$18.99

$

Usually ships in 4-12 days

0

97

Ariens 21544061

KIT, HUB 4 BOLT

$96.99

$

Usually ships in 4-12 days

0

102

Ariens 21544037

BRAKE ARM HG 71957

$26.99

$

Usually ships in 4-12 days

0

103

Ariens 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$6.49

$

In Stock, only 2 left!

0

106

KIT, FILTER GUARD

Note: Hydro-Gear Part HG73041

$

$

Not available

130

TUBE, CHARGE TRIPLE O-RING

Note: Hydro-Gear Part HG54501

$

$

Not available

140

Ariens 21543870

SPACER

$

$

Not available

141

Ariens 21543866

ARM, NEUTRAL RIGHT

$26.99

$

Usually ships in 4-12 days

0

142

Ariens 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Ariens 21544001

SPRING, HYDROGEAR P/N 51833

$15.99

$

Usually ships in 4-12 days

0

157

KIT, GEROTOR SEAL

Note: Hydro-Gear Part HG72291

$

$

Not available

158

Ariens 21500038

CAP, AXLE

$21.99

$

Usually ships in 4-12 days

0

159

Ariens 21544052

SPRING, TORSION CCW

$11.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear Part HG53514

$

$

Not available

193

PLUG, 3/4-16

Note: Hydro-Gear Part HG54974

$

$

Not available

200

Ariens 21543999

KIT, SEAL

Note: Hydro-Gear Part HG73107

$79.99

$

Usually ships in 4-12 days

0

201

Ariens 21500075

KIT, CENTER SECTION RH, CHARGE

$329.99

$

Usually ships in 4-12 days

0

202

KIT, CHARGE RELIEF

Note: Hydro-Gear Part HG71436

$

$

Not available

203

Ariens 21544060

KIT, CHARGE

$98.99

$

In Stock, only 4 left!

0

207

Ariens HG72974

KIT, FAN / PULLEY

Note: Hydro-Gear Part HG72974

$

$

Currently unavailable

209

Ariens 21544008

HUB PULLER 5 BLT HYDGEAR 72320

Note: Service Tool

$461.99

$

Usually ships in 4-12 days

0

210

KIT, INPUT SHAFT

Note: Hydro-Gear Part HG73047

$

$

Not available

211

KIT, RTN BIDIRECTIONAL

Note: Hydro-Gear Part HG71588

$

$

Not available

212

Ariens HG71569

KIT SHAFT AXLE

Note: Hydro-Gear Part HG71569

$

$

Currently unavailable

215

KIT, OUTBOARD, RH ROT A / LH ROT B

Note: Hydro-Gear Part HG73118

$

$

Not available

$

$

Not available
